ASHAPOWER NEON-30 User Manual

Multi voltage range solar mppt charge controller
Hide thumbs Also See for NEON-30:
Table of Contents

Advertisement

Quick Links

Download this manual
MULTI VOLTAGE RANGE
MULTI VOLTAGE RANGE
SOLAR MPPT CHARGE CONTROLLER
SOLAR MPPT CHARGE CONTROLLER
Vers.3.3
NEON -30
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEON-30 and is the answer not in the manual?

Questions and answers

Related Manuals for ASHAPOWER NEON-30

Summary of Contents for ASHAPOWER NEON-30

  • Page 1 Vers.3.3 NEON -30 MULTI VOLTAGE RANGE MULTI VOLTAGE RANGE SOLAR MPPT CHARGE CONTROLLER SOLAR MPPT CHARGE CONTROLLER USER MANUAL...

  • Page 2: Salient Features

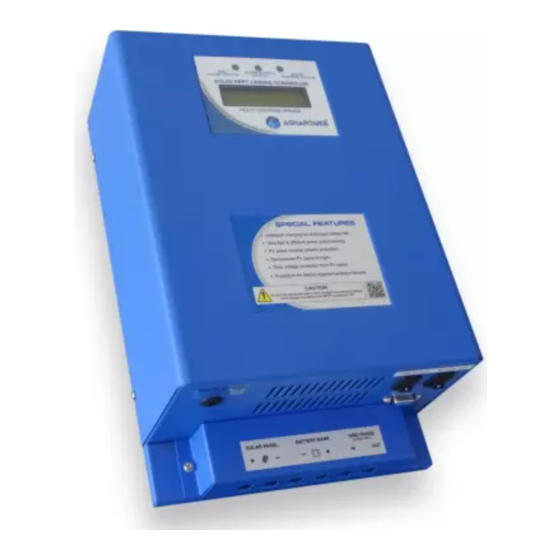

    NEON -30 SOLAR MPPT CHARGE CONTROLLER ASHAPOWER® NEON-30 Solar MPPT Charge Controllers are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 1 Battery(12V) up to a battery bank of 4 batteries (48V) in series.
  • Page 3 NEON -30 SPECIFICATIONS Max PV Array Open Circuit Voltage (Voc) 140V Max PV Array Watts Applicable 1600W 12/24/36/48 V Nominal Battery Voltage (Auto Setting) Maximum Charging Current 30A (Configurable) Maximum Tracking Efficiency 98.9% Standby Power Consumption <1.5W Overload Protection ✔ Over Charge Protection ✔...

  • Page 4: Know Your Device

    KNOW YOUR DEVICE INDICATOR BLINKING BLINKING BLUE BATTERY LOW BATTERY LOW LOAD IS ON LOAD IS ON GRID WARNING TO WARNING TO SOLAR/GRID SOLAR POWER POWER AVOID AVOID HEAVY POWER STATUS LOADS PV PANEL PV PANEL VOLTAGE IS BATTERY BATTERY GREEN VOLTAGE IS LOWER THAN...
  • Page 5 INSTALLATION & OPERATION 1.PV Panel Grouping Using required Solar MC4 connectors and parallel connectors, group the PV panel array according to the recommended grouping chart provided. Good quality weather proof solar cables must be used. 2.Battery Bank Setup If more than one battery is used, Connect the interlinking cables (16 sq.mm minimum) tightly and check each battery separately for specific gravity and backup.
  • Page 6 RECOMMENDED GROUPING OF PV PANELS  Recommended PV Panel Input voltage for maximum MPPT performance. Examples for Grouping of PV Panels Max.PV Panel Max.PV Panels Battery Bank in Series Voltage Range Applicable Volt (Voc) in Watts 1) 21V voc(100w panel)x4panel in series=84Voc=400w 30-100V 400W...
  • Page 7 CONNECTION DIAGRAM...
  • Page 8 CONNECTION DIAGRAM...
  • Page 9 CONNECTION DIAGRAM...
  • Page 10 CONNECTION DIAGRAM...

  • Page 11: Troubleshooting

    TROUBLE SHOOTING ERROR DESCRIPTION SOLUTION CODE PV PANEL VOLTAGE IS NOT IN THE SPECIFIED LIMIT. PV PANEL VOLTAGE CHECK FOR PV PANEL GROUPING. REFER PV PANEL ERROR GROUPING MANUAL PROVIDED. CONNECTED BATTERY BANK VOLTAGE IS NOT IN BATTERY BANK VOLTAGE THE SPECIFIED LIMIT.

  • Page 12: Setup Mode

    SETUPMODE Note: Before changing the default settings values of the device, ensure the maximum ampere ● and voltage ratings applicable for your battery type (SMF,LEAD ACID etc) and brand. Blind settings may cause severe damage to the batteries and charge controller. Default values given are for lead acid batteries.

  • Page 13: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS 1) Solar panels should be grouped in such a way that the maximum Open Circuit Voltage (Voc) of the panels connected in series should not exceed the Maximum PV panel voltage recommended. 2) Safety precautions must be taken while grouping and connecting PV panels to the charge controller with high Voc input.
  • Page 14 contact@ashapower.in...
