Lilie GreyYellow LP1801 Manual

The bilge pump is equiped with an automatic level switch. When the automatic level switch registers water ingress,
the pump starts to work until the wohle water is pumped out. Then the level switch turns off the bilge pump. An
integrated check valve prevents the backflow of the drained water. Two dirt strainers protect the bilge pump against
heavy contaminations and malfunctions.

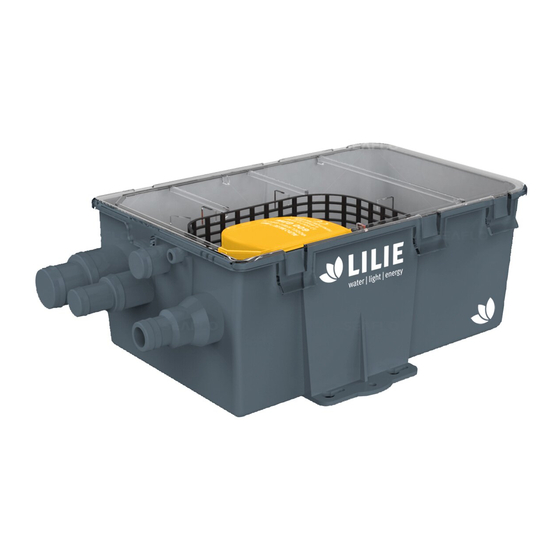

The tank capacity is 4 liter. The tank consists of plastic with a tight transparent cap, which can be easily opened and
closed. The housing provides an opportunity to use various inputs (19/25mm and 30/40mm) for the application of
various supply hoses. At the output you can finde a discharge socket, which could be used for various widths
(19/25mm).
A vent connection and a cable bushing ensure an easy starting and reliable operation.
 Showers
 Fresh- and wastewater tanks
power supply
power consumption
maximum capacity
external dimensions
weight
inlets
outlets
tank capacity grey water
inlet 2: 19/25mm
inlet 3: 19mm
vent
connection
10mm
Outlet:
19/25mm
Lilie GmbH & Co. KG  Heinrich-Hertz-Str. 30  D-74354 Besigheim  Fon +49 (0)7143-9623.0  Fax +49 (0)7143-9623.23
Manual
LILIE-pumpstation for wastewater GreyYellow #LP1801
GENERAL INFORMATION
RANGE OF APPLICATION
 washbasins
 sinks
TECHNICAL DETAILS
12V (10 – 16V)
max: 2,5A
Max: 45l/min
334x215x112mm
1,2kg
19/25mm and 30/40mm
19/25mm
4 Liter
Inlet 1: 30/40mm
