Lilie Smart Series Manual

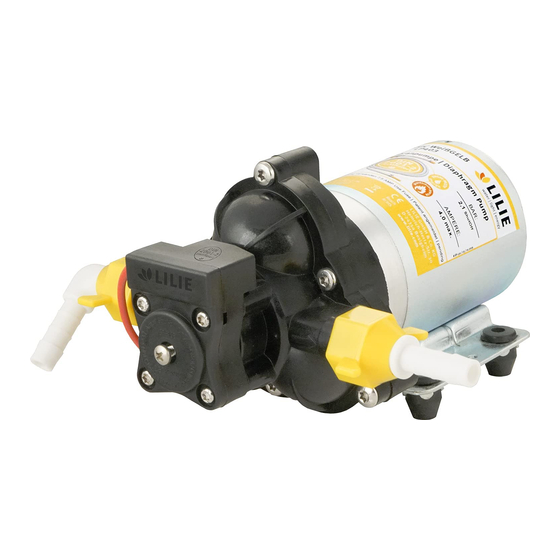

5-chamber-diaphragm-fresh water pump with electronic regulation, variable adjustment of the pump capacity and high performance. The
special construction results in a smooth and steady pumping, without splashing or pulsation. The LILIE-pressure-sensor-diaphragm
pump makes it possible for you to enjoy on the road a comfortable supply of fresh water, just like at home.
The water pressure is constantly scanned and regulated by the integrated Smart-Sensor. Its signals are then transmitted to the electronics
at the foot of the pump, which is controlled by a microprocessor. The electronics itself doses the amount of water exactly as demanded, by
regulating the engine speed and flow rate. The pump starts running very quietly, does not splash, and delivers steadily without unpleasant
temperature fluctuation.
•
•
•
•
•
•
•
•
For a steady and strong pressure, without splashing and unpleasant temperature fluctuation and a silent start-up:
The Smart-Series and "Whisper Controller" are controlled by a microprocessor and reduce the hysteresis* to below 0, 1 bar. This results in a
previously unknown and precise pumping as demanded, without loud start-up noises, splashing or abrupt fluctuations. This technically
demanding solution ensures low power consumption, so that no other electronic devices can interfere with the regulation of the hysteresis
in the vehicles.
*Hysteresis is the range within which no alternation of the condition takes place. A pump without Smart-Sensor or "Whisper Controller" e.g.
switches on at 0.8 bar and then continues to run, until at a hysteresis of 0, 6 bar, the cut-off pressure of 1,4 bar is reached. With pressure
pumps, pressure consequently varies permanently
within the hysteresis of the pressure switch, in our example between 0,8 and 1,4 bar.
Status as of 18.01.2018
MANUAL
LILIE Smart Serie
Integrated Smart-Sensor (= electronic control for pressure dependent regulation of rotation speed).
Quick-Fittings for even faster assembling.
Electronic control by a microprocessor.
Entirely enclosed for protection against humidity.
Large heat sink.
Under-/ overvoltage protection.
5-chamber design
Highest pressure and reflux prevention up to 20 bar.
LILIE GmbH & Co. KG Heinrich-Hertz Straße-30 D-74354 Besigheim Germany
Tel. +49 (0)7143 9623-0 Fax +49 (0)7143 9623-23 info@lilie.com
www.lilie.com

SENSOR CONTROL

OUR TIP:
© Lilie GmbH & Co. KG
1
Subject to technical modifications
