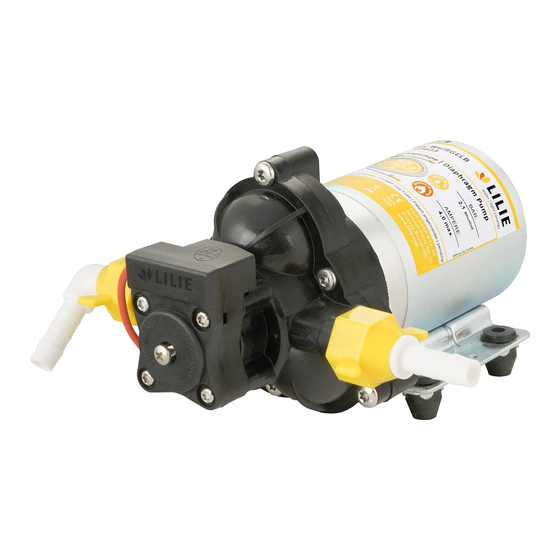

Lilie SMART Series Manual

Congratulations on your purchase! Thank you for buying a LILIE pump.
Pumps are the heart of any camper van and caravan water installation. The long-life diaphragm pumps quickly build up
pressure in the closed water system and thus move the water through the pipes. Our pumps are manufactured by our
partners according to our development specifications, which are based on over 30 years of experience.
In this manual, you'll find all the information you'll need to install and reliably operate your LILIE pump.
All of the manual's contents apply to the following pump series:
Fresh water pumps
CLASSICSERIE™
SOFTSERIE®
Content
1 Installation situation and use ......................................................................................................................... 1
2 Installation ................................................................................................................................................... 2
3 Individual settings on the pump ..................................................................................................................... 4
4 Start-up ........................................................................................................................................................ 4
5 Disinfection .................................................................................................................................................. 4
6 Maintenance ................................................................................................................................................. 5
7 Winterproofing the pump ............................................................................................................................... 5
8 Warranty ....................................................................................................................................................... 6
9 Spare parts ................................................................................................................................................... 6
1

Installation situation and use

You'll get the most pleasure and greatest benefit out of the pump if you use it as a complete system that has been
specifically developed and optimised for this area of use as opposed to individually - or supplemented by individual
additional parts. We recommend that you use our LILIE WeißGELB® drinking water system for this purpose. In our
catalogue (available at www.lilie.com), you'll find suitable connection and installation material for your LILIE pump in
the 'Water tuning' section.
The pumps are designed for use in the dry interior of a camper van. They are not watertight or resistant to splash water
or acids.
The pumps described in this manual are designed for intermittent operation and are not suitable for continuous
operation. The switch-on duration and length of the intervals can be found in the complete overview of the pumps in our
current catalogue. Our pumps for the caravanning sector can run for 20 minutes at a time without any problems, after
which a longer break is necessary.
Lilie GmbH & Co. KG ■ Heinrich-Hertz-Str. 30 ■ 74354 Besigheim, Germany ■ Tel. +49 (0)7143 9623-0 ■ Fax +49 (0)7143 9623-23
Manual
CLASSICSERIE™ WeißGELB®, SOFTSERIE® WeißGELB®
CLASSICSERIE™, SOFTSERIE®, SMARTSERIE™
Drinking water pumps according to DIN 2001-2
CLASSICSERIE™ WeißGELB®
SOFTSERIE® WeißGELB®
SMARTSERIE™
