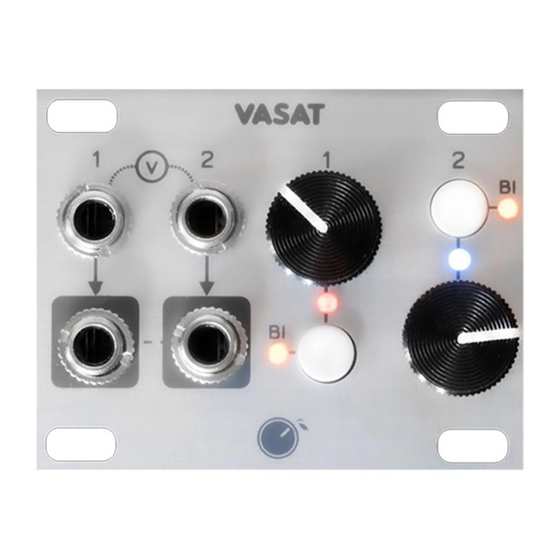

PLUM AUDIO – VASAT
Thanks for purchasing VASAT from Plum Audio!
VASAT is a dual channel expandable Mixer / Attenuverter / Offset and precision voltage source with
variable range.
Features:
VASAT can process two channels of audio or CV.
Polarity push buttons can configure knobs to work as attenuators or as attenuverters.
Unconnected inputs are normalized to an internal precision voltage source which can produce
either a +2.5V, +5V, +7.5V or +10V.
VASAT outputs are limited to -/+ 10V to protect against clipping.
VASAT outputs are daisy-chained allowing channels to be mixed.
VASAT is expandable – Several units can be chained together to get a bigger mixer.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VASAT and is the answer not in the manual?

Questions and answers

Summary of Contents for Plum Audio VASAT

  • Page 1 PLUM AUDIO – VASAT Thanks for purchasing VASAT from Plum Audio! VASAT is a dual channel expandable Mixer / Attenuverter / Offset and precision voltage source with variable range. Features: • VASAT can process two channels of audio or CV.
  • Page 2 The red stripe of the ribbon cable (-12V side) must be oriented to the same side as the “Red Stripe” marking on the header. Use the 4 supplied screws to mount VASAT to a free 10HP space in the 1U row of your Eurorack ●...

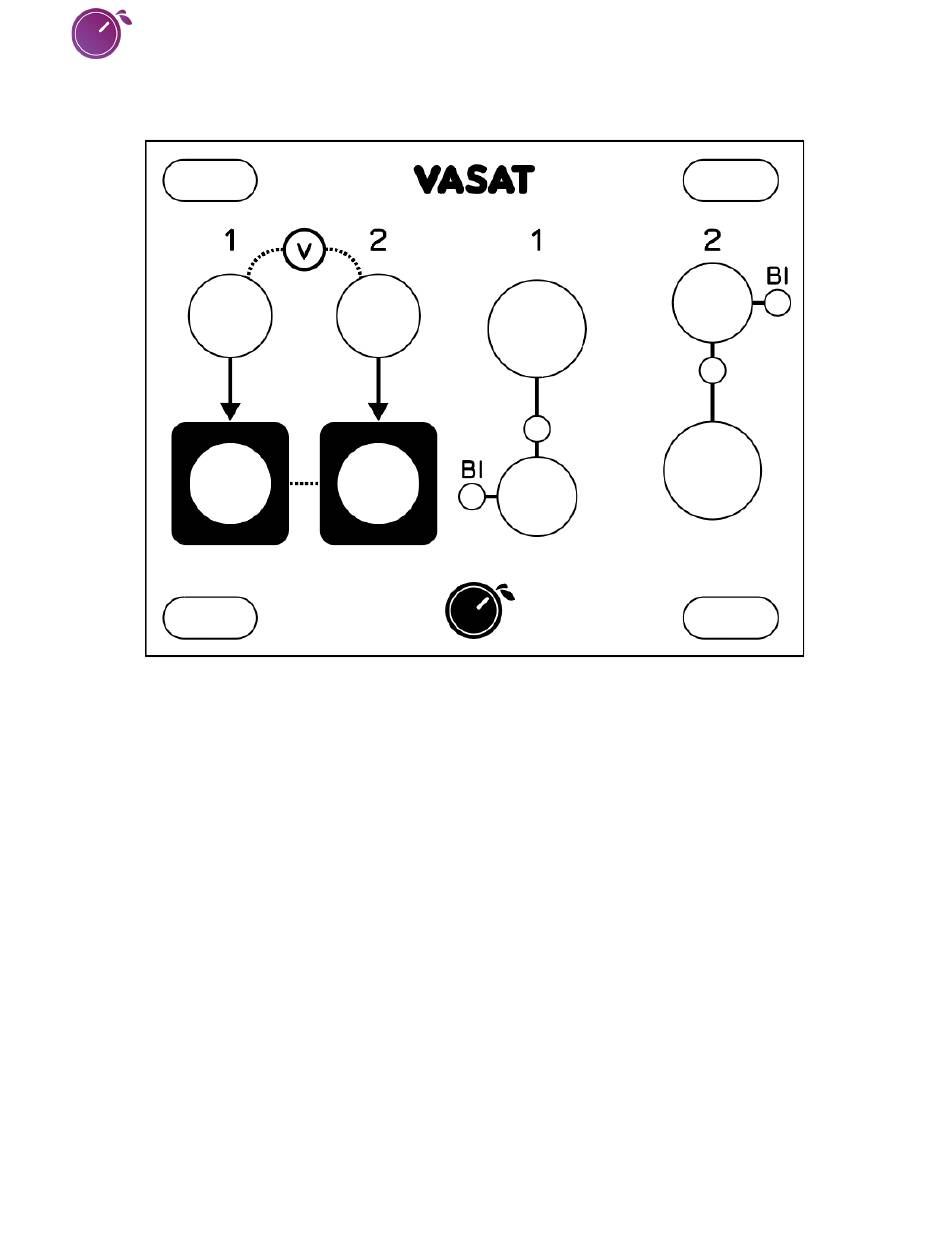

  • Page 3 Interface: Inputs and Outputs: VASAT I/Os of both channels are located on the left side of the module. 1. Audio or CV inputs, unconnected inputs are normalized to the internal voltage source. 2. Outputs, unconnected output is summed at the next output.
  • Page 4 PLUM AUDIO – VASAT Voltage source configuration: On the back of VASAT there are 2 small dip switches, use pencil or other sharp tool to set the desired amount of voltage as shown in the drawing below: Expand your VASAT with more units: You can chain several units of VASAT to get bigger mixer, each unit will add 2 more channels.
