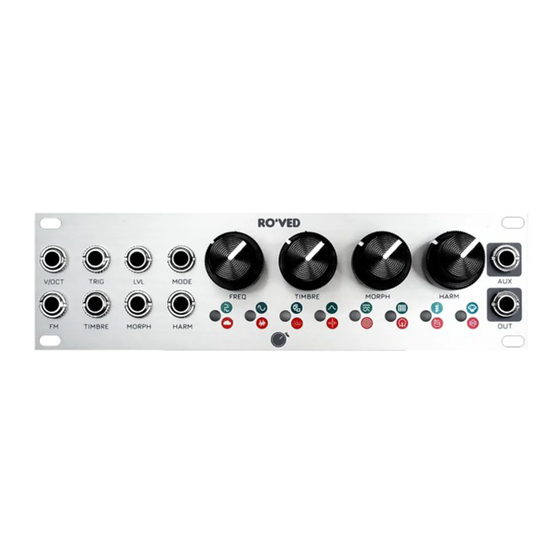

PLUM AUDIO – RO'VED

Thanks for purchasing RO'VED from Plum Audio!

RO'VED is a 1U MACRO OSCILLATOR based on the legendary "Plaits" by Mutable Instruments.

We are very proud to present an improved interface which provides the best of the 1U format, fueled

by custom firmware which makes using the interface natural and convenient.

This document is a module specific addendum that reviews the interface and the custom firmware

features of RO'VED. If you wish to read more about the synthesis engines, please refer to the manual of

Plaits on the official Mutable Instruments website.

Installation Instructions:

RO'VED is made according to the Intellijel 1U standard and should only be installed in cases that

●

support the Intellijel 1U standard.

Before connecting RO'VED, make sure to turn off your case's power supply.

●

Connect one side of the supplied ribbon cable to the power header of RO'VED and the other

●

side to your case's power bus board.

The red stripe of the ribbon cable (-12V side) must be oriented to the same side as the "Red

Stripe" marking on the header.

Use the 4 supplied screws to mount RO'VED to a free 28HP space in the 1U row of your

●

Eurorack case.

Power Supply Requirements:

RO'VED requires a -12V/+12V power supply (2x5 pin connector).

●

RO'VED draws 55mA from the +12V rail and 8mA from the -12V rail.

●

Firmware version: 1.1

Need help?

Do you have a question about the RO VED and is the answer not in the manual?

Page 1 PLUM AUDIO – RO’VED Firmware version: 1.1 Thanks for purchasing RO’VED from Plum Audio! RO'VED is a 1U MACRO OSCILLATOR based on the legendary "Plaits" by Mutable Instruments. We are very proud to present an improved interface which provides the best of the 1U format, fueled by custom firmware which makes using the interface natural and convenient.

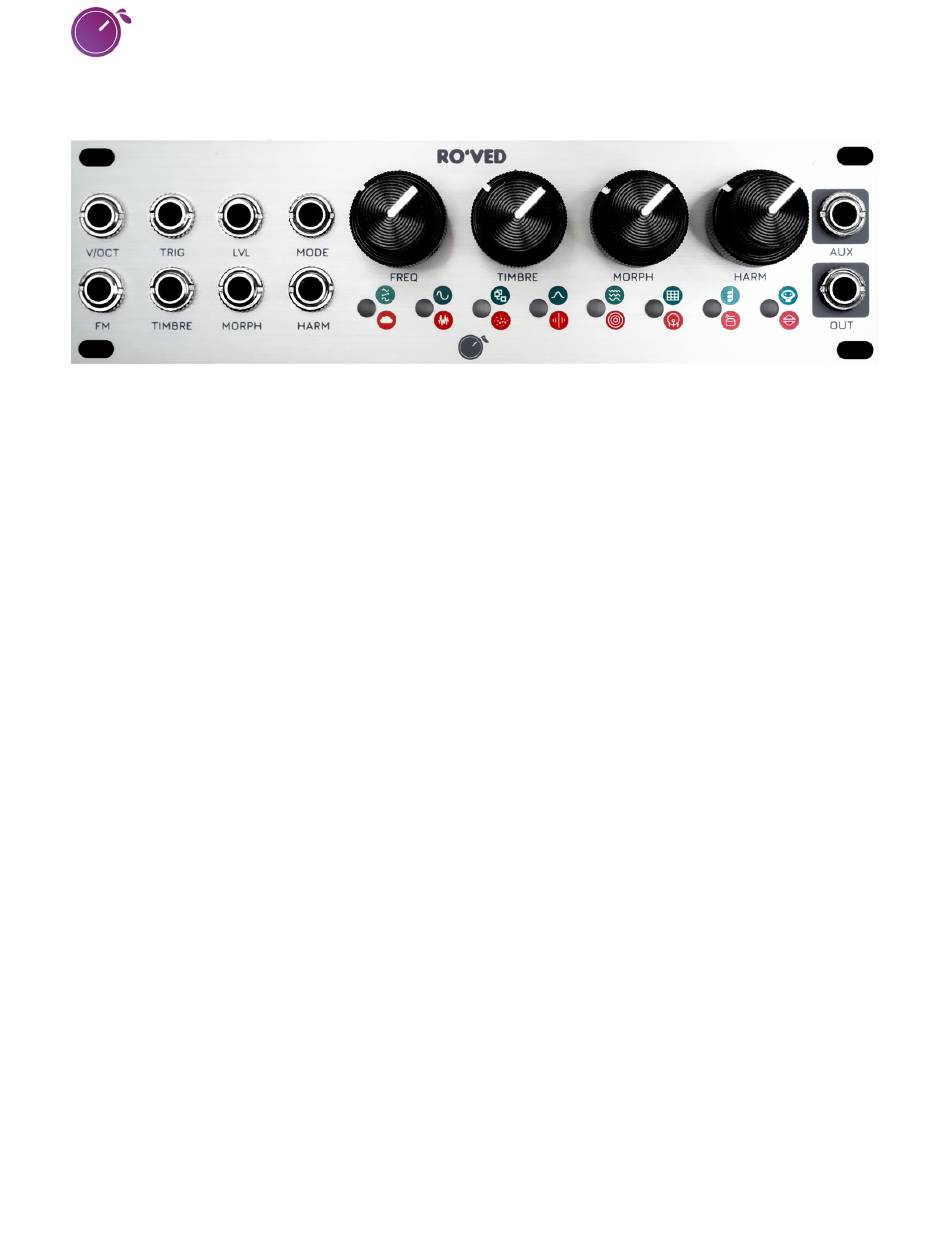

Page 2 PLUM AUDIO – RO’VED Firmware version: 1.1 RO’VED INTERFACE - BASIC USAGE: RO’VED is our first module to introduce "CLICKKNOBS"—Plum Audio’s custom dual concentric knobs with push buttons that are used as RO’VED’s main interface component. • Turn each of the upper knobs to change the main parameters.
Page 3 PLUM AUDIO – RO’VED Firmware version: 1.1 FIRMWARE SETTINGS MENU: The settings menu allows you to configure the behavior of Frequency Lock, assign LEVEL and MODE CV inputs and to assign different chords to the chord engine. To enter or exit the menu, press FREQ & TIMBRE simultaneously.
Page 4 To access Firmware Update Mode, power your modular system on whilst holding the TIMBRE knob pressed and play the firmware WAV file into the MODE input. For more details about the firmware update procedure, please follow the instructions on Plum Audio website: https://www.plum-audio.com/roved-firmware...
