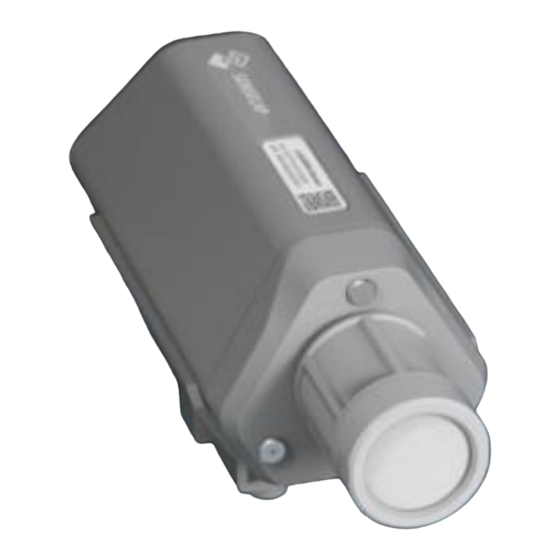

SENSECAP S210 Series How To Connect
Hide thumbs
Also See for S210 Series:
- User manual (69 pages) ,
- User manual (62 pages) ,
- User manual (53 pages)
Subscribe to Our Youtube Channel
Related Manuals for SENSECAP S210 Series
Summary of Contents for SENSECAP S210 Series
- Page 1 T H E N E W G E N E R A T I O N L O R A W A N S E N S O R S O F S E N S E C A P How to connect S210X Sensors to The Things Network Version: v1.0.1...
-
Page 2: Table Of Contents
1.2 Connect to The Things Network ................3 1.2.1 Create a New Account ....................... 3 1.2.2 Setup the Sensor ....................... 3 1.2.3 Set Frequency of Sensor via SenseCAP Mate App ............4 1.3 TTN configuration ....................6 1.3.1 Gateway Registration on TTN ................... 6 1.3.2 Create the Application ....................... -
Page 3: Connect To The Things Network
IoT into the Wild Connect to The Things Network 1.1 The Things Network The Things Stack is an enterprise grade LoRaWAN network server, built on an open- source core. The Things Stack allows you to build and manage LoRaWAN networks on your own hardware or in the cloud. -
Page 4: Connect To The Things Network
1.2.2 Setup the Sensor 1) Open the SenseCAP Mate App 2) Press button and hold for 3 seconds, the LED will flash at 1s frequency. 3) Please click the “Setup” button to turn on Bluetooth and click “Scan” to start scanning the sensor's Bluetooth. -
Page 5: Set Frequency Of Sensor Via Sensecap Mate App
IoT into the Wild 1.2.3 Set Frequency of Sensor via SenseCAP Mate App Set the corresponding frequency band based on the frequency band of the gateway. 1) Click the “Setting” and select the platform is “The Things Network”. 2) Select the Frequency Plan, if the gateway is US915, set the sensor to US915. - Page 6 IoT into the Wild 3) Click the “Send” button, send the setting to the sensor for it to take effect. 4) Click the “Home” button, the App will disconnect the Bluetooth connection. Then, the sensor will reboot. 5) When the device is disconnected from Bluetooth, the LED lights up for 5 seconds and then flashes as a breathing light.
-
Page 7: Ttn Configuration
IoT into the Wild 1.3 TTN configuration 1.3.1 Gateway Registration on TTN Create a Gateway on the TTN console based on actual information. 1.3.2 Create the Application Create an application on your TTN console. 1.4 Add Sensor to TTN Console 1) Application →... - Page 8 IoT into the Wild 2) Select the end device in the LoRaWAN Device Repository. And then based the brand, configure items like the below.
- Page 9 IoT into the Wild ① End device brand: SenseCAP ② Model: Select your sensor. (If not, use manual add) ③ Hardware / Firmware Version: Usually choose the latest ④ Frequency plan: Get it from SenseCAP Mate App Sensor Common Description...
- Page 10 IoT into the Wild For Helium network, please refer to: https://docs.helium.com/lorawan-on-helium/frequency-plans 3) Set ‘Provisioning information’ ⑤ JoinEUI: which means the APP EUI, you can get it from SenseCAP Mate App. ⑥ Device EUI/ App Key: Get it from SenseCAP Mate App.
-
Page 11: Check Data On Ttn Console
IoT into the Wild ⑦ Register end device. And then click the “Register end device” to save the info. ⑧ After joining the network successfully, LED flashes fast for 2s. 1.5 Check Data on TTN Console On the Data page, data package is uploaded. For the format of the payload, refer to the section of Payload Decoding. - Page 12 IoT into the Wild...
-
Page 13: Trouble Shooting
Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc.) and send a mail to: sensecap@seeed.cc 2.2 Document Version Version...
