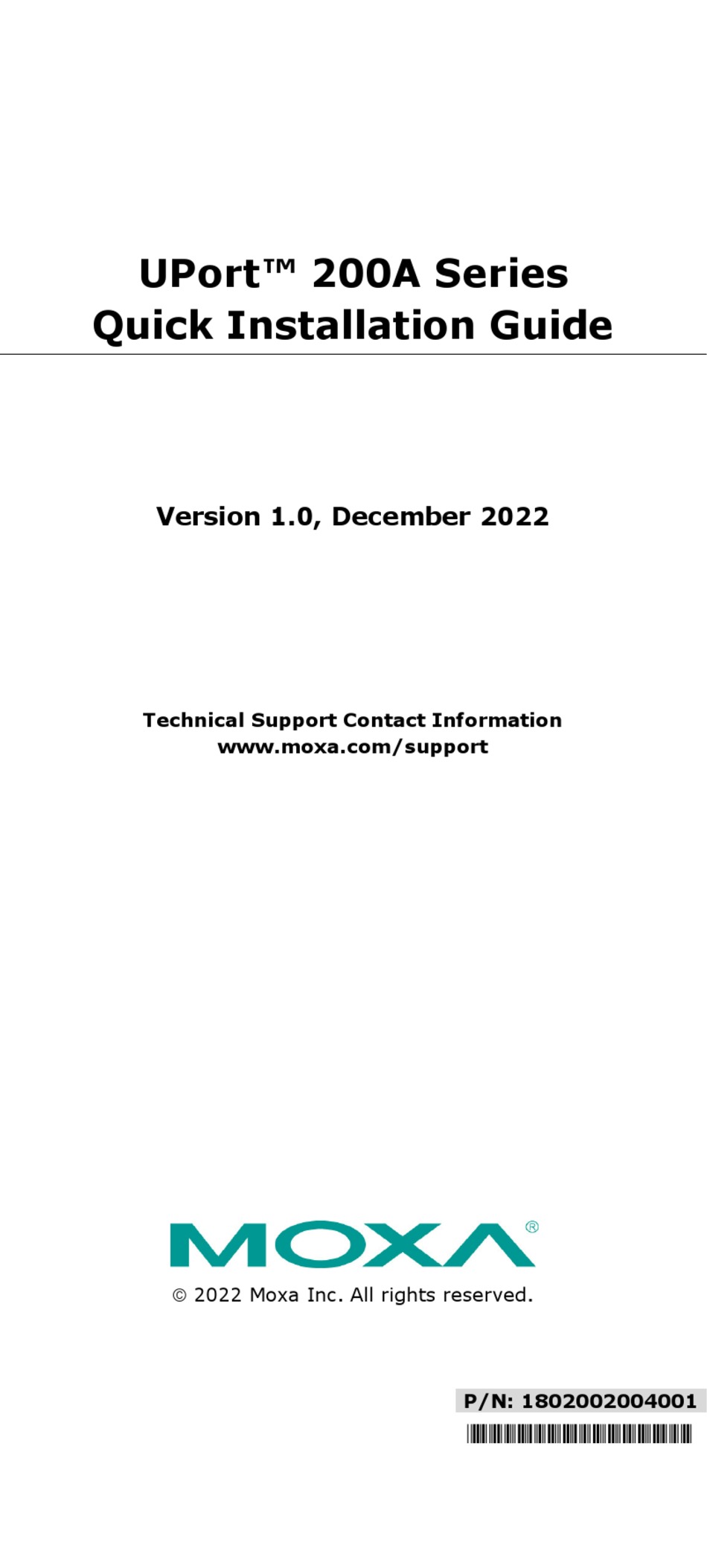

- Page 1 UPort™ 200A Series Quick Installation Guide Version 1.0, December 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802002004001 *1802002004001*...
-
Page 2: Package Checklist
Overview The UPort™ 200A Series general-purpose USB 3.2 Gen 1 hubs expand 1 USB port to 4 or 7 ports. The hubs provide true USB 3.2 SuperSpeed 5 Gbps data transmission through each port and are USB-IF compatible products. Besides providing ESD level 4 protection from static damage and surge protection level 2 for power input, the UPort™... -
Page 3: Hardware Introduction

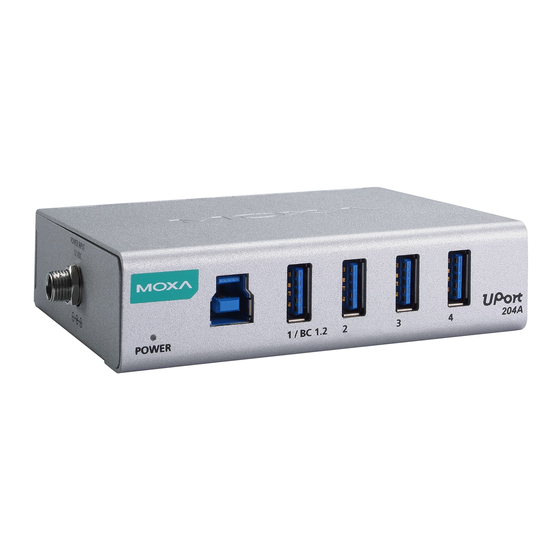

Hardware Introduction An example of the UPort™ 204A front panel: Front View Side View - Power Input 12 VDC Installation Guide Power Input Supply The UPort 200A comes with self-power, minimum required 12 V input, 4.5 A @ 12 VDC minimum for the UPort 207A models, 2.65 A @ 12 VDC minimum for the UPort 204A models. -
Page 4: Wall Mounting
Wall Mounting The UPort™ 200A Series comes with two options of wall mounting, and both have metal attachment plates to allow installation on a wall. Option 1 – Bottom-mounting with WK-UP200A-BOT-SI UPort 207A Unit: mm (inches) UPort 204A The mounting kit is 2 mm in height, and the two centers of the mounting kit on each plate is 163 mm (UPort 207A) and 123 mm (UPort 204A) - Page 5 The wall screws should use the M3 type, and the length should no less than 7 mm. Option 2 – Rear-mounting with WK-UP200A-BAK-SI UPort 207A Unit: mm (inches) UPort 204A First, attach the brackets at the rear of the UPort™ 200A with the screws, as the circles show.
-
Page 6: Din-Rail Mounting
UPort 207A Unit: mm (inches) UPort 204A DIN-Rail Mounting The UPort™ 200A Series has a DIN-rail kit option (DK-UP-42A) to allow installation on a DIN Rail. DIN-rail attachments can be purchased separately to attach the product to a DIN Rail. The DIN-rail attachments should be oriented with the metal springs on top. - Page 7 To remove the UPort™ 200A from the DIN Rail, do the following: STEP 1: Pull down the latch on the DIN-rail kit with a screwdriver. STEP 2 & 3: Slightly pull the UPort™ 200A forward and lift it up to remove it from the mounting rail.
-
Page 8: Specification
UPort 204A Specification USB Interface Compliance USB 3.2/2.0/1.1, BC 1.2 compatible Upstream 1 USB Type-B port Downstream UPort™ 204A: 4 USB Type-A ports UPort™ 207A: 7 USB Type-A ports Speed 5 Gbps (SuperSpeed USB), 480 Mbps (Hi-speed USB) and 12 Mbps (Full-speed USB) Physical Characteristics Housing Metal... -
Page 9: Compliance Notice
Power Requirements Input Voltage 12 VDC (external power) Power Consumption UPort™ 204A: 2650 mA @ 12 VDC UPort™ 207A: 4500 mA @ 12 VDC Warranty Warranty Period 5 years Details See www.moxa.com/warranty Compliance Notice CE Warning This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take appropriate measures. - Page 10 사용자안내문 (User Guide) 이 기기는 업무용 환경에서 사용할 목적으로 적합성평가를 받은 기기로서가정용 환경에서 사용하는 경우 전파간섭의 우려가 있습니다. (This equipment has KC approval for use in industrial environmentsand could possibly interfere with household equipment.) 기 종별 사용자안내문 Type of Equipment User Guide A 급...
- Page 11 Q: When I plug my USB device into the UPort 200A, why cannot it be detected by the host computer or recognized as an USB 2.0 device? A: Interoperability issues can arise among devices made by different manufacturers. The chance of this happening is higher if your USB device is over/under SPEC design.
