eKuore Pro for Telemedicine Demo IOS - User Manual
Index
Error al renderizar el macro 'toc' : Illegal/unsupported escape sequence near index 3 .*\Index ^
This documentation is only for the Demo SDK.
The Demo SDK does not allow for full integration, but rather to show the streaming capabilities of the device so tests can be run
if needed before integrating the SDK.
What is eKuore Pro For Telemedicine

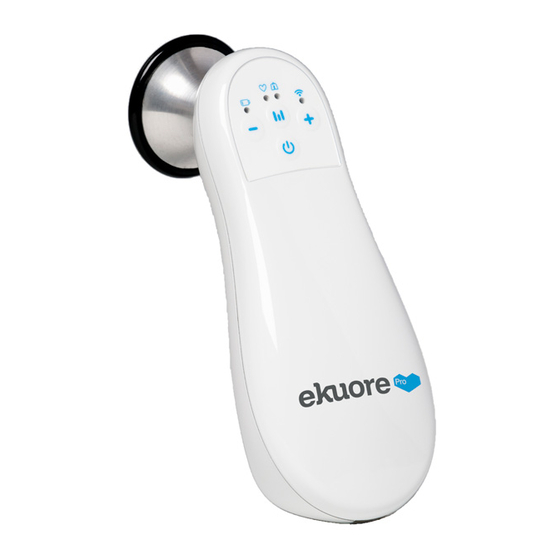

eKuore Pro For Telemedicine (eKP4T) is a wireless electronic stethoscope. It streams the auscultation audio from a patient's body to any
software through wifi in real-time.
eKuore Pro For Telemedicine
Key Concepts
Hard Reset
If for any reason, the device doesn't respond, you can force a hard reset maintaining a long press on the power button, until all led lights are off.
Note that with a hard reset, the configuration settings of the device won't change, for changing the configuration settings you must proceed with a
factory reset.
Factory Reset
To perform a factory reset, you must press the 2 volume buttons simultaneously for 5 seconds. A factory reset cannot be performed while
streaming. The factory reset will erase previous WLAN configuration settings in an eKP4T.
has been developed and registered by
eKuore
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for eKuore Pro
Summary of Contents for eKuore Pro
- Page 1 SDK. What is eKuore Pro For Telemedicine eKuore Pro For Telemedicine (eKP4T) is a wireless electronic stethoscope. It streams the auscultation audio from a patient’s body to any software through wifi in real-time. eKuore Pro For Telemedicine...
- Page 2 Verification process to ensure that data is being transferred between the device and the software. Regular “calls” (every 1-3s) are launched from the software to the device. Features of eKuore Pro For Telemedicine SDK iOS eKuore Pro For Telemedicine iOS SDK provides management functionalities for an eKP4T device: Configure the connection (IP, SSID, password, and ports) of the eKP4T device with a router in a WLAN.
- Page 3 What is eKuore Pro For Telemedicine Demo eKuore Pro For Telemedicine Demo is a simple, tiny project based on a SwiftUI interface over the eKuore Pro For Telemedicine SDK iOS framework to allow a potential user to test the framework in its system. It provides a working example that exposes all the features included in the framework.
- Page 4 List View Discover Connect to eKP4T in Configuration Mode List of the devices connected to the application Connect known device List of the discovered devices Main View Information / Interaction Panel Details view Remote Control view iii. WLAN Config view Log Panel Make sure that the system in which the is running, is not connected to any network via cable (ethernet) when trying to:...
- Page 5 The demo does not provide any feedback when it cannot connect to an eKP4T device in Configuration mode . Make sure your system is connected to the WiFi hotspot that the device emits as the following image: 1.c List of the devices connected to the application A selectable list of the devices connected to the application.
- Page 6 1.d Connect the known device Access to the form view to connect to a known IP address and port of the device you want to connect to. 1.d List of the discovered devices...
-
Page 7: Details View
A selectable list of the devices discovered. On selecting a device in the list, you will see the discovered device form, where you can connect to the selected device. Has a context menu that allows: Connect a device directly. Remove discovered device from the list. When you connect a discovered device, that device will be removed from the de discovered list and will add to the list of the device on the network. - Page 8 2.a.ii Remote Control view 2.a.iii WLAN Config...
- Page 9 If this is the first time that the device is turned on, or if a Factory-reset (pressing the volume buttons and together for 5 seconds) has been performed on the device the last time it was used, it will not have any connection configuration stored (device network light will be orange To configure the connection and set it ready to stream audio through the WLAN, the integrator must set into the device’s memory the parameters of the network, including the...
- Page 10 Troubleshooting Here is a brief list of the most common connection problems with eKuore Pro For Telemedicine demo and its solutions: If you cannot get the streaming from the device, it is possible that the WLAN password is not the correct one, please make sure of this.
