- Page 1 SER MANUAL ETEBOS 2611011024020 ERSION 1, 2022...
- Page 2 *************** MUST READ Check for firmware updates Before using the product make sure you use the most recent firmware version, data sheet and user manual. This is especially important for Wireless Connectivity products that were not purchased directly from Würth Elektronik eiSos. A firmware update on these respective products may be required.
- Page 3 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Revision history Manual Notes Date version version version June 2021 • Initial release • Updated chapter Firmware history July 2022 • Added helpful application notes related to Setebos-I Order code 2611011024020 Version 1.1 , July 2022...
- Page 4 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Abbreviations Abbreviation Name Description Proteus-III populated on motherboard with USB EV (Board) Evaluation (Board) interface for test and evaluation purpose. Input/output Pinout description. Radio frequency Describes wireless transmission. Universal Asynchronous UART Allows the serial communication with the module.
-
Page 5: Table Of Contents
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Contents Overview of helpful application notes 1 Introduction Block diagram ........ - Page 6 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 11.2.2 Cleaning ........39 11.2.3 Potting and coating .
- Page 7 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 19 License terms 19.1 Limited license ........58 19.2...
-
Page 8: Overview Of Helpful Application Notes
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Overview of helpful application notes Application note ANR004 - Peripheral only mode http://www.we-online.com/ANR004 ® The Bluetooth LE modules Proteus-I,-II,-III provide the so called ¨peripheral only mode¨, that supports a serial cable replacement by offering a transparent UART bridge functionality. This document explains how to set the module into the corresponding operation mode and how to ®... - Page 9 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Application note ANR019 - Proteus-III UART vs. SPI - a comparison http://www.we-online.com/ANR019 This application note shows the differences, advantages and disadvantages between the Proteus- III module with UART interface compared to the module variant with SPI slave interface.
-
Page 10: Introduction

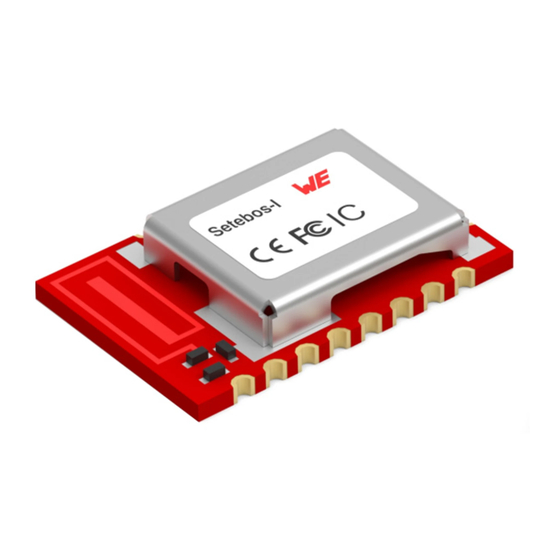

The Setebos-I is a radio module for wireless communication between devices such as control systems, remote controls, sensor nodes etc. Operating in the globally available 2.4 GHz license free band, it combines two radio standards in a single hardware platform. The Setebos-I can ®... -
Page 11: Block Diagram
Antenna Figure 2: Block diagram of the module 1.2 Ordering information WE order code Description 2611011024020 Setebos-I Module, Tape & Reel 2611129024021 Mini evaluation board for Setebos-I Table 3: Ordering information Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... -
Page 12: Electrical Specifications
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 2 Electrical specifications As not otherwise stated measured on the evaluation board Setebos-I-EV with T=25°C, VDDS=3V, f=2.44GHz, internal DC-DC converter in use. 2.1 Recommended operating conditions Description Min. Typ. Max. Unit Ambient temperature °C... -
Page 13: Power Consumption
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 2.3 Power consumption 2.3.1 Static Min. Typ. Max. Unit Continuous test mode 16.4 TX current consumption at +8 dBm TX current consumption at 0 dBm 6.25 RX current consumption 18.9 TX current consumption at +8 dBm... -
Page 14: Sensitivity At Different Data Rates
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I common used bit error rate of 0.1%. In the table below, the sensitivity is stated for a packet error rate of 1% with a payload length of 38 byte at different data rates. The PER 1% is a harder criteria resulting in 2 dBm less sensitivity. -
Page 15: Pin Characteristics
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 2.5 Pin characteristics Specifications from nRF52 data sheet Min. Typ. Max. Unit Description 0.7 ×VCC Input high voltage 0.3 ×VCC Input low voltage Current at VSS+0.4 V, output set low, standard drive, VDD 1.7V... -
Page 16: Pinout
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 3 Pinout SWDCLK WAKE_UP SWDIO /CTS /RESET /RTS BOOT URXD UTXD Figure 3: Pinout (top view) µC Pin Designation Description RF connection to PCB antenna. (see sec- tion 4.2 ) RF connection through radio front end to transceiver part of chipset. - Page 17 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Supply Ground Serial wire clock (SWD Interface). Uses inter- SWDCLK Input nal pull down resistor. Do not connect if not needed. Serial wire input/output (SWD Interface). Uses SWDIO Input internal pull up resistor. Do not connect if not needed.
- Page 18 Internal pull-ups or pull-downs are configured at startup by the firmware installed in the SoC. The pull up on the /RESET pin cannot be disabled by firmware. Pins available to connect an external crystal in custom firmware. The standard firmware of Setebos-I does not implement this function.
-
Page 19: Quick Start
WAKE_UP/BOOT/MODE_1 BUSY/LED_1/LED_2 Figure 4: Minimal pin connections The above image shows the steps to be performed to integrate the Setebos-I into a custom end device. 1. Supply voltage and ground Connect the VDD and GND pins to supply the radio module with power. - Page 20 If the module has to be connected to a PC, a converter (TTL to RS-232 or TTL to USB) has to be used. See chapter 3 for details on all pins. Please refer to the Setebos-I-EV schemes for a reference design.
-
Page 21: Antenna Connection
2.4 GHz frequency band. A simple short between the pins RF and ANT feeds the RF output of the module to the on-board antenna of the Setebos-I. In this configuration, the module does not require any additional RF circuitry. For US and Canada, please refer to the trace design in chapter 10.2 . -
Page 22: Functional Description
5 of the Thyone-I user manual [2]. Example: That means when requesting the firmware version of the Setebos-I by a UART command, the radio module will return the firmware version of the integrated Proteus-III, in case the Setebos-I has been started as Proteus-III. It will return the firmware version of the integrated Thyone-I, in case it has been started as Thyone-I. -
Page 23: Host Connection
User manual Setebos-I 6 Host connection The Setebos-I is intended to be used as a radio module in a system, interfaced with a host micro-controller. The use of industry standard UART as the primary interface ensures a very minimal requirement set on the host MCU. As a result of this, the module can be designed in with most host controllers from a 8051 to the more advanced ARM core architecture. -
Page 24: Firmware Updates
The Setebos-I uses the OTAP (over the air) update procedure of the Proteus-III radio mod- ule. The OTAP mode can be enabled using the BOOT pin or the respective Proteus-III UART command. -
Page 25: Firmware History
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 8 Firmware history Version 1.0.0 "Release" • First production release • Includes Proteus-III firmware version 1.3.0 • Includes Thyone-I firmware version 1.5.0 Version 1.1.0 "Release" • Includes Proteus-III firmware version 1.4.0 • Includes Thyone-I firmware version 1.6.0 For more details, see Proteus-III and Thyone-I user manual. -
Page 26: Design In Guide
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 9 Design in guide 9.1 Advice for schematic and layout For users with less RF experience it is advisable to closely copy the relating evaluation board with respect to schematic and layout, as it is a proven design. The layout should be conducted with particular care, because even small deficiencies could affect the radio performance and... - Page 27 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I • Elements for ESD protection should be placed on all pins that are accessible from the outside and should be placed close to the accessible area. For example, the RF-pin is accessible when using an external antenna and should be protected.
-
Page 28: Dimensioning Of The Micro Strip Antenna Line
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I • Filter and blocking capacitors should be placed directly in the tracks without stubs, to achieve the best effect. • Antenna matching elements should be placed close to the antenna / connector, blocking capacitors close to the module. -
Page 29: Antenna Solutions
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Figure 8: Dimensioning the antenna feed line as micro strip lead to a trace width of W ~ 1.9 mm. To ease the calculation of the micro strip line (or e.g. a coplanar) many calculators can be found in the internet. -
Page 30: Wire Antenna
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 9.3.1 Wire antenna An effective antenna is a /4 radiator with a suiting ground plane. The simplest realization is a piece of wire. It’s length is depending on the used radio frequency, so for example 8.6 cm 868.0 MHz and 3.1 cm for 2.440 GHz as frequency. -
Page 31: Antennas Provided By Würth Elektronik Eisos
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 9.3.4 Antennas provided by Würth Elektronik eiSos 9.3.4.1 2600130021 - Himalia - 2.4 GHz dipole antenna Figure 9: 2.4 GHz dipole-antenna Due to the fact, that the antenna has dipole topology there is no need for an additional ground plane. -
Page 32: Reference Design
Conformity the evaluation board serves as reference design. For the FCC the evaluation board serves as trace design (chapter 10.2 ) that has to be followed when referencing the module FCC ID. The certification runs on Proteus-III and is valid for the Setebos-I by a class 1 permissive change. -
Page 33: Ev-Board
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 10.1 EV-Board Figure 10: Reference design: Schematic page 1 Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... - Page 34 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Figure 11: Reference design: Schematic page 2 Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs...
-
Page 35: Reference Design: Layout
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I no metal antenna Figure 12: Reference design: Layout Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... -
Page 36: Trace Design
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 10.2 Trace design Figure 13: Trace design: Layout Figure 14: Reference design: Stack-up • Top layer is used for routing, filled with ground plane except area under the module and antenna free area. -
Page 37: Trace Design: Schematic
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Figure 15: Trace design: Schematic Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... -
Page 38: On-Board Pcb Antenna
User manual Setebos-I The RF pin of module can be coupled to on-board PCB antenna or an external antenna. Two variants of the Setebos-I are certified: • For the on-board PCB antenna: 22 pF shall be assembled on C28. – If additional tuning is needed in the end application, C27 and C26 can be assembled. -
Page 39: Manufacturing Information
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 11 Manufacturing information 11.1 Moisture sensitivity level This wireless connectivity product is categorized as JEDEC Moisture Sensitivity Level 3 (MSL3), which requires special handling. More information regarding the MSL requirements can be found in the IPC/JEDEC J-STD-020 standard on www.jedec.org. -
Page 40: User Manual Setebos-I
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I Volume mm Volume mm Volume mm Package thickness <350 350-2000 >2000 < 1.6 mm 260 °C 260 °C 260 °C 1.6 mm - 2.5 mm 260 °C 250 °C 245 °C > 2.5 mm 250 °C... -
Page 41: Cleaning
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I –5°C Max. Ramp Up Rate Max. Ramp Down Rate Preheat Area s max s min Time 25°C to Peak Time Figure 18: Reflow soldering profile After reflow soldering, visually inspect the board to confirm proper alignment 11.2.2 Cleaning... -
Page 42: Potting And Coating
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 11.2.3 Potting and coating • If the product is potted in the customer application, the potting material might shrink or expand during and after hardening. Shrinking could lead to an incomplete seal, allowing contaminants into the component. -
Page 43: Safety Recommendations
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 11.4 Safety recommendations It is your duty to ensure that the product is allowed to be used in the destination country and within the required environment. Usage of the product can be dangerous and must be tested and verified by the end user. -
Page 44: Physical Specifications
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 12 Physical specifications 12.1 Dimensions Dimensions 12 x 8 x 2 mm Table 14: Dimensions 12.2 Weight Weight <1g Table 15: Weight Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... -
Page 45: Module Drawing
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 12.3 Module drawing 12,0 ±0,3 Figure 19: Module dimensions [mm] Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... -
Page 46: Footprint We-Fp-4
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 12.4 Footprint WE-FP-4+ 12,5 4,23 no metall Figure 20: Footprint WE-FP-4+ [mm] 12.5 Antenna free area To avoid influence and mismatching of the antenna the recommended free area around the antenna should be maintained. As rule of thumb a minimum distance of metal parts to the antenna of /10 should be kept (see figure 20 ). -
Page 47: Marking
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 13 Marking 13.1 Lot number The 15 digit lot number is printed in numerical digits as well as in form of a machine readable bar code. It is divided into 5 blocks as shown in the following picture and can be translated according to the following table. -
Page 48: General Labeling Information
The 3 byte counter printed on the label can be used with this 0018DA to produce the full MAC address by appending the counter after the manufacturer identifier. Figure 22: Label of the Setebos-I Order code 2611011024020 Version 1.1 , July 2022... -
Page 49: Information For Explosion Protection
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 14 Information for explosion protection In case the end product should be used in explosion protection areas the following information can be used: • The module itself is unfused. • The maximum output power of the module is 6 dBm for external antenna and 4 dBm for internal antenna. -
Page 50: References
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 15 References https://www.we-online.de/katalog/de/ [1] Würth Elektronik. Proteus-III user manual. manual/2611011024000 . https://www.we-online.de/katalog/de/ [2] Würth Elektronik. Thyone-I user manual. manual/2611011021000 . Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... -
Page 51: Regulatory Compliance Information
RED directive 2014/53/EU of the European Union (EU). The Setebos-I can be operated without notification and free of charge in the area of the Euro- pean Union. However, according to the RED directive, restrictions (e.g. in terms of duty cycle or maximum allowed RF power) may apply. -
Page 52: Eu Declaration Of Conformity
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 16.5 EU Declaration of conformity EU DECLARATION OF CONFORMITY Radio equipment: 2611011024020 The manufacturer: Würth Elektronik eiSos GmbH & Co. KG Max-Eyth-Straße 1 74638 Waldenburg This declaration of conformity is issued under the sole responsibility of the manufacturer. -
Page 53: Fcc Compliance Statement
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 16.6 FCC Compliance Statement FCC ID: R7T1101102 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 54 The OEM must ensure that the following conditions are met. • The Setebos-I will be used at a distance of at least 10 mm. • End users of products, which contain the module, must not have the ability to alter the firmware that governs the operation of the module.
-
Page 55: Pre-Certified Antennas
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 16.8.1 Pre-certified antennas The Setebos-I is pre-certified with the following antennas. Product Certified antenna Setebos-I (2611011024020) PCB antenna included in the Setebos-I Order code 2611011024020 Version 1.1 , July 2022 www.we-online.com/wcs... -
Page 56: Important Notes
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 17 Important notes The following conditions apply to all goods within the wireless connectivity product range of Würth Elektronik eiSos GmbH & Co. KG: 17.1 General customer responsibility Some goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. -
Page 57: Product Improvements
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 17.5 Product improvements Due to constant product improvement, product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard, we inform about major changes. In case of further queries regarding the PCN, the field sales engineer, the internal sales person or the technical support team in charge... -
Page 58: Legal Notice
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 18 Legal notice 18.1 Exclusion of liability Würth Elektronik eiSos GmbH & Co. KG considers the information in this document to be cor- rect at the time of publication. However, Würth Elektronik eiSos GmbH & Co. KG reserves the right to modify the information such as technical specifications or functions of its products or... - Page 59 WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the par- ties have executed an agreement specifically governing such use. Moreover, Würth Elektronik eiSos GmbH &...
-
Page 60: License Terms
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 19 License terms This License Terms will take effect upon the purchase and usage of the Würth Elektronik eiSos GmbH & Co. KG wireless connectivity products. You hereby agree that this license terms is ap- plicable to the product and the incorporated software, firmware and source codes (collectively,... -
Page 61: Ownership
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I shall inform Würth Elektronik eiSos about the intent of such usage before design-in stage. In certain customer applications requiring a very high level of safety and in which the malfunction or failure of an electronic component could endanger human life or health, you must ensure to have all necessary expertise in the safety and regulatory ramifications of your applications. -
Page 62: Limitation Of Liability
WIRELESS CONNECTIVITY & SENSORS User manual Setebos-I 19.6 Limitation of liability Any liability not expressly provided by Würth Elektronik eiSos shall be disclaimed. You agree to hold us harmless from any third-party claims related to your usage of the Würth Elektronik eiSos’... - Page 63 Setebos-I ........
- Page 64 Contact Würth Elektronik eiSos GmbH & Co. KG Division Wireless Connectivity & Sensors Max-Eyth-Straße 1 74638 Waldenburg Germany Tel.: +49 651 99355-0 Fax.: +49 651 99355-69 www.we-online.com/wireless-connectivity...
