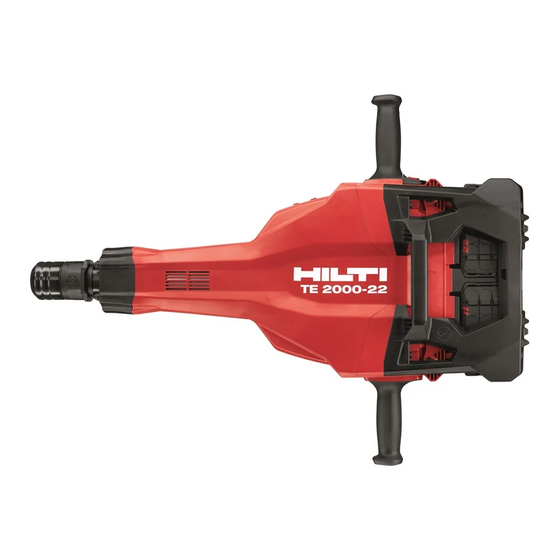

Hilti NURON TE 2000-22 Original Operating Instructions
  1. Manuals
  2. Brands
  3. Hilti Manuals
  4. Tools
  5. TE 2000-22
  6. Original operating instructions

Hilti NURON TE 2000-22 Original Operating Instructions

Hide thumbs Also See for NURON TE 2000-22:

Advertisement

Quick Links

Download this manual
TE 2000­22
English
1
‫ת י‬
‫ר ב‬
‫ע‬
13

Advertisement

loading
Need help?

Need help?

Do you have a question about the NURON TE 2000-22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hilti NURON TE 2000-22

Summary of Contents for Hilti NURON TE 2000-22

  • Page 1 TE 2000­22 English ‫ת י‬ ‫ר ב‬ ‫ע‬...
  • Page 5 TE 2000­22 Original operating instructions ........‫ת...

  • Page 7: Information About The Documentation

    Comply with the operating instructions Instructions for use and other useful information Dealing with recyclable materials Do not dispose of electric equipment and batteries as household waste Hilti Li­ion battery Hilti charger 1.2.3 Symbols in illustrations The following symbols are used in illustrations: These numbers refer to the illustrations at the beginning of these operating instructions.
  • Page 8 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information Breaker TE 2000­22...
  • Page 9 ▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  • Page 10 ▶ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. ▶...
  • Page 11 Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".
  • Page 12 Hilti recommends the batteries stated in the table at the end of these operating instructions for this product. • For these batteries, use only Hilti chargers of the type series stated in the table at the end of these operating instructions. Misuse •...
  • Page 13 Cordless breaker, operating instructions. grease The transport trolley and the case for batteries and charger are available as accessories. Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group Status indicators of the Li­ion battery Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.

  • Page 14: Preparations At The Workplace

    50 %. If a connected product can no longer be used, the battery has reached the end of its useful life and has to be replaced. Consult Hilti Service. Cordless breaker TE 2000­22 Weight in accordance with EPTA Procedure 01, without battery 17.4 kg...

  • Page 15: Operation

    1. Lightly grease the connection end of the accessory tool. The use of unsuitable grease can cause damage to the product. Use only genuine Hilti grease. 2. Push the accessory tool into the chuck as far as it will go, turning it and applying light pressure until it engages with an audible click.

  • Page 16: Care And Maintenance

    2. Press the on/off switch. Working at low temperatures: The hammering mechanism works only when the product has reached a minimum operating temperature. Briefly position the product on the surface to be worked and run the product under no load until the required temperature is reached. If necessary, repeat this procedure until the hammering mechanism begins to operate.

  • Page 17: Troubleshooting

    To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.

  • Page 18: Manufacturer's Warranty

    ▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.
  • Page 19 ‫י ל‬ ‫ש‬ ‫ה‬ ‫ל ן‬ ‫י א‬ ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת‬ ‫ל ל‬ ‫ו ס‬ Hilti ‫ן ע‬ ‫ט‬ ‫מ‬ Hilti ‫ם י‬ ‫ר ו‬ ‫י א‬ ‫ב‬ ‫ם‬ ‫י ל‬ ‫מ‬ ‫ס‬...
  • Page 20 ‫ו מ‬ ‫ש‬ ‫י‬ ‫נ כ‬ ‫ט‬ ‫ה‬ ‫ד‬ ‫ו ע‬ ‫י ת‬ ‫ה‬ Hilti Entwicklungsgesellschaft mbH | Zulassung Geräte | Hiltistraße 6 | 86916 Kaufering, Germany ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ם י‬ ‫י ל‬ ‫מ‬ ‫ש‬ ‫ח‬...
  • Page 21 ‫ת‬ ‫ח‬ ‫פ‬ ‫ר‬ ‫ס‬ ‫מ‬ ‫מ‬ ‫ב‬ ‫ש‬ ‫ו מ‬ ‫י ש‬ ‫ה‬ ‫. ת‬ ‫ח‬ ‫פ‬ ‫ר‬ ‫ס‬ ‫מ‬ ‫מ‬ ‫ב‬ ‫ש‬ ‫מ‬ ‫ת‬ ‫ש‬ ‫ה‬ ‫, ה‬ ‫ח‬ ‫ל‬ ‫ה‬ ‫ב‬ ‫י ב‬ ‫ס‬ ‫ב‬ ‫י ל‬ ‫מ‬...
  • Page 22 ‫ם‬ ‫י נ ו‬ ‫ש‬ ‫י ט‬ ‫פ‬ ‫ל‬ ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ת‬ ‫ו א‬ ‫ר‬ ‫ו ה‬ ‫ת‬ ‫ו ד‬ ‫ו ב‬ ‫ע‬ ‫ה‬ ‫ל‬ ‫כ ל‬ ‫ת‬ ‫ו ח‬ ‫י ט‬ ‫ב‬ ‫ת ו‬ ‫י ח‬ ‫נ‬...
  • Page 23 ‫ל י‬ ‫ד כ‬ B 22 ‫ם‬ ‫י מ‬ ‫ג‬ ‫ד ה‬ ‫ת‬ ‫ר‬ ‫ד ס‬ ‫מ‬ Hilti Nuron ‫ן‬ - ‫ו י‬ ‫ם ו‬ ‫י ת‬ ‫י ל‬ ‫ת ו‬ ‫ל ל‬ ‫ו ס‬ ‫ב‬ ‫ק ר‬ ‫ה ז‬...
  • Page 24 ‫ל ב‬ ‫ו ה‬ ‫ה‬ ‫ת‬ ‫ל‬ ‫ג ע‬ ‫ת‬ ‫א‬ www.hilti.group ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ Hilti Store ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬ ‫ש‬ ‫ר צ‬ ‫ו מ‬ ‫ה‬ ‫ר‬ ‫ו ב‬ ‫ע‬...
  • Page 25 ‫י ש‬ ‫ה‬ ‫י‬ ‫י ח‬ ‫ף‬ ‫ו ס‬ ‫ב‬ ‫ת‬ ‫א‬ ‫צ‬ ‫מ נ‬ ‫ה‬ ‫ל ל‬ ‫ו ס‬ ‫ה‬ Hilti ‫ל‬ ‫ש‬ ‫ת‬ ‫ו ר‬ ‫י ש‬ ‫ת‬ ‫ד ב‬ ‫ע‬ ‫מ‬ ‫ל‬ ‫ה‬ ‫נ פ‬ ‫א‬ ‫נ א‬...
  • Page 26 ‫י ח‬ ‫. י‬ ‫ל כ‬ ‫ה‬ ‫ל‬ ‫ש‬ ‫ה‬ ‫נ ק‬ ‫ה‬ ‫ת‬ ‫א‬ ‫ת ו‬ ‫ל ק‬ ‫ן מ‬ ‫ש‬ Hilti ‫ל‬ ‫ש‬ ‫י ר‬ ‫ו ק‬ ‫מ‬ ‫ז‬ ‫י ר‬ ‫ג ב‬ ‫ק‬ ‫ר‬ ‫ש‬ ‫מ‬ ‫ת‬ ‫ש‬...
  • Page 27 ‫( ם‬ ‫ש‬ ‫ג ב‬ ‫ה‬ ‫ת‬ ‫ו א‬ ‫ח‬ ‫י נ‬ ‫ה ל‬ ‫ו א‬ ‫ם‬ ‫י מ‬ ‫ב‬ Hilti ‫ל‬ ‫ש‬ ‫ת‬ ‫ו ר‬ ‫י ש‬ ‫ל‬ ‫ה נ‬ ‫פ ו‬ ‫ק י‬ ‫ל ד‬ ‫א ל‬ ‫ל כ‬...
  • Page 28 ‫ל‬ ‫ש‬ ‫ה‬ ‫ח‬ ‫ו ט‬ ‫ב‬ ‫ה‬ ‫ל ע‬ ‫פ‬ ‫ה‬ ‫ך‬ ‫ר ו‬ ‫צ ל‬ www.hilti.group Hilti Store ‫: ת‬ ‫ב‬ ‫ו ת‬ ‫כ ב‬ ‫ו א‬ ‫ך ל‬ ‫ש‬ ‫- ב‬ ‫א‬ ‫צ‬ ‫מ‬ ‫ת‬ ‫ך ל‬...
  • Page 29 ‫ו ל‬ ‫כ ו י‬ ‫א ל‬ ‫ן ה‬ ‫ש‬ ‫ך כ‬ ‫ת ו‬ ‫ל ל‬ ‫ו ס‬ ‫ק ל‬ ‫ס‬ ◀ Hilti Store ‫ת י‬ ‫א ר‬ ‫ח‬ ‫א‬ ‫ה‬ ‫ר ו‬ ‫ז ח‬ ‫י מ‬ ‫ה‬ ‫ת‬ ‫ר ב‬...
  • Page 30 ‫ת י‬ ‫ר ב‬ ‫ע‬ 2301751 2301751...
  • Page 36 *2301751* 2301751 Hilti = registered trademark of Hilti Corp., Schaan Pos. HEB | 20211005...
