- Page 1 USER MANUAL Oxygen VS ASIN AQUA ® 2021 P O W E R O F S Y N E R G I E for cr ystal clear pool water without chlorine INTEGRATED VS PUMP CONTROL w w w.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).

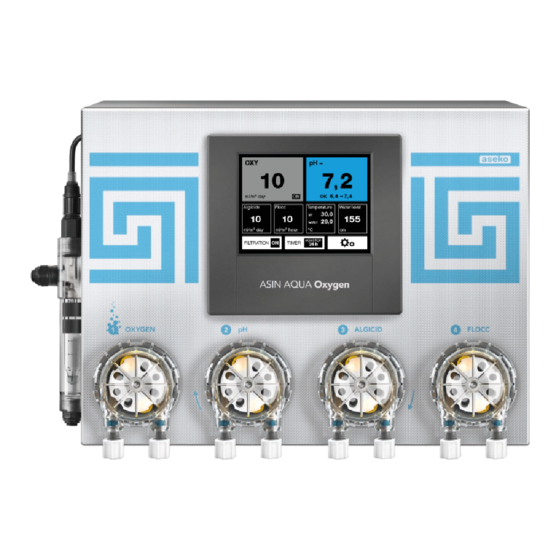

- Page 4 What do you receive in your box Water thermometer with housing #13192 Device ASIN AQUA Oxygen Probe housing 2 pcs #12013 Peristaltic pumps #12093 Electronic flowmeter with filter #12106 Long Life pH Probe #12012 Coagulation mixer Water valves 2 pcs #12006 Injection valve 4 pcs #12005 Suction tube weight 4 pcs #12023 PE Tube 1/4”...
-
Page 5: Optional Accessories
Pressure-type level sensor Air thermometer #12048 #12086 #13192 Inserting DN50 plug pH 7.00 Buffer #12065 1/4” threaded #12134 Aseko original chemicals Volume 20 l OXY PURE #13038 pH MINUS #12130 pH PLUS #12120 ALGICID #12156 FLOC+C #12139 Bottle 1 kg... - Page 6 ASIN AQUA Oxygen POWER OF SYNERGY for crystal-clear and chlorine-free water The principle is above all based on perfect removing of all the impurities as well as larger bacteria by filtering. It is due to a unique mixture of coagulant and flocculant FLOC+C, which after having been sprayed in ZPM (coagulation mixer) shall gather even the smallest impurities to create larger floccules that shall subsequently be perfectly removed by the special AFM (Activated Filter...
- Page 7 Pool management functions Filtration Time Control Daily, automatic start of the filtering for individually preset periods. Water Level - Refilling Water level can be monitored by optional level sensor. System can be individually programmed to control up to four different water levels at your pool and switch the water refilling or waste water draining on/off (this requires an optional Besgo valve for automatic backwashing).
- Page 8 ASIN AQUA Oxygen Installation ASIN AQUA Oxygen is to be wall mounted in dry and dust-free environment with temperature ranging from +5 °C to +40 °C. Install the mounting rail, which serves for attachment, to the wall. Select location so that free space at least 40 40 °C cm in all directions and height above floor at most 150 cm are provided.
-
Page 9: Installing The Probes
Installing the Probes Carefully insert the probe into the housing. Hand tighten or use the attached plastic wrench socket for probes. Connect the connector and lock it by tightening a connector ring. After the probe have been inserted, slightly tightened and connectors have been connected, ASIN AQUA Oxygen is ready for connection to the water system of your pool. - Page 10 OUTPUT INLET MEASURED WATER SUPPLY MEASURED WATER DRAINAGE...
- Page 11 Pool Water Connection Water valve fitting The pool water to be measured must be brought to the ASIN AQUA probes. We place the shut-off valve in the plug D = 50 with thread G1 / 4 “# 12134, glued to the T-piece. Tighten by hand only. Do not use pliers or other tools. Plug with D = 50 with thread 1/4“...
- Page 12 Max 8 m FLOC+C...
- Page 13 Pool Chemicals Connection Plug with Screw the injection valves into the plug D = 50 with thread G1 / 4 “# 12134, D = 50 with glued to the T-piece. Tighten by hand only. Do not use pliers or other tools. thread 1/4“...
-
Page 14: Accessories Connection
Accessories Connection POWER SUPPLY ZDROJ NAPÁJENÍ 230 V ~ 50 Hz 230 V ~ 50 Hz RELAY 230 V, MAX 1 A 230 V relé Solenoid Solenoid valve dopuštění filling max 1A Besgo valve 5W Besgo 5 W Filter backwash Praní... - Page 15 VS pump connection WARNING Always check the connection according to the current user manual of your pump manufacturer. Speed TYP A TYP B TYP C STOP STOP Relay status HAYWARD (older type) TYP C TYP A Speed 3 Speed 2 SPECK TYP A UWE EO PM...
-
Page 16: Power Supply
Power Supply Connection to the mains: Leave the mains switch in the off position. Connect the filtering device to the ASIN AQUA Oxygen switched socket Installation must be outlet (filtration power supply - max. 1.4 kW / 230 VAC). protected by a residual Connect the 230 V / 50 Hz mains cable to ASIN AQUA Oxygen (on the right current device (RCD). -
Page 17: Installation Test
Installation Test WARNING: Any obstacles, bubbles or leaks in the connecting tube will prevent ASIN AQUA Oxygen from correct operating. The clear plastic tube allows you to monitor flow of liquid to the injecting valves. Before commencing the operation, test ASIN AQUA Oxygen installation. Most problems result from incorrectly performed installation. -
Page 18: Touch Screen Description
Touch screen description Basic Screen The basic screen display measured, required values and status information. E.g. click on the OXY tab to enter the setting of the required OXY PURE value in pool water. Measured Value. The chlorine pump status – ON. ON indicates the ON - filtering follows Enter settings. - Page 19 Settings Back to the main screen. Displays help/manual for Back to the previous the particular screen. screen. Movement through Menu Movement in menu to the previous page. ON - function is switched on Indicator of the current page and the total number of pages.
-
Page 20: Date And Time
Configuration Date and Time To ensure the correct function of timers, set the current date and time. Pool Volume To ensure the correct function of ASIN AQUA Oxygen, enter the correct volume of your. Calculate your pool volume in m Length (L) times width (W) times depth (D) is volume (V) - (L × W × D = V). -
Page 21: Heating Control
Heating Control Water Temperature Measurement and Heating Control The high-accuracy electronic thermometer is used to measure water temperature. This should be installed to the inlet pipe coming from the pool. Never mount it downstream of the heat exchanger. Significant distortion of temperature occurs. - Page 22 ASIN AQUA Oxygen does not take any action and it waits for stabilization of a signal from probes. Concentration pH – If you use the original ASEKO Pool & SPA chemicals keep the preadjusted values. In case of use other non-original chemicals adjust concentration according to data on the label of a chemical used.
- Page 23 Values Required OXY PURE Setting A sufficiently effective dose for most pools is 10 ml/m per day. After several days in operation, measure OXYPURE concentration using the hand tester and change the dose, if required. pH Setting Considering that the ASIN AQUA Oxygen water treatment system is efficient in the broad pH range, it is useful to enter the required pH value equal to pH value of water you refill or slightly lower.
-
Page 24: Setting Values
Setting Values Commissioning procedure The water in the pool must be clean without any additives. Ideally fill the pool with fresh water from the water main. 1. Ensure the filtration system runs NONSTOP for 24 hours • Set the required values via the main screen by pressing the appropriate tab (see the chapter Control): •... -
Page 25: Safety Functions
Safety Functions Maximum Number of pH Doses - without Probe Response If the measured pH value does not change even after preset quantity of doses (according to the settings), ASIN AQUA Oxygen stops pH dosing and an error message appears on the display. The other ASIN AQUA Oxygen functions are not limited. - Page 26 In Operation Measurement and Calibration pH Probe Calibration When pH is being measured in operation, there may be a difference between the ASIN AQUA Oxygen value and the current pH value measured directly in water. Remove the probe from ASIN AQUA Oxygen, leave the probe connected to Device by means of the cable.
- Page 27 In Operation Measurement and Calibration Testing the pH probe If the probe meet following qualifications, it can be used in the system and it is functional: Probe has no visible mechanical damage. Measured pH value is in tolerance +/- 1,0 (example - water pH is 7,2 and probe is measuring 7,9 - the tolerance is 0,7 so lower than 1,0 - the probe is OK) Probe response to positive or negative changes in water or buffer.
-
Page 28: Internet Connection
The LAN connector is to be connected to the domestic router. Data are sent in the intervals of 10 seconds to the address pool.aseko.com, the route must not be blocked by the firewall. Connection of ASIN AQUA Oxygen to your LAN is not complicated. You just need some basic IT skills. - Page 29 Connect LAN cable INTERNET Home network INTERNET 3G / LTE WIFI EXTENDER Wifi extender INTERNET Powerline via 230 V 230 V socket outlet INTERNET...
-
Page 30: For Android
Live application to your smartphone. Application is available for iOS and Android operation systems. Main screen after opening will ask for typing your ASIN AQUA Oxygen serial number. If you have more pools equipped by the ASEKO NET adapter you can load all of them to one application. Pool LIVE... - Page 31 The web application for detailed monitoring of the pool water quality by means of well-arranged graphs. It shows all the measured parameters as well as ASIN AQUA Oxygen actions up to 30 days back. This application is giving you the detailed information of the pool status and detailed review of all events, taken actions and act levels of monitored items up to 30 days back.
-
Page 32: Ph Probe Maintenance
Maintenance #12073 Replacement hose for the pump PP 60 To ensure the optimum efficiency, perform visual checks and maintenance of ASIN AQUA Oxygen on a regular basis. Pump Hose Replacement To prevent the pump from failing, it is recommended to replace the hose #12073 every 24 months. -
Page 33: Error Messages
Error messages Agent Run Out • Check liquid levels on a regular basis, refill in time. Dosing Pump does not Dose • Leakage in connection of PE tubes or they are damaged. • Failure of dosing pump. Check whether pump is running. If so, check the hose inside the pump for damage or breakage and replace it, if required. - Page 34 Besgo 3 W Besgo 3 W Besgo 3 W Dnová výpust Dnová výpust Dnová výpust Externes Touchscreen Display Topení Topení Topení Bezpotencionální Bezpotencionální Bezpotencionální relé relé relé The external display shows Bez funkce Bez funkce Bez funkce 1. Pool water parameters: Speed 3 Speed 3 Speed 3...
- Page 35 Enhancement of filtering efficiency activated filter media ® AFM is direct substitute for filter sand. It doubles efficiency of the existing filtration system. AFM is resistant to biological pollution and formation of so- ® called bio-film. coagulation mixer ® ZPM increases effects of coagulation and flocculation for transition of smaller dissolved solids (turbidity) to larger particles that can be removed by filtering.
- Page 36 USER MANUAL ASIN AQUA Oxygen VS w w w.asekopool.com...
