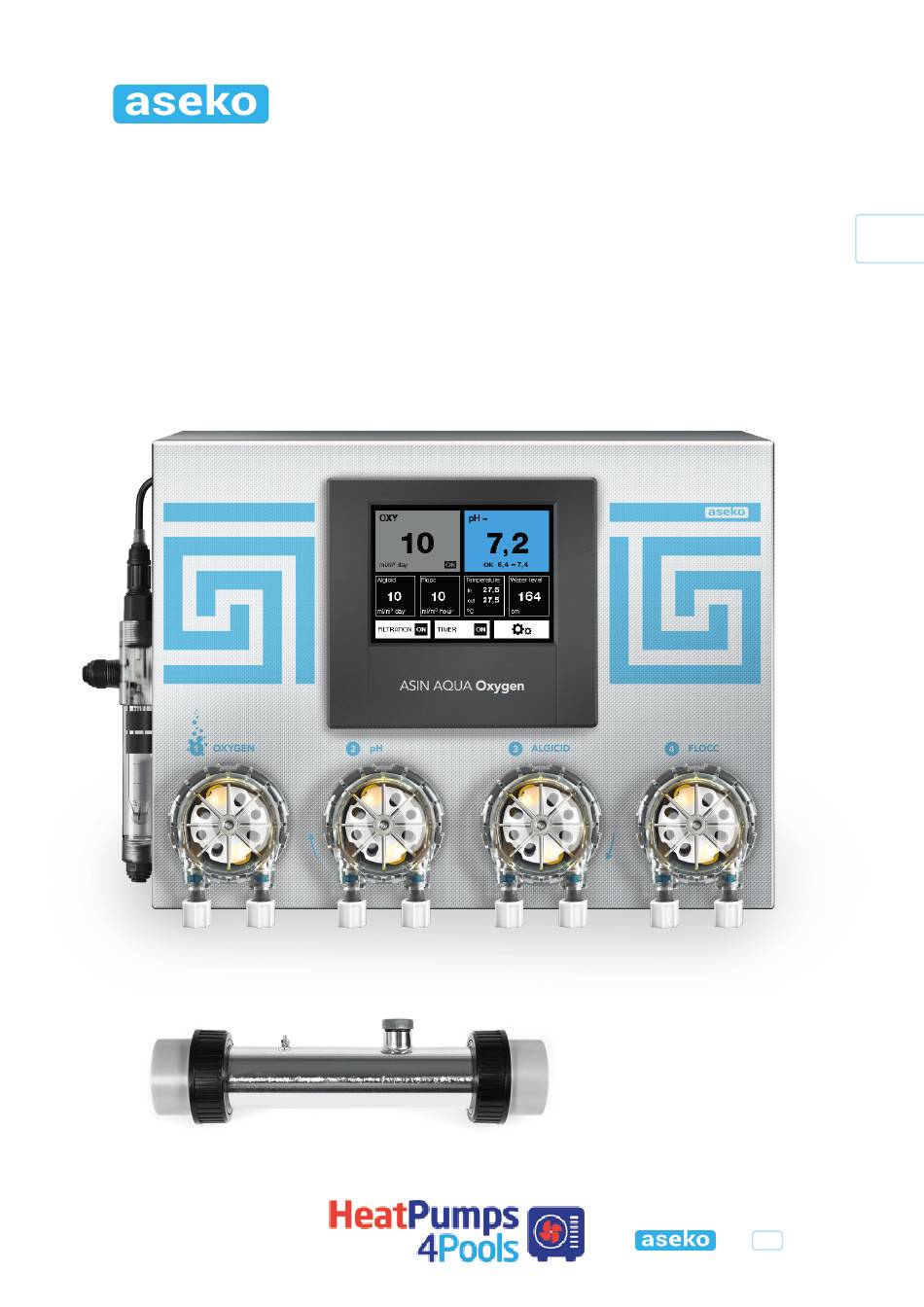

USER MANUAL
ASIN AQUA
Oxygen
®
EN
P O W E R O F S Y N E R G I E
for cr ystal clear pool water without chlorine
w w w.aseko.com
EN
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASIN AQUA Oxygen and is the answer not in the manual?

Questions and answers

Related Manuals for Aseko ASIN AQUA Oxygen

Summary of Contents for Aseko ASIN AQUA Oxygen

  • Page 1 USER MANUAL ASIN AQUA Oxygen ® P O W E R O F S Y N E R G I E for cr ystal clear pool water without chlorine w w w.aseko.com...
  • Page 2 Basic Safety Instructions This User Manual includes the basic safety instructions and information for erection, commissioning, operation and maintenance of the ASIN Aqua device (hereinafter referred to as “Device”). Therefore, before using Device, each person, in particular that executing its erection, commissioning or maintenance, and each its user unconditionally has to read this User Manual.
  • Page 3 Handling of Chemical Agents for Pool Water Treatment The chemical agents must be handled in a safe manner in order that no damage or injury could occur. Aseko recommends to always use personal protective equipment during manipulation of pool chemistry. For instructions, see the...

  • Page 4: Table Of Contents

    Skladujte v suhcu a temnu min. +5°C max. + 30°C ETHANOL SOLUTION (ETHYL ALCOHOL SOLUTION) UN 1170 aseko.com Producer: ASEKO spol. s r.o. Expiration date Videnska 340, 252 50, Vestec, CZE on the cap. Content: 20 litres Tel: +420 244 912 210...
  • Page 5 Accessories Available for Purchase External touch display #12048 Pressure-type level gauge #12086 Inserting DN50 plug pH 7.00 Buffer #12065 Air thermometer #12010 G1/4” threaded #12134 Chemistry Available for Purchase 20 l volume for pools OXY PURE #13038 pH MINUS #12130 pH PLUS #12120 ALGICID #12156 FLOC+C #12139...

  • Page 6: Probe

    OXY Pure Active oxygen for clean and crystal-clear water. pH control ASIN AQUA Oxygen makes it possible to dose pH MINUS or pH PLUS. Acurate measuring by pH probe combined with the system digital inteligence assures the required water quality.

  • Page 7: External Touch

    Unless you want to empty the pool during the winter season, this function can ensure protection of the pool against freezing. Remote control by External touch display Some of ASIN AQUA Oxygen functions can be remotely controled by External touch display. System must be extended with the External touch display #12048.
  • Page 8 User friendly and sophysticated graphic enables easy selection of items to be monitored and preset the value limits to send alerts at your smartphone. ASIN AQUA Oxygen will automatically generate alert to your smartphone if any of selected items exceed the individually preset limits or in case any system failure so you can call for action to keep your pool in condition if necessary.
  • Page 9 Enhancement of filtering efficiency activated filter media ® AFM is direct substitute for filter sand. It doubles efficiency of the existing filtration system. AFM is resistant to biological pollution and formation of so- ® called bio-film. coagulation mixer ® ZPM increases effects of coagulation and flocculation for transition of smaller dissolved solids (turbidity) to larger particles that can be removed by filtering.

  • Page 10: Peristaltic

    ASIN AQUA Oxygen Installation ASIN AQUA Oxygen is to be wall mounted in dry and dust-free environment with temperature ranging from +5 °C to +40 °C. Install the mounting rail, which serves for attachment, to the wall. Select location so that free space at least 40 40 °C...
  • Page 11 Installing the Probes Wrench socket for Klíč na sondy probes #13046 #13046 Carefully insert the probe into the housing. Hand tighten or use the attached plastic wrench socket for probes. Connect the connector and lock it by tightening a connector ring. After the probe have been inserted, slightly tightened and connectors have been connected, ASIN AQUA Oxygen is ready for connection to the water system of your pool.

  • Page 12: Measured Water

    Pool Water Connection Water valve CONNECTION The pool water to be measured must be connected to ASIN AQUA Oxygen. fitting Connect the measured water inlet downstream of the pump, upstream of the filter and ZPM (coagulation mixer). Place the water valve fitting to the T-joint, blinded by DN50 G1/4” threaded plug G1/4”...
  • Page 13 POOL WATER OUTLET POOL WATER INLET Thermometer THE WATER OUTLET CAN BE (Zeta REALISED: Potential Mixer) 1. downstream of filtration 2. to non-pressure (overflow tank) 3. upstream of filter pump Besgo FROM POOL TO POOL Heating...
  • Page 14 Pool Chemicals Connection At this step is necessary to connect the injecting valves of individual chemicals to the dosing pumps and dosed agents. Place the injecting valve in the T-joint, blinded with the DN50 G1/4” threaded plug #12134. Cut the PE tube at 90 ° angle to ensure proper fitting. •...
  • Page 15 Thermometer Teploměr (Zeta koagulační Potential mixer Mixer) Waste Odpad Besgo Besgo FROM POOL Z BAZÉNU TO POOL DO BAZÉNU Heating Ohřev...
  • Page 16 Accessories connection T125mA Besgo valve Besgo ventil Refilling solenoid Solenoid dopouštění Heating relay Relé topení Modul pro variabilní čerpadla (*volitelně) Variable speed pump module (*optional) 230 Vac Filtrační Filter pump with čerpadlo variable speed s variabilní rychlostí T800mA Roller shutter auxiliary contact Pomocný...
  • Page 17 Connect the filtering device to the ASIN AQUA Oxygen switched socket outlet (filtration power supply - max. 1.4 kW / 230 VAC). Connect the 230 V / 50 Hz mains cable to ASIN AQUA Oxygen (on the right Proudový Residual side).
  • Page 18 PE tube. DO NOT FORGET! Provide the testing run and stop of all accessories connected to ASIN AQUA Oxygen. At this step just test, do not dose the aids or provide the initial dose of chemicals!
  • Page 19 Control Basic Screen It shows measured, required values and status information. For example, click the box OXY to display setting of the required value. Value Measured. The chlorine pump status – ON. Controls ON/OFF indicates the Manual control allows to: Enter settings.
  • Page 20 To ensure the correct function of timers, set the current date and time. Pool Volume To ensure the correct function of ASIN AQUA Oxygen, enter the correct volume of your. Calculate your pool volume in m Length (L) times width (W) times depth (D) is volume (V) - (L × W × D = V).
  • Page 21 To enable this function is necessary to install outdoor air thermometer #8953. • After the freeze protection has been enabled, ASIN AQUA Oxygen checks outdoor temperature. If outdoor temperature is lower than 0 °C, filtration is switched on to circulate the pool water. After 15 minutes will ASIN AQUA Oxygen measure temperature of the pool water.

  • Page 22: Pressure-Type Level

    4 to 10 min, at SPA 1 to 10 min. Delay time after start (upon timer switching on) is time after start for which ASIN AQUA Oxygen does not take any action and it waits for stabilization of a signal from probes.
  • Page 23 Setting Considering that the ASIN AQUA Oxygen water treatment system is efficient in the broad pH range, it is useful to enter the required pH value equal to pH value of water you refill or slightly lower.
  • Page 24 Setting Values Commissioning procedure The water in the pool must be clean without any additives. Ideally fill the pool with fresh water from the water main. 1. Ensure the filtration system runs NONSTOP for 24 hours • Set the required values via the main screen by pressing the appropriate tab (see the chapter Control): •...
  • Page 25 Safety Functions Maximum Number of pH Doses - without Probe Response If the measured pH value does not change even after preset quantity of doses (according to the settings), ASIN AQUA Home stops pH dosing and an error message appears on the display. The other ASIN AQUA Home functions are not limited.
  • Page 26 Probe Calibration When pH is being measured in operation, there may be a difference between the ASIN AQUA Oxygen value and the current pH value measured directly in water. Remove the probe from ASIN AQUA Oxygen, leave the probe connected to Device by means of the cable.
  • Page 27 7,0 pH buffer the 1 minute response must be at least 90%) If the probe meet all above qualifications and the ASIN AQUA Oxygen does not allow calibration it is necessary to upgrade the software to version with...
  • Page 28 LAN cable. Wifi connection If you install the ASIN AQUA Oxygen in place where is no access to your private network by wired connection but your Wifi has enough signal, you can connect the ASIN AQUA Oxygen to your Wifi by use of Wifi extender.
  • Page 29 INTERNET Home network INTERNET 3G / LTE WIFI EXTENDER Wifi extender INTERNET Powerline via 230 V 230 V socket outlet INTERNET...
  • Page 30 The internet connection allows you to use the iPool Live mobile application and monitor your pool on mobile devices wheresoever the internet connection is available. After you connect the ASIN AQUA Oxygen to the internet download the iPool Live application to your smartphone. Application is available for iOS and Android operation systems.
  • Page 31 The web application for detailed monitoring of the pool water quality by means of well-arranged graphs. It shows all the measured parameters as well as ASIN AQUA Oxygen actions up to 30 days back. This application is giving you the detailed information of the pool status and detailed review of all events, taken actions and act levels of monitored items up to 30 days back.

  • Page 32: Injection Valve 4

    In case of public pools, replace #12005 every year. #13087 Replacement rubber band for injection valve pH Probe Maintenance #12014 pH probe Take the pH probe out of ASIN AQUA Oxygen housing and clean it from impurities. Follow the instructions attached to the used probe.

  • Page 33: Closing Valves 2

    Error messages Agent Run Out • Check liquid levels on a regular basis, refill in time. Dosing Pump does not Dose • Leakage in connection of PE tubes or they are damaged. • Failure of dosing pump. Check whether pump is running. If so, check the hose inside the pump for damage or breakage and replace it, if required.
  • Page 34 w.aseko.com...
