- Page 1 USER MANUAL ASIN Salt 2021 ELECTROLY SER FOR DISINFECTION OF THE SW IMMING POOL WATER OF THE SW IMMING POOL WATER Electrode TE–25 Electrode TE–25 w w w.welldana.com w w w.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
-
Page 4: Available Optional Accessories
What do you receive in your box Device ASIN Salt Electrode TE–25 Flowmeter with fi lter #12106 PE Tube 1/4”(6.35 mm) Dowels Sharp knife for cutting Water valves 2 pcs #12006 transparent 10m #12008 and screws of interconnecting hose of interconnecting hose Available optional accessories Biocid certifi... - Page 5 ASIN Salt The ASIN Salt is a microprocessor-controlled electrolysis device. Salt water The ASIN Salt is a microprocessor-controlled electrolysis device. Salt water is electrolyzed by the modern system under the chlorine production, which is electrolyzed by the modern system under the chlorine production, which ensures the complete disinfection of the water and destroys bacteria, viruses ensures the complete disinfection of the water and destroys bacteria, viruses and green algae.
- Page 6 Installation of ASIN Salt ASIN Salt is mounted on the wall in a dry and dust-free environment with 40 °C a temperature that does not fall below +5 ° C and does not exceed +40 ° C. A mounting strip that is to be mounted on the wall is used for fastening. ASIN Salt 40 °C 5 °C...
- Page 7 ASIN Salt Salinity sensor is now in the fi lter 184 mm 13 mm 20 Nm 50 mm Ø 50 mm Gluing Besgo FROM POOL FROM POOL FROM POOL TO POOL Heating...
- Page 8 The connecting fi tting is installed in G1/4” thread. G1/4” thread 6.2x4 hose Aseko provides the unique Speedfi t connecting fi tting for measured water connection to your ASIN Salt. To connect the interconnecting tube, push it LOCKING into the Speedfi t connector and then lock it by pulling back. To disconnect the interconnecting tube, push and hold a circular collet and pull the interconnecting tube out.
-
Page 9: Water Inlet
ASIN Salt Water-cooled Salinity sensor is now in the fi lter POOL WATER INLET WATER INLET Max. pool water pressure 1,5 Bar THE WATER OUTLET Besgo FROM POOL FROM POOL FROM POOL TO POOL Heating... - Page 10 Connection of the ASIN Salt to increase performance The ASIN Salt extension module must be connected to the ASIN AQUA Salt control unit with a cable. To the external control too activate, select the EXT mode on the led display. up to 10 up to 10 modules...
- Page 11 Select the EXT mode up to 10 modules Connection cable to ASIN Salt TE 25 – ASIN AQUA Salt TE 25 – ASIN AQUA Salt TE 25 – ASIN Salt TE 25 – ASIN Salt HEATING TO POOL FROM POOL FROM POOL...
-
Page 12: Power Supply
Power Supply Connection to the mains: Leave the mains switch in the o position. Connect the 230 V / 50 Hz mains cable to ASIN Salt. The mains socket outlet Installation must be must be protected by a residual current device (RCD). protected by a residual Change the mains switch over to the on position. -
Page 13: Operation

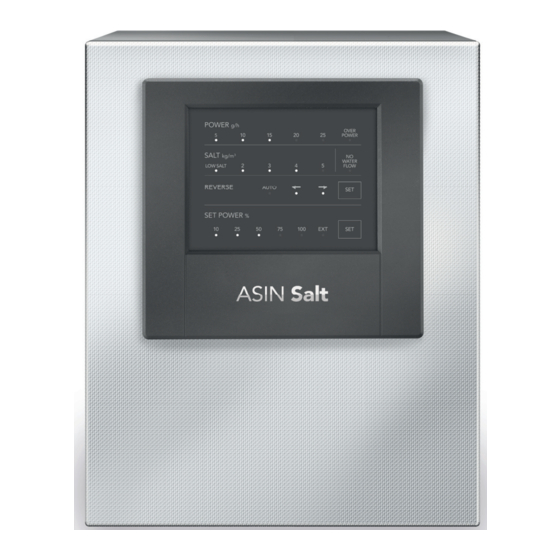

Operation POWER g/h power SALT kg/m salinty REVERSE polarity reverse SET POWER power settings POWER g/h It shows how many grams of chlorine ASIN Salt produces per hour. When the ASIN salt is overloaded, the OVER POWER LED fl ashes red. SALT kg/m Shows the salinity in kg per m of water. -
Page 14: System Start-Up
System start-up MAX POOL VOLUME Salting the pool water Chlorine generating depends on the salt concentration and water temperature. Uncovered As lower the temperature as lower the chlorine production. You can boost the electrolyzer by increasing the salt concentration. 1 kg of salt per cubic meter 60 m of water can increase the electrolyzis power for about 20%. - Page 15 Salt to be used SALT Do not use rock salt. All additives may cause electrode lifetime shortening. ASIN AQUA Salt is designed to electrolyze water with 4 kg/m salt BIOCID CERTIFIED concentration. Electrode may get damaged at lower salt concentrations than 3 kg/m .
-
Page 16: Maintenance
Maintenance To ensure optimal performance, the ASIN Salt requires regular Flowmeter with fi lter and salinity measurement #13264 and salinity measurement #13264 visual inspection and maintenance. Flowmeter with fi lter and salinity measurement Rinse the sieve of the fl ow monitor regularly. Durability of the electrolytic cell Elektrolysezelle TE –... - Page 20 USER MANUAL ASIN Salt w w w.welldana.com w w w.asekopool.com...
