2. Hardware Setup
NOTE:
1. Panel layout available in
2. Press the reset button of AM-SEK to reset the settings to the default values (see Figure 2.1 below).
2.1 LED Indicators
2.1.1 LAN LED
Message
Off
Blinking with Green
Blinking with Orange
2.1.2 COM Port LED
Message
Off
Blinking
2.1.3 RUN LED
Message
On
Appendix A.3.1
DC Jack 5VDC
Reset Button
DC 9~30V

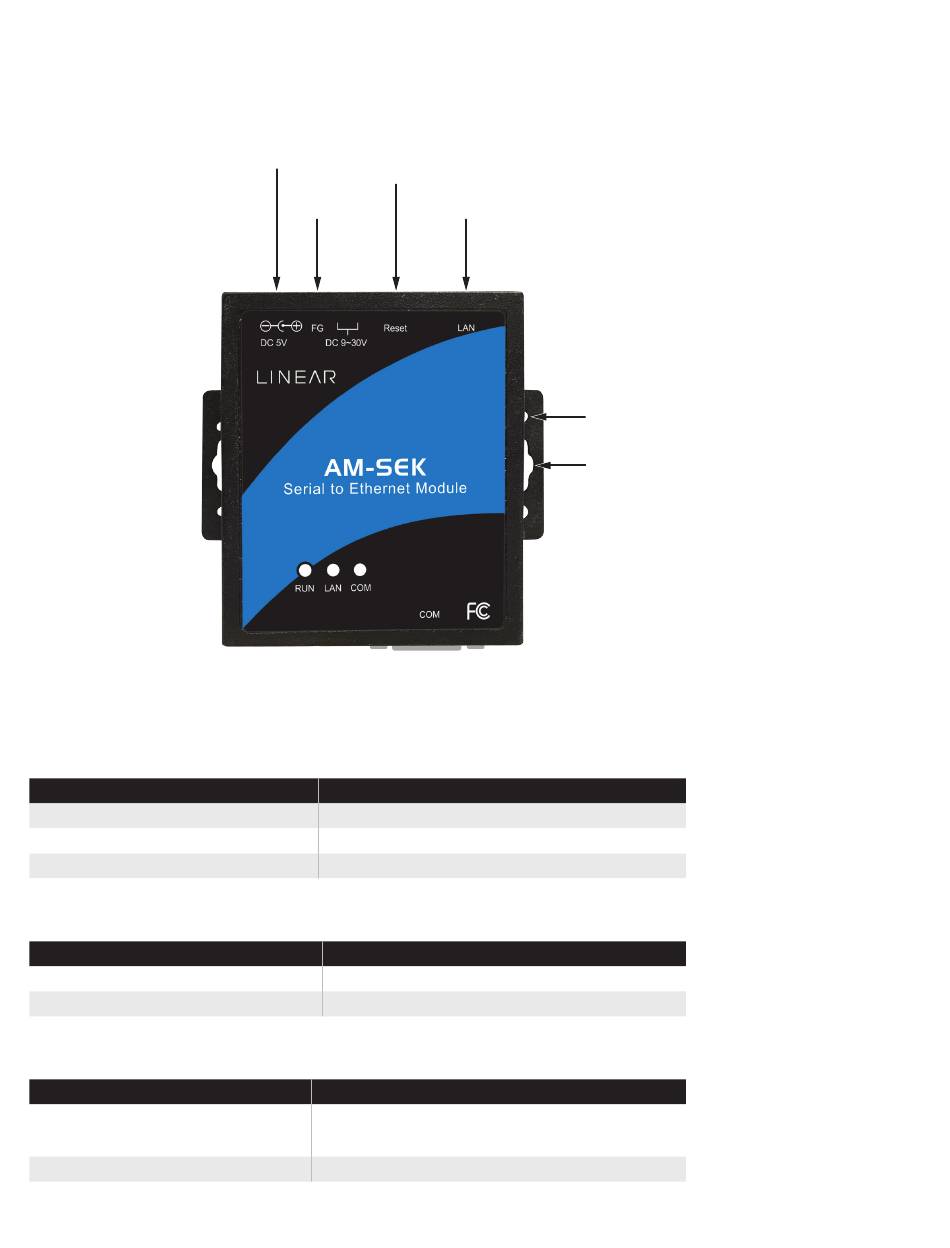

Figure 2.1 AM-SEK interfaces
Description
Ethernet Disconnected
Data is transmitting on Ethernet for 100Mbps
Data is transmitting on Ethernet for 10Mbps
Table 1. LAN LED Message
Description
No data is transmitting on COM port
Data is transmitting on COM port
Table 2. COM Port LED Message
Description
Jumper JP1 Pin1 and Pin2 are shorted to disable
AP firmware running
AP firmware is running normally
Table 3. RUN LED Message
RJ45 10/100 Mpbs
DIN-Rail Screw Hole
Wall Mount Screw Hole
9
