Linear AM-SEK Quick Start Manual

AM-SEK
Serial-to-Ethernet Converter Kit
• Serial-to-Ethernet Module developed for Linear's
AM3Plus, AE1000Plus, and AE2000Plus panels
• Remotely connect, control, program, manage, and monitor
access panels over existing LAN and/or the Internet
• Offers an alternative to direct RS-232 serial connection
to Node 1 of AB2000 and AXNET networks
• IP address and virtual COM port are easy to
®
configure using Windows
• 10/100 Mbps fast Ethernet full duplex auto negotiation
• Serial connection speed 38.4 Kbps
• Housed in a metal case with DIN-rail and wall-mounting tabs
• 15 kV ESD protection for serial port
The AM-SEK Serial-to-Ethernet Kit provides a standard network
TCP/IP connection for Linear's AM3Plus, AE1000Plus, and
AE2000Plus access controllers. The module can be used as
an alternative to a traditional telephone modem typically
used for remote access to Plus panel controllers.
The converter module connects between the Plus panel's
RS-232 Serial port and the installation's network. Access to
the network can be through a Local Area Network (LAN)
or directly to a Wide Area Network (WAN). Typically the
module is connected to a port on a router located on the
installation's LAN.
In Plus panel networks, with multiple panels interconnected
via RS-485 wiring, the module connects to Node #1 of an
AXNET network, or Node #1 of any AB2000 network.
For easy configuration and setup, a Windows
software utility is included on the installation CD. The
utility software is used for setting the module's IP address
and the computers virtual COM port. The utility software
is compatible with Windows XP
®
Windows 7 .
Note: LIN-501C Module is only available in the AM-SEK Kit and is
not sold separately.
based utility software
®
based
® ®
, Windows Vista , and
USA & Canada (800) 421-1587 & (800) 392-0123
(760) 438-7000 - Toll Free FAX (800) 468-1340
www.linearcorp.com
Serial-to-Ethernet Kit Model AM-SEK
Available in an Installer Friendly Kit!
Convenient and cost effective
Model: AM-SEK Order #: ACP00964

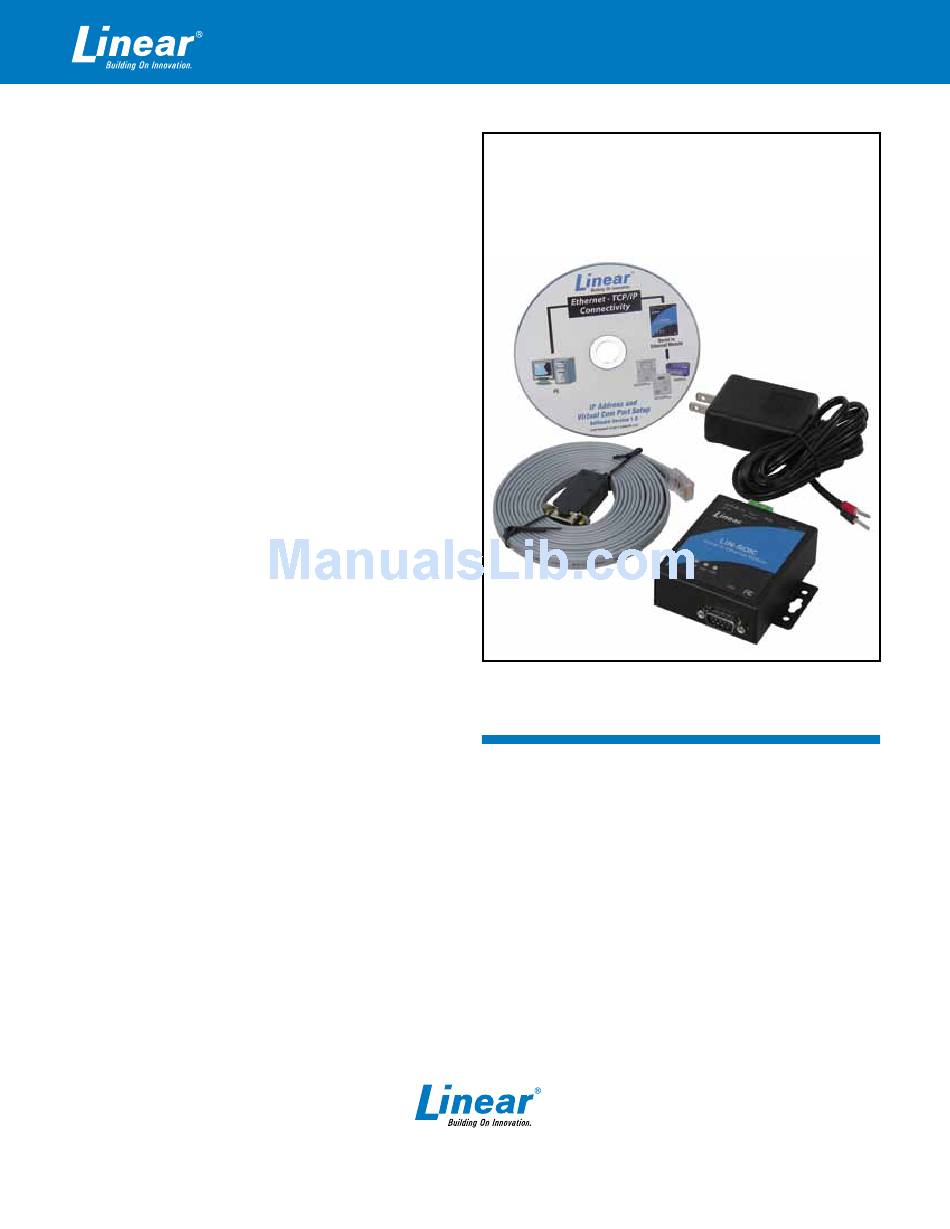

AM-SEK Kit Includes:
Serial Cable
LIN-501C
Serial-to-Ethernet
Module

General Specifications

Power: 5 VDC from plug-in power supply (included), also
supports a 9-30 volt DC redundant input from an external
power supply
Network Connection: 100BASE-T RJ-45 connector
Network Speed: Fast Ethernet 10/100 Mbps
Serial Connection: Male DB9 for connection with A2C/DB9
serial cable (included)
Serial Port Speed: 38.4 Kbps
Mounting: DIN-rail or screw mounting
Dimensions (LIN-501C Module): 3-1/2" W x 3-3/4" H x 1" D
Weight: 6-1/2 ozs.
Software CD
& Quick Start
Guide
Power Adapter
