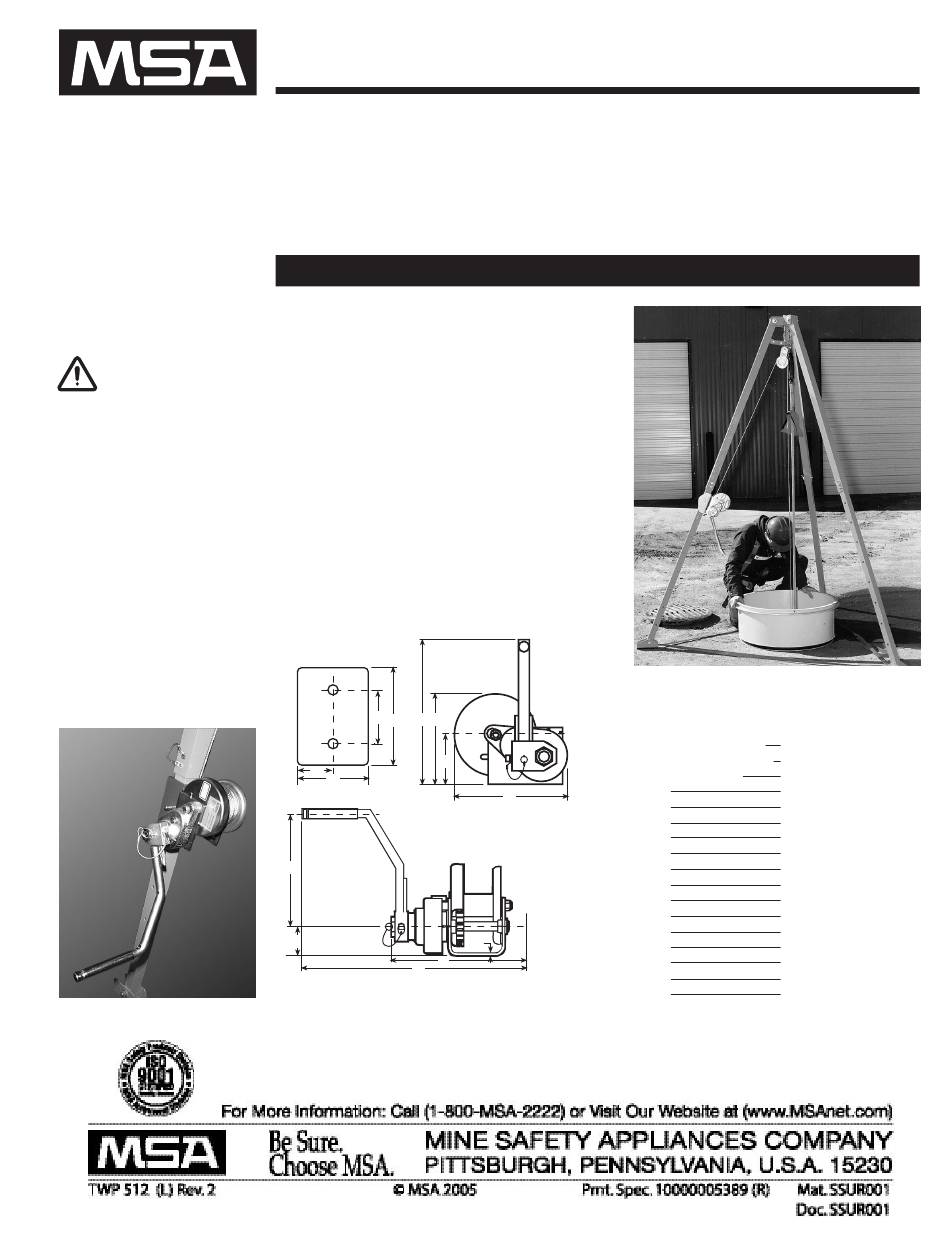

SURE STRONG™ WORK WINCH
Instructions for Application, Operation, Maintenance
& Inspection. Please read this manual. This
information is vital to your safety.
Specification, System A
Sure-Strong™ Work Winch
P/N: SCE1074021050
• 3/16" (4.7mm) x 50 ft (15.2m), galvanized wire
rope installed, c/w 2.0 Ibs (1.0kg) line weight and
forged locking swivel hook
BE
• total weight 22 Ibs (10kg)
• zinc chromate finish
• automatic load brake
• gear ratio 2.85:1
• tripod mounting bracket and locking pin
• 10" (25cm) removable winch handle with
mounting hardware
• safe working load 300 Ibs (136kg)
• rescue working load 600 lbs (272kg)
L
M
J
K
G
E
B
• e-mail: rose@msanet.com
H C
D
A
handle
C L
rotation
T
F
SCE1074021050
REF:# SSUR001 DATE: 08/13/03
WINCH
DIMENSIONS
inch
Spool diameter
1.50
Flange diameter
5.25
Spool width
1.84
A
7.27
B
16.44
C
6.14
D
3.37
E
2.00
F
8.05
G
10.32
H
12.76
J
1.84
K
3.68
L
2.82
M
5.00
S
0.43
T
0.18
cm
3.81
13.34
4.67
18.47
41.76
15.60
8.56
5.08
20.45
26.21
32.41
4.67
9.35
7.16
12.70
1.09
0.46
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MSA SURE STRONG SCE1074021050
Summary of Contents for MSA SURE STRONG SCE1074021050
- Page 1 REF:# SSUR001 DATE: 08/13/03 MSA Corporate Headquarters: P.O. Box 426, Pittsburgh, PA 15230, USA Phone: 1-800-672-2222 Fax: 1-800-967-0398 • Web Site: www.msanet.com • e-mail: rose@msanet.com SURE STRONG™ WORK WINCH Instructions for Application, Operation, Maintenance & Inspection. Please read this manual. This information is vital to your safety.
-
Page 2: Installation
POSSIBLE, INSTALL THE WORK WINCH BEFORE EXPOSING THE OPENING. NOTE: LUBRICATE WINCH BEFORE INSTALLATION FOR INSTALLATION ON 10' TRIPODS, FIRST UNWIND 15 FEET OF CABLE, INSTALL PULLEY. THEN EXTEND TRIPOD LEGS TO WORKING HEIGHT AND INSTALL WINCH. Copyright © 2001 MSA... - Page 3 (1). • Install pulley to the central anchor eye of the tripod by coupling it with a MSA SRCC643 carabiner. (5) • Apply tension to cable, unwind approximately five feet from winch drum (turn winch handle counter clockwise) •...
- Page 4 THE OPENING. SERIOUS INJURY OR FAILURE OF RETRIEVAL SYSTEM MAY RESULT. • Wire cable is installed when the system is assembled by the manufacturer. MSA Surety is not responsible for the integrity of a system in which the wire cable has been replaced or modified.
-
Page 5: Maintenance And Storage
• listen for unusual noises and look for signs of damage as you operate the winch; 5. MSA or persons or entities authorized in writing by the • make sure the wire rope winds evenly and tightly onto manufacturer shall make repairs to equipment. No the drum. - Page 6 MSA. If the buyer chooses to disregard • Do not wrap the wire rope around a load. Use a lifting this warning, the buyer assumes responsibility for the sling or other approved lifting device.
- Page 7 Maximum Arrest Force: 900 lb (4 kN) Work Load: 300 lb (1.3 kN) LENGTH 40 ft. (12.2 m) 2.4 ft. (0.73 m) 1.1 ft. (0.34 m) 185 ft. (56.4 m) 9.7 ft. (2.96 m) 3.5 ft. (1.07 m) Copyright © 2001 MSA...
- Page 8 Minimum Clearance = 3.0 ft + 3.0 ft + 0.5 ft + 3.3 ft + Elongation Sure-Strong™ System Lifelines 5/8" x 40' MC = 9.8 ft + 2.4ft = 12.2 ft 5/8" x 185' MC = 9.8 ft + 9.7ft = 19.5 ft Copyright © 2001 MSA...
