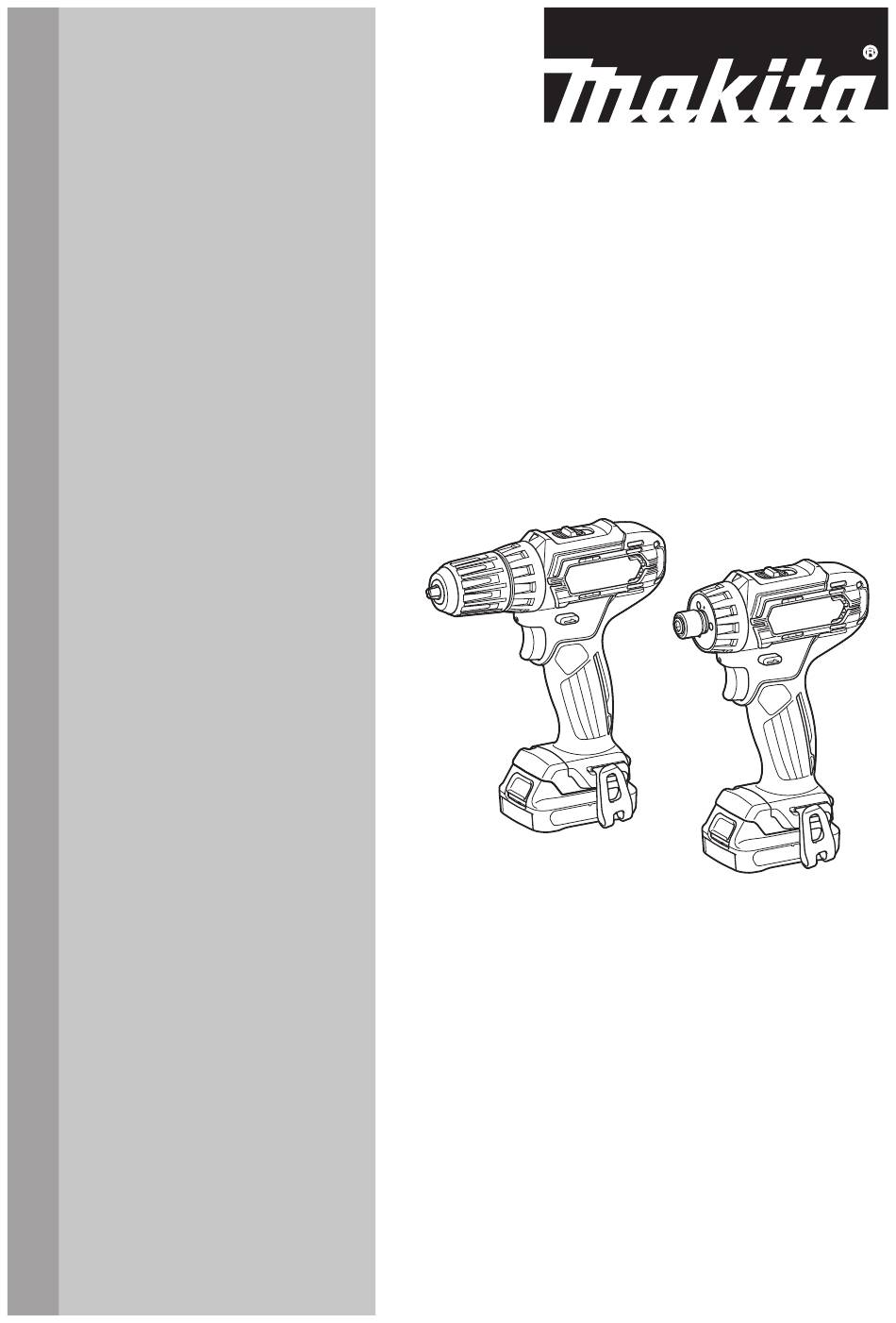

- Page 1 INSTRUCTION MANUAL Cordless Driver Drill FD09 FD10 IMPORTANT: Read Before Using.
-
Page 2: Specifications
SPECIFICATIONS Model: FD09 FD10 Drilling capacities Steel 10 mm (3/8") Wood 21 mm (13/16") Fastening capacities Wood screw 5.1 mm x 63 mm (7/32" x 2-1/2") Machine screw M6 (1/4") No load speed (RPM) High (2) 0 - 1,700 /min... - Page 3 Power tools can produce electromagnetic fields Store idle power tools out of the reach of chil- (EMF) that are not harmful to the user. However, dren and do not allow persons unfamiliar with users of pacemakers and other similar medical the power tool or these instructions to operate devices should contact the maker of their device and/ the power tool.
-
Page 4: Cordless Driver Drill Safety Warnings
Follow your local regulations relating to dis- posal of battery. 12. Use the batteries only with the products specified by Makita. Installing the batteries to non-compliant products may result in a fire, exces- sive heat, explosion, or leak of electrolyte. SAVE THESE INSTRUCTIONS. -
Page 5: Functional Description
CAUTION: CAUTION: Only use genuine Makita batteries. Always install the battery cartridge Use of non-genuine Makita batteries, or batteries that fully until the red indicator cannot be seen. If not, have been altered, may result in the battery bursting it may accidentally fall out of the tool, causing injury to causing fires, personal injury and damage. It will also you or someone around you. void the Makita warranty for the Makita tool and charger. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is... -
Page 6: Switch Action
When the reversing switch lever is in the neutral posi- This tool is equipped with an electric brake. If the tool tion, the switch trigger cannot be pulled. consistently fails to quickly stop after the switch trigger is released, have the tool serviced at a Makita service center. Speed change Lighting up the front lamp ► 1 . Speed change lever ►... -
Page 7: Adjusting The Fastening Torque
Position of Speed Torque Applicable speed operation change lever High Heavy load- ing operation High Light loading operation To change the speed, switch off the tool first. Select the "2" side for high speed or "1" for low speed but high torque. Be sure that the speed change lever is set to the correct position before operation. -
Page 8: Installing Hook
When installing the hook, always Installing or removing driver bit/ secure it with the screw firmly. If not, the hook may come off from the tool and result in the personal socket bit injury. For Model FD10 (optional accessory) 12 mm 9 mm (15/32”) (3/8”) ► 1 . Groove 2. Hook 3. Screw Use only the driver bit/socket bit shown in the figure. Do... -
Page 9: Screwdriving Operation
Installing driver bit holder Screwdriving operation Optional accessory CAUTION: Adjust the adjusting ring to the proper torque level for your work. CAUTION: Make sure that the driver bit is inserted straight in the screw head, or the screw and/or driver bit may be damaged. Place the point of the driver bit in the screw head and apply pres- sure to the tool. Start the tool slowly and then increase the speed gradually. Release the switch trigger as soon as the clutch cuts in. -
Page 10: Using Holster
Thread a waist belt or similar through holster holder. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. ► 1 . Holster holder 2. Waist belt... -
Page 11: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. • Drill bits • Driver bits •...
