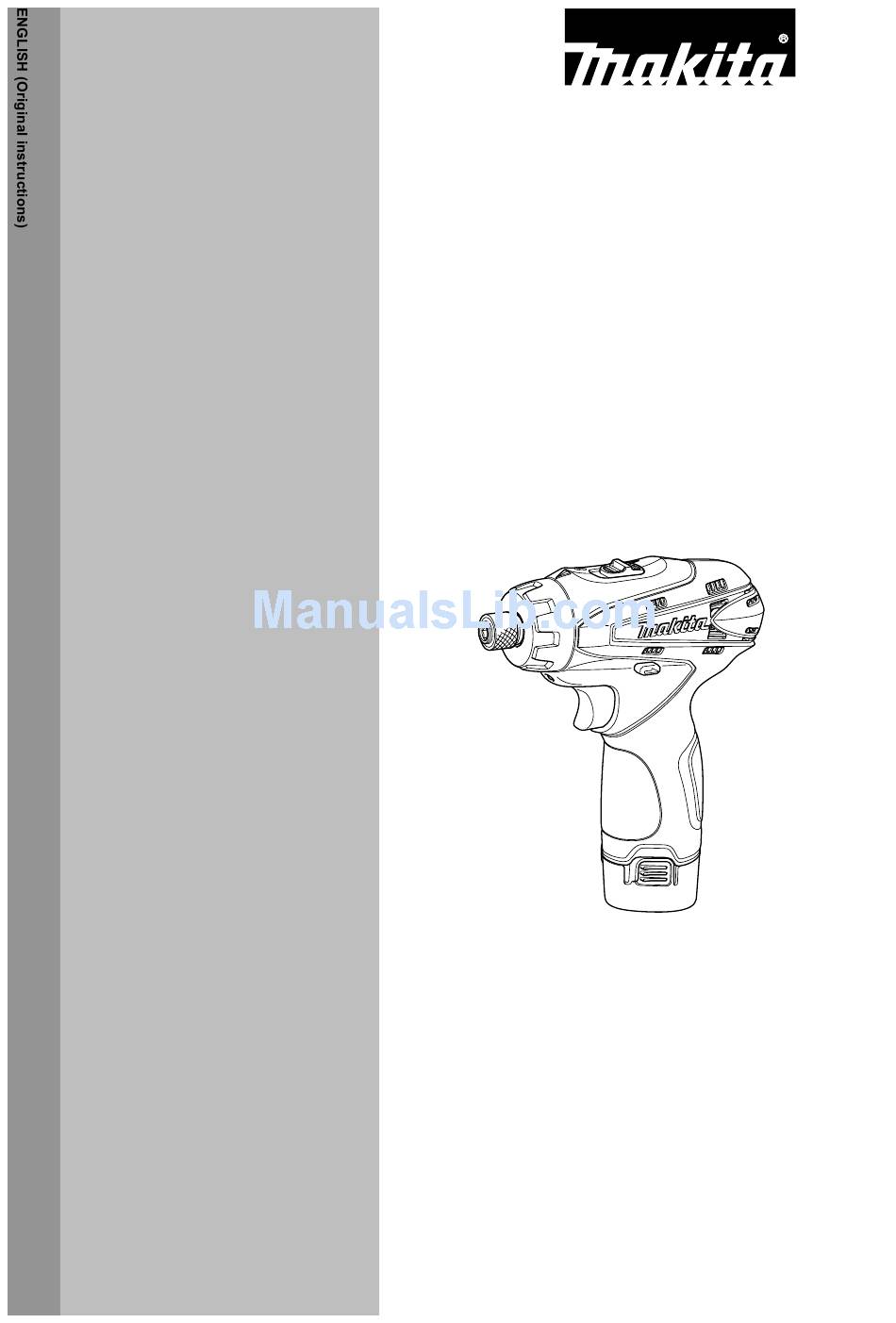

- Page 1 INSTRUCTION MANUAL Cordless Driver Drill DF030D 008796 IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model DF030D Steel 10 mm Wood 21 mm Capacities Wood screw 5.1 mm x 63 mm Machine screw High (2) 0 - 1,300 No load speed (min Low (1) 0 - 350 Chuck capacity 6.35 mm... - Page 3 When operating a power tool outdoors, use an before making any adjustments, changing extension cord suitable for outdoor use. Use accessories, or storing power tools. Such of a cord suitable for outdoor use reduces the risk preventive safety measures reduce the risk of of electric shock.
-
Page 4: Cordless Driver Drill Safety Warnings
GEB088-1 If operating time has become excessively shorter, stop operating immediately. It may CORDLESS DRIVER DRILL result in a risk of overheating, possible burns SAFETY WARNINGS and even an explosion. If electrolyte gets into your eyes, rinse them Use auxiliary handle(s), if supplied with the out with clear water and seek medical tool. -
Page 5: Functional Description
In this situation, release the switch trigger on FUNCTIONAL DESCRIPTION the tool and stop the application that caused the tool to become overloaded. Then pull the switch trigger again to restart. CAUTION: Low battery voltage: Always be sure that the tool is switched off and the •... - Page 6 Reversing switch action Adjusting the fastening torque 1. Reversing 1. Adjusting ring switch lever 2. Graduation 3. Pointer 008802 008804 This tool has a reversing switch to change the direction The fastening torque can be adjusted in 18 steps by of rotation.
-
Page 7: Screwdriving Operation
Always insert the battery cartridge all the way until • B=14mm (Note) Makita bits are these types. it locks in place. If not, it may accidentally fall out of the tool, causing injury to you or someone To install these types of bits, follow around you. -
Page 8: Using Holster
Drilling in wood Using holster When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide CAUTION: screw makes drilling easier by pulling the bit into the Do not use for tools such as a drill with a bit •... -
Page 9: Optional Accessories
Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Drill bits • Screw bits • Socket bits •... - Page 12 Makita Corporation www.makita.com 884796C9...
