Signature SCA2604XNF User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

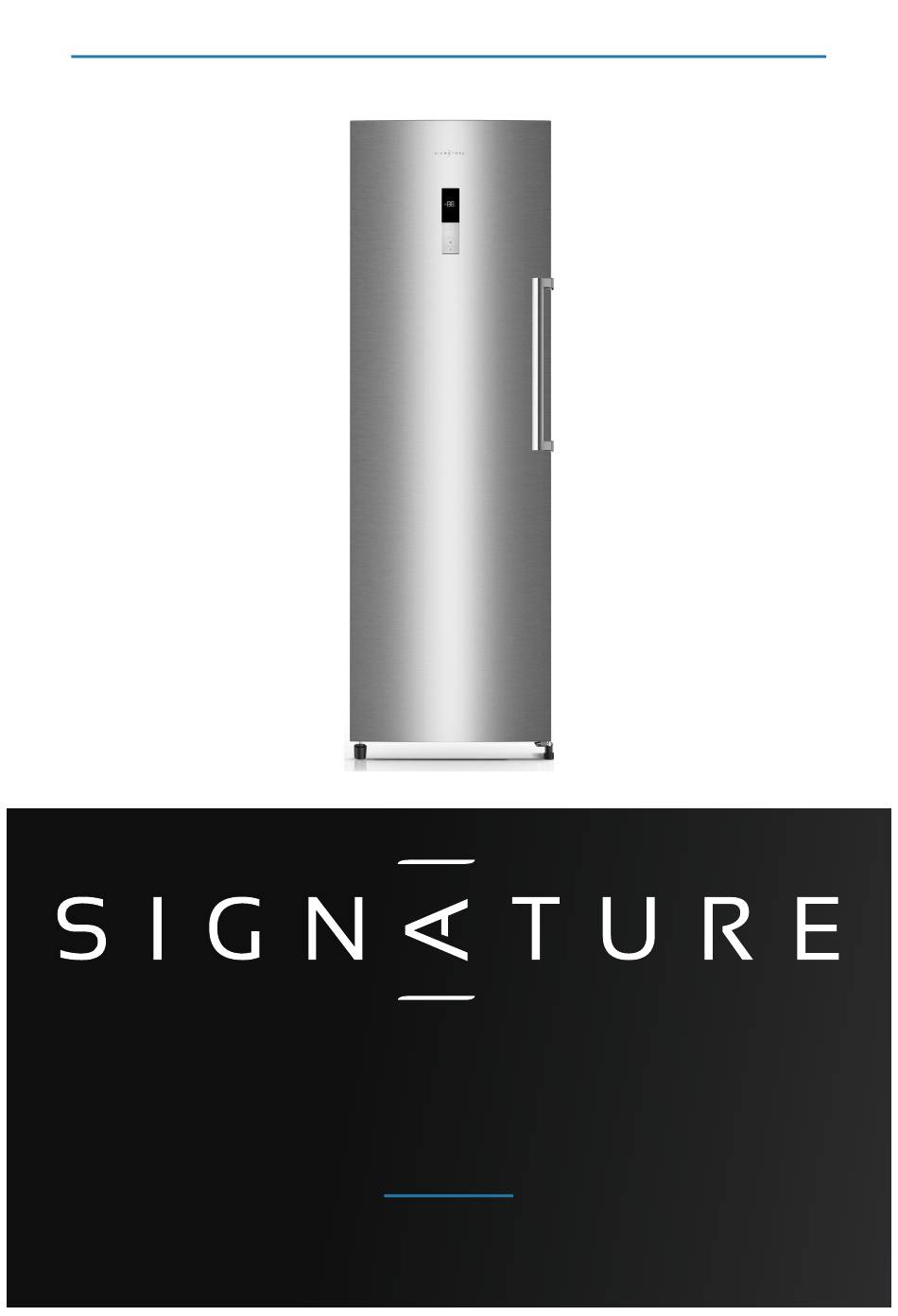

U S E R ' S M A N U A L - E N
U P R I G H T
F R E E Z E R
S C A 2 6 0 4 X N F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCA2604XNF and is the answer not in the manual?

Questions and answers

Related Manuals for Signature SCA2604XNF

Summary of Contents for Signature SCA2604XNF

  • Page 1 U S E R ’ S M A N U A L - E N U P R I G H T F R E E Z E R S C A 2 6 0 4 X N F...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important safety instructions - 37 - Structure illustration - 44 - Transport and handing - 45 - Installation - 45 - First use - 46 - Test - 47 - Display controls - 47 - Storage of food - 50 - Helpful hints and tips - 53 -...

  • Page 3: Important Safety Instructions

    This product is for household use only! Please read these instructions carefully before the first use of this product and save this manual for your future reference. IMPORTANT SAFETY INSTRUCTIONS This warning is only for EUROPEAN market only! When using an electrical appliance, basic precautions should always be followed, including the following: 1.
  • Page 4 clear of obstruction. 5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. 6. WARNING: Do not damage the refrigerant circuit. 7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  • Page 5 respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. – Clean regularly surfaces that can come in contact with food and accessible drainage systems. –...
  • Page 6 parts at an authorized service dealers. 19. The motor is permanently lubricated and will require no oil. 20. The appliance must be positioned so that the plug is accessible. 21. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas.
  • Page 7 30. To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water. 31. Do not use outdoors or in wet conditions. 32. Never pull the cord to disconnect it from the outlet.
  • Page 8 and the appliance should not be used if the cable is damaged. 43. Regarding the information for replacing of the lamps of the appliance, thanks to refer to the paragraph “CLEANING AND CARE” of the manual. 44. Regarding the information pertaining to the installation, handing, maintenance, servicing and disposal of the appliance, thanks to refer to the p a r a g r a p h “...
  • Page 9 CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the s u s t a i n a b l e r e u s e o f m a t e r i a l resources.

  • Page 10: Structure Illustration

    STRUCTURE ILLUSTRATION 1. Balcony 2. Light Switch 3. Glass Shelf 4. Drawer 5. Adjustable Foot Note: The glass shelves and the crisper can be removed and inserted for cleaning and storing of food according to the appliance. -44-...

  • Page 11: Transport And Handing

    TRANSPORT AND HANDING When transportation, hold the base and lift the refrigerator carefully with an angle inferior at 45 degree. Never hold the door handle as support. Never place it upside down nor horizontally. Push refrigerator on its basis and place it thanks to its roller feet.

  • Page 12: First Use

    30cm 30cm 50-75mm FIRST USE Before the use of the appliance, remove all the packages, including bottom cushion and foam pads and rubber belts in the appliance. Adjust the feet and clear the outside and inside of the appliance with warm cloth. Do not start the appliance immediately after vertical placement.

  • Page 13: Test

    TEST Clean the parts of the appliance with lukewarm water on a soft cloth or with a neutral detergent and with clear water, then wipe them dry. Notes: Electric parts of the appliance can only be wiped by dry cloth. The electronic control panel default temperature setting displays -18°C when turn on electricity, compressor begin to work, open the door and the...
  • Page 14 Controlling the temperature We recommend that when you start your appliance for the first time, the temperature is set to -18°C. If you want to change the temperature, follow the instructions below. Caution! When you set a temperature, you set an average temperature for the whole freezer cabinet.
  • Page 15 Super freeze Super Freeze will quickly lower the temperature within the freezer so food will freeze faster. This can lock in the vitamins and nutrients of fresh food and keep food fresh longer. In case of the maximum amount of food to be frozen, please wait about 24h.

  • Page 16: Storage Of Food

    STORAGE OF FOOD Your appliance has the accessories as the “Structure illustration” showed in general, with this part instruction you can have the right way to storage your food. The glass shelves and crisper can be removed to store food if needed. Note: Food is not allowed to touch directly all surfaces inside the appliance.
  • Page 17 and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen. The following foods are suitable for freezing: · Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked...
  • Page 18 Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellfish, 2 months...

  • Page 19: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS We recommend that you follow the tips below to save energy. Try to avoid keeping the door open for long · periods in order to conserve energy. Ensure the appliance is away from any sources of ·...

  • Page 20: Cleaning And Care

    removal from the freezer compartment, will probably cause frost burns to the skin. · It is recommended to label and date each frozen package in order to keep track of the storage time. Hints for the storage of frozen food ·...
  • Page 21 Exterior cleaning · To maintain good appearance of your appliance, you should clean it regularly. Wipe the digital panel and display panel with a · clean, soft cloth. Spray water onto the cleaning cloth instead of · spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
  • Page 22 time when the supply of food stocks are low and proceed as follows: 1. Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the thawing process. 2.

  • Page 23: Door Reverse

    DOOR REVERSE The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.
  • Page 24 7. Lift the door upwards to disengage it from the bottom hinge, put the door to one side and lay it down gently on a padded surface. 8. Screw off the bottom hinge part and foot. 9. Disassemble the hinge to four parts: (3)foot;...
  • Page 25 14. Open the cover on door right(7) and take out the wire. C o n n e c t t h e e l e c t r i c a l connector. 15. Install the light switch(1) to right hinge cover(supplied with the appliance) and connect the wire.
  • Page 26 Installing the handles This appliance has been built with external handle, which is in poly bag. Please follow instruction below to install them: 1. Remove two screws(8) by a cross screwdriver. 2. Take out the handles(9) and fix it with the two screws(8).

  • Page 27: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.
  • Page 28 Problem Possible cause & Solution The sounds below are quite normal: · Compressor running noises. · Air movement noise from the small fan motor in the freezer compartment or other compartments. · Gurgling sound similar to water boiling. · Popping noise during automatic defrosting.
  • Page 29 Problem Possible cause & Solution You may have left the doors open too Temperature long or too frequently; or the doors are inside is too kept open by some obstacle; or the warm appliance is located with insufficient clearance at the sides, back and top. Temperature Increase the temperature by following the inside is too...

  • Page 30: Technical Specifications

    TECHNICAL SPECIFICATIONS CONGARM SCA2604XNF Commercial reference : 4894223220231 Household refrigerating appliance model category Upright-freezer Energy efficiency class A+++ (the highest energy efficiency) to D (the lowest efficiency) Annual energy consumption (AEc) 318 kWh/an Energy consumption of 318 kWh per year, calculated based on the result obtained for 24 hours under standardized test conditions.
  • Page 31 ENERG SCA2604XNF + + + + + + + + + + kWh/annum 2010/1060 Notes: 318 kWh per year, based on the results of standard tests tested over a 24-hour period. The actual energy consumption will depend on the mode of use and location of the device.
  • Page 32 Tous les papiers se trient et se recyclent. BUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France...
