ROOM AIR CONDITIONER
INSTALLATION INSTRUCTIONS
Before using the air conditioner,please read this manual carefully.
Please keep this manual properly for future use.
No.0010576506 B
DC INVERTER
OUTDOOR UNIT
http://splitoff.ru/tehn-doc.html
,
AU142AAERA
AU182AFERA
AU242AGERA
AU362AHERA
,
,
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AU142AAERA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Haier AU142AAERA

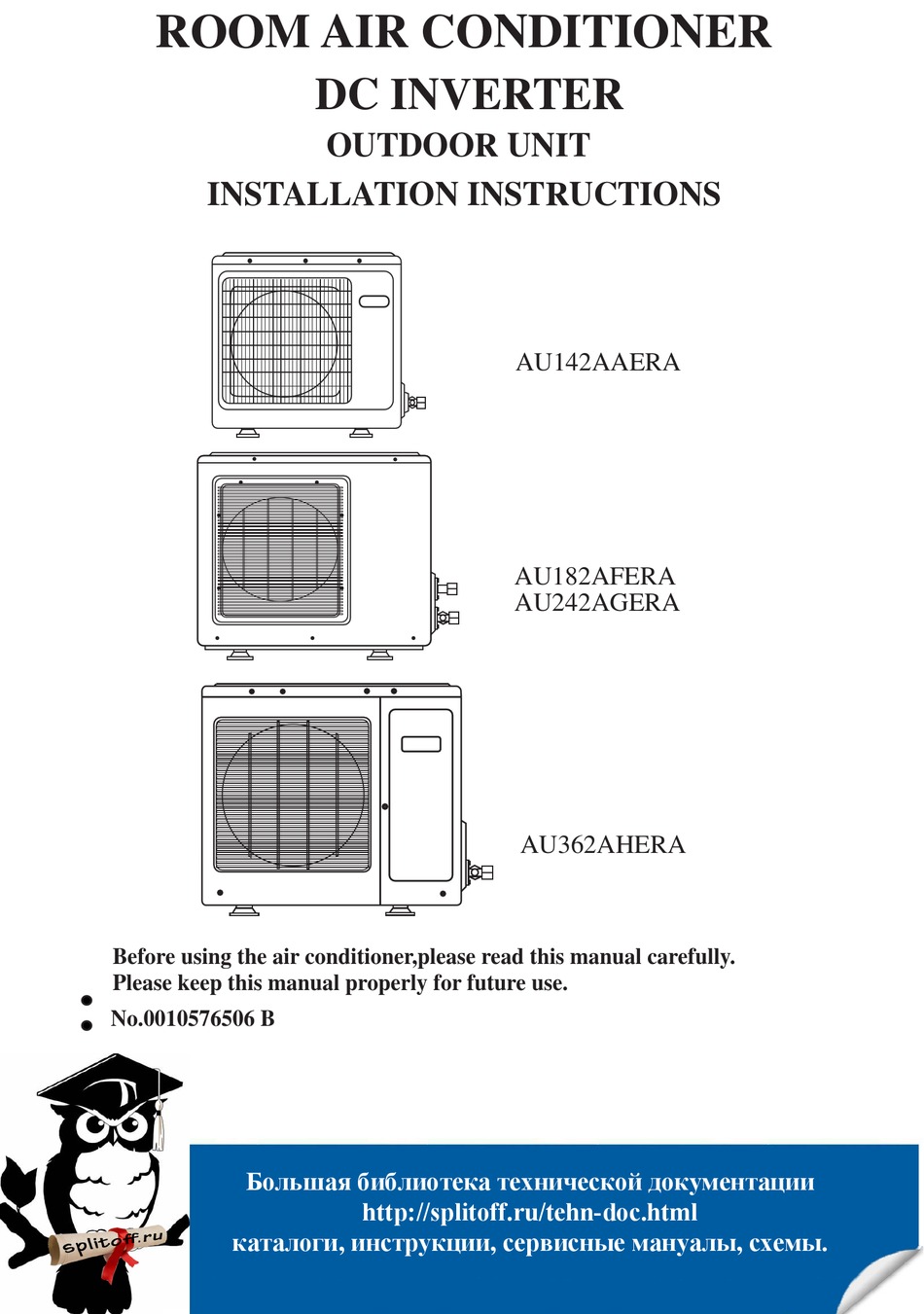

  • Page 1 ROOM AIR CONDITIONER DC INVERTER OUTDOOR UNIT INSTALLATION INSTRUCTIONS AU142AAERA AU182AFERA AU242AGERA AU362AHERA Before using the air conditioner,please read this manual carefully. Please keep this manual properly for future use. No.0010576506 B http://splitoff.ru/tehn-doc.html...
  • Page 2 CONTENTS Name of Parts------------------------------------------------------------------1 Safety Cautions--------------------------------------------------------------2-7 Read Before Installation--------------------------------------------------8-12 Installation Procedure---------------------------------------------------13-22 : http://splitoff.ru/tehn-doc.html...
  • Page 3: Name Of Parts

    Name of Parts AU142AAERA AU182AFERA AU242AGERA Air inlet Air inlet Air outlet Air outlet Compressor Compressor (Inside of unit) (Inside of unit) Air inlet AU362AHERA Air outlet Compressor (Inside of unit) : http://splitoff.ru/tehn-doc.html...
  • Page 4: Safety Cautions

    Safety Cautions Carefully read the following information in order to operate the air conditioner correctly. Below are listed three kinds of Safety Cautions and Suggestions. Incorrect operations may result in severe consequences of death or serious injuries. WARNING! CAUTION! Incorrect operations may result in injuries or machine damages; in some cases may cause serious consequences.
  • Page 5 Safety Cautions WARNING! No goods or nobody is permitted to Installed electrical-leaking circuit placed on or stand on outdoor unit. breaker. It easily cause electrical shock without The falling of goods and people may circuit breaker. cause accidents. Air-conditioner can't be installed in the environment with inflammable gases because the inflammable gases near to air-conditioner may cause fire...
  • Page 6 Safety Cautions Warning ! Have the unit professionally installed. Be sure to carefully follow each step in this handbook when installing the unit. Improper installation by an unqualified person Improper installation may result in water leak, may result in water leak, electric shock, or fire. electric shock, smoke or fire.
  • Page 7 Safety Cautions Warning ! Do not touch the fins on the heat exchanger When installing the unit in a small room, with bare hands:they are sharp and safeguard against hypoxia that results from dangerous. leaked refrigerant reaching the threshold level. In the event of a refrigerant gas leak, Consult the dealer for necessary measures to take.
  • Page 8 Safety Cautions Caution! Store the piping to be used during Do not use a charging cylinder. installation indoors, and keep both ends of The use of charging cylinder will change the the piping sealed until immediately before composition of the refrigerant and lead to power brazing.(keep elbows and other joints loss.
  • Page 9 Safety Cautions Before installing(Relocating) the Unit or Performing Electric Work Caution! Ground the unit. Do not spray water on the air conditioners or immerse the air conditioners in water. Do not connect the grounding on the unit to gas Water on the unit presents a risk of electric shock. pipes,water pipes, lightning rods,or the grounding terminals of telephones.
  • Page 10: Read Before Installation

    Read Before Installation Items to Be Checked <1>. Verify the type of refrigerant used by the unit to be serviced. Refrigerant Type: R410A <2>. Check the symptom exhibited by the unit to be serviced. Look in this sercice handbook for sympeoms relating to the refrigerant cycle. <3>.
  • Page 11 Read Before Installation 2. Tools and materials that may be used with R410 with some restrictions Tools/Materials Notes Gas leak detector Detection of gas leaks The ones for HFC type refrigerant may be used. Vacuum Pump Vacuum drying May be used if a reverse flow check adaptor is attached.
  • Page 12 Read Before Installation <Piping Materials/Radial Thickness> Use pipes made of phosphorus deoxidized copper. Since the operation pressure of the units that use R410A is higher than that of the units for use with R22, use pipes with at least the radial thickness specified in the chart below. (Pipes with a radial thickness of 0.7mm or less may not be used.) Size(mm) Size(inch)
  • Page 13 Read Before Installation *The table shows the standards in Japan. Using this table as a reference, choose pipes that meet the local standards. Airtightness Test No changes from the conventional method .Note that a refrigerant leakage detector for R22 or R407C cannot detect R410A leakage.
  • Page 14 Read Before Installation Charging Refrigerant R410A must be in a liquid state when charging. Reasons : 1. R410A is a pseudo-azeotropic refrigerant (boiling point R32= -52*, R125= -49*) and can roughly be handled in the same way as R22; however, be sure to fill the refrigerant from the liquid side, for doing so from the gas side will somewhat change the composition of the refrigerant in the cylinder.
  • Page 15: Installation Procedure

    Installation Procedure Installation of outdoor unit 1. Accessories Edging "Edging" for protection of electric wires from an opening edge. 2. Selection of the place of installation Select the place of installation satisfying the following conditions and, at the same time, obtain a consent from the client or user. Place where air circulates.
  • Page 16 3. Installation of outdoor unit (1) Installation Fix the unit in a proper way according to the condition of a place where it is installed by referring to the following . AU142AAERA AU182AFERA AU242AGERA AU362AHERA (a) Concrete foundation (b) Foundation anchor Unit...
  • Page 17 Installation Procedure Installation of outdoor unit AU182AFERA Power Wiring Terminal Power Wiring Distribution Hole AU242AGERA Power Wiring Terminal Power Wiring Distribution Hole : http://splitoff.ru/tehn-doc.html...
  • Page 18 (1) Outline piping Flare connection 3-way stop valve Gas pipe Outdoor Indoor unit unit Liquid pipe Flare connection 2-way stop valve AU142AAERA AU182AFERA 3-way stop valve Flare connection Gas pipe Indoor Outdoor unit unit Liquid pipe 3-way stop valve AU242AGERA AU362AHERA : http://splitoff.ru/tehn-doc.html...
  • Page 19 Installation Procedure Refrigerant piping (2) Piping size Liquid pipe 6.35x0.8mm AU142AAERA AU182AFERA Gas pipe 12.7x1.0mm 9.52x0.8mm Liquid pipe AU242AGERA AU362AHERA Gas pipe 15.88x1.0mm 90+0.5 Install the removed flare nuts to the pipes to be connected, then flare the pipes. (3) Limitations for one way piping length and vertical height difference.
  • Page 20 Installation Procedure Refrigerant piping 5. Air discharging method After finishing connection of refrigerant pipe, it shall perform air tightness test. The air tightness test adopts nitrogen tank to give pressure according to the pipe connection mode as the following figure shown. The gas and liquid valve are all in close state.
  • Page 21 If the connecting pipe (L) exceeds 5m, it shall charge Mg additional refrigerant per meter. That is: Refrigerant charging amount = (L-5) x M (g) For AU142AAERA, AU182AFERA, M=30 For AU242AGERA, AU362AHERA, M=50 Only in COOLING operation can charge the additional refrigerant.
  • Page 22 The wiring method should be in line with the local wiring standard. The power cable and connecting cable should be self-provided. For AU142AAERA,AU182AFERA the power cable should be H05RN-F 3G 2.5mm For AU242AGERA, the power cable should be H05RN-F 3G 4.0mm The connecting cable should be H05RN-F 4G 0.75mm...
  • Page 23 Make wiring to supply power to the outdoor unit, so that the power for the indoor unit is supplied by terminals. For the detailed wiring connection with the indoor units, see the corresponding indoor operation and instruction manual. For: AU142AAERA, AU182AFERA , AU242AGERA 1 2 3 N L INDOOR UNIT TERMINAL BLOCK...
  • Page 24 Installation Procedure Electric wiring (1) Before starting test run (for all Heat pump models) Confirm whether the power source breaker (main switch) of the unit has been turned on for over 12 hrs to energize the crankcase heater in advance of operation. (2) Test run Run the unit continuously for about 30 minutes, and check the following.
  • Page 25 HAIER GROUP Qingdao Haier Air Conditioner Electric Co., Ltd. Address: Haier Garden ,Qianwangang Road , Economic Development Zone, Qingdao ,Shandong 266500, P.R.China Web Site: http://www.haier.com http://splitoff.ru/tehn-doc.html...

This manual is also suitable for:

Au182aferaAu242ageraAu362ahera
