Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2
through Figure 2-4.

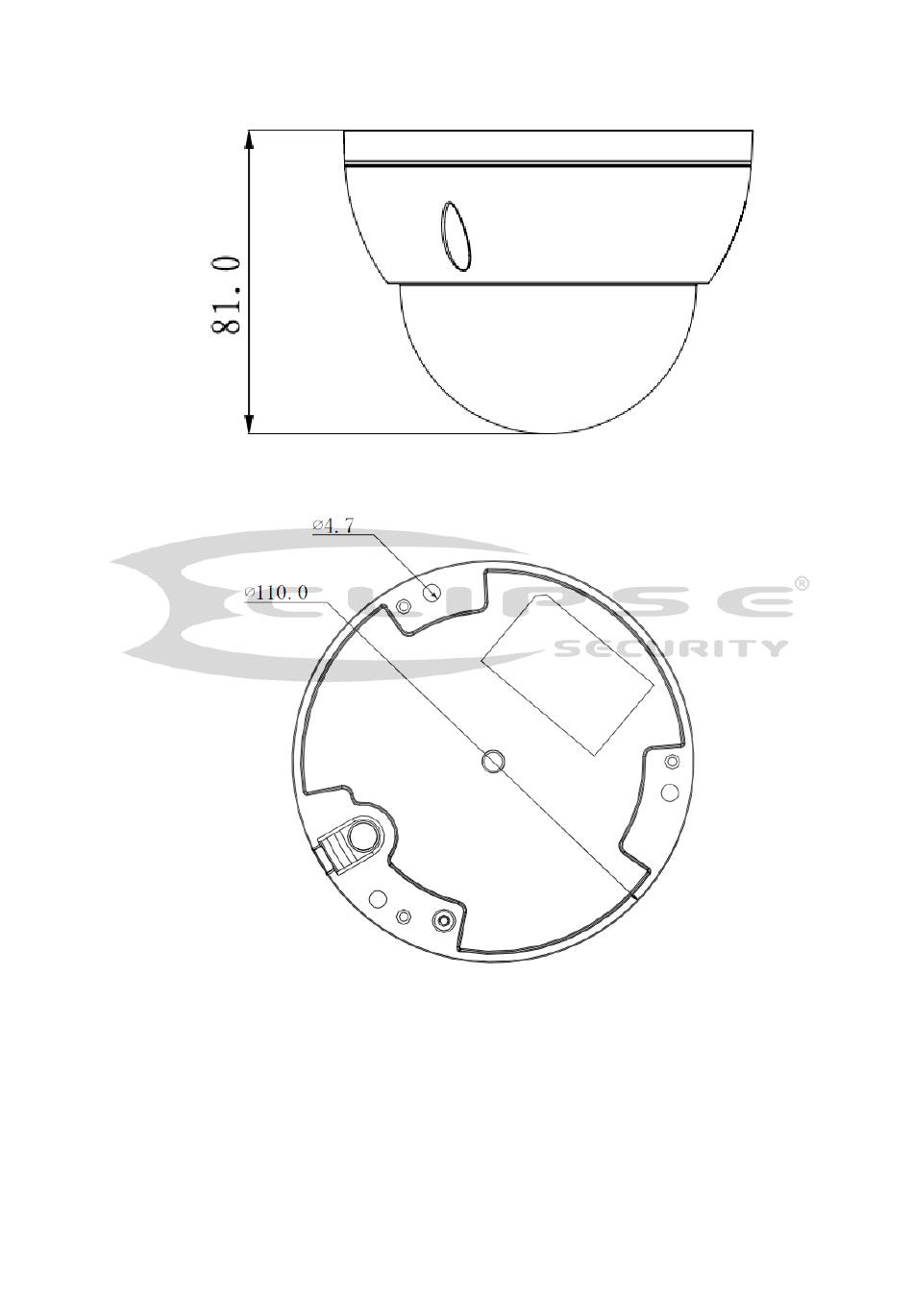

Figure 2-2 Dimension illustration 1
Figure 2-3 Dimension illustration 2
