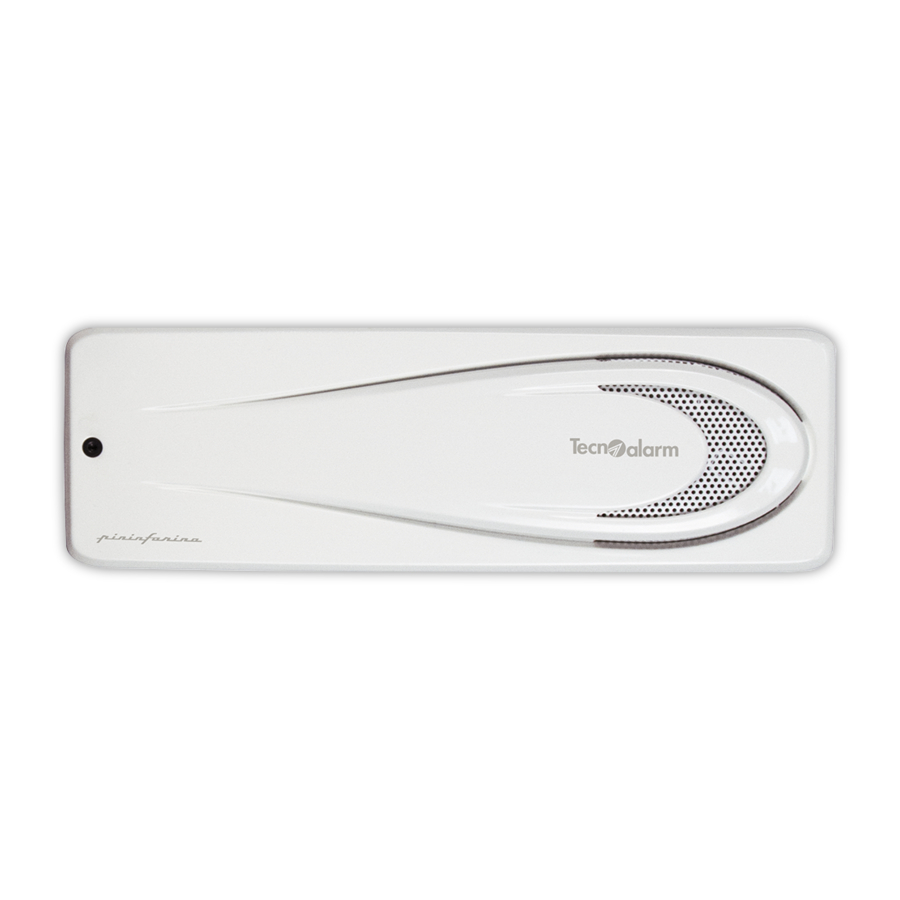

Tecnoalarm SIRTEC BUS Quick Guide

General features

• RSC siren connectable via Siren Bus
• Programmable alarm sound type
• Free association to the programs
• Acoustic system status signaling
• Self-powered
• Protection against reverse polarity
• Programmable maximum sound time
• Protection against opening and detachment
• Guaranteed battery recharge with 10.5V
• Self test function for power supply voltage, battery and horn

Programming

The programming can be executed, locally or remotely, using a PC with the Tecnoalarm software.

INSTALLATION

1. Opening of the casing
   Unscrew the locking screw with a 3mm Allen wrench, then lift the cover turning it to the right.


2. Cable position
   Insert the connection cable into the casing through the cable lead-in groove .


3. Wall fixing
   Fix the casing on a solid surface level with the ears and the mounting hole for the anti-detachment protection .


4. Connection
   Make the electrical connection of the siren using the terminals .



5. Programming
   Execute the programming of the JP1 jumper and the SW1 dip-switch .


6. Battery connection
   Place the battery and block it with the hook . Connect the faston terminals to the battery .



Via Ciriè 38 - 10099 San Mauro T.se - Torino (Italy)
tel +390112235410 - fax +390112735590
tecnoalarm@tecnoalarm.com
www.tecnoalarm.com

Batteries are hazardous waste and must be disposed of at an authorized disposal facility.
