Summary of Contents for Verint Nextiva HDR 1800

  • Page 1 Nextiva HDR 1800 User Guide   February 06, 2013...
  • Page 2 All materials found herein are provided “AS IS” and without warranty of any kind. The Verint Systems Inc. products are protected by one or more of the following U.S., European or International Patents: USPN 5,659,768; USPN 5,790,798;...
  • Page 3: Table Of Contents

    Contents Preface Documentation and Firmware Contacting Verint Contacting Service and Support Safety Summary of Changes Revision 5 — February 2013 Updates Revision 4 — April 2012 Updates Revision 3 — October 2011 Updates Revision 2 — December 2010 Updates Revision 1 — April 2010...
  • Page 4 Live and Playback Video Parameters Setting Up Screens Defining Camera Tours Defining Salvos Defining Virtual Matrix General Settings Configuring the On-Screen Display Appendix 4: Default Specifications and Configuration Technical Specifications Factory Default Configuration Index   © 2013 Verint Video Systems Inc.
  • Page 5: Preface

    Nextiva user documentation, to our documentation feedback team at  documentationfeedback@verint.com Contacting Verint Verint ®  Systems is a leading provider of Actionable Intelligence ®  solutions for  enterprise workforce optimization and security intelligence. Our solutions help  governments and enterprises make sense of the vast information they collect in  order to achieve their performance and security goals. Today our solutions are  used by more than 10,000 organizations in 150 countries. Verint is  headquartered in Melville, New York, with offices worldwide and 2500  dedicated professionals around the globe. You can read about Verint Video  Solutions and get marketing material and product information at  http://www.verint.com/solutions/video-situation-intelligence/index.html. To contact us for sales, pricing and general inquiries, refer to the coordinates  below: Location Contact Information Americas videoinfo@verint.com +1 866-639-8482 for Nextiva VMS and Nextiva  Intelligent Edge Devices +1-800-638-5969 for Nextiva Intelligent DVRs Europe, Middle East,  marketing.emea@verint.com and Africa +44 (0) 1932 839500 Asia/Pacific marketing.apac@verint.com + 852 2797 5678 © 2013 Verint Video Systems Inc.
  • Page 6: Contacting Service And Support

    Solutions partner extranet. To register, go to https://online.verint.com. If you encounter any type of problem after reading this guide, contact your  local distributor or Verint representative. For the main service and support  page on the Verint web page, visit http://www.verint.com/solutions/video- situation-intelligence/Nextiva-Service-and-Support/index. For assistance,  contact the customer service team: Location Contact Information USA and Canada +1-888-747-6246 vissupport@verint.com Open 9:00 am to 5:00 pm (EST)   M onday to  Friday Central and Latin America +1-303-254-7005 vissupport@verint.com Open 9:00 am to 5:00 pm (EST) Monday to  Friday Europe, Middle East, and  +44 (0) 845-843-7333 Africa customersupport.emea@verint.com Open 8:30 am to 5:30 pm (GMT) Monday to  Friday Asia/Pacific Hong Kong: +852 2797 5678 Singapore: +65-68266099 APAC_VIS_Services@verint.com Open 9:00 am to 6:30 pm (Monday to  Thursday) 9:00 am to 5:30 pm (Friday) © 2013 Verint Video Systems Inc.
  • Page 7: Safety

    Safety Always observe the following precautions to reduce the risk of injury and  equipment damage: The Nextiva HDR 1800 is for indoor use only. The Nextiva HDR 1800 should be placed on a secure flat surface or mounted  using optional hardware. The Nextiva HDR 1800 should only be operated in a clean, dry environment. The operating temperature is 32 to 104°F (0 to 40°C), with maximum  humidity at 0 to 95% relative, non-condensing at 104°F (40°C). Only use the recommend power cable for powering the Nextiva HDR 1800. Do not install the Nextiva HDR 1800 in an enclosed cabinet or other small  area without ventilation. © 2013 Verint Video Systems Inc.
  • Page 8: Summary Of Changes

    Summary of Changes Summary of Changes This section lists technical updates and new material added to the Nextiva HDR  1800  User Guide. Revision 5 — February 2013 This is the fifth edition of the Nextiva HDR 1800 User Guide. Updates Removed Nextiva VMS 6.1 integration. Revision 4 — April 2012 This is the fourth edition of the Nextiva HDR 1800 User Guide. Updates In Nextiva VMS 6.2, the configuration of Monitor types is now done in the  Advanced tab of the HDR 1800. You can now select what information is shown on the screen. You can now configure the font and display properties of the On-Screen  Display. Revision 3 — October 2011 This is the third edition of the Nextiva HDR 1800 User Guide. Updates Support for Nextiva VMS 6.2 and higher. © 2013 Verint Video Systems Inc.
  • Page 9: Revision 2 - December 2010

    Summary of Changes Revision 2 — December 2010 This is the second edition of the Nextiva HDR 1800 User Guide. Updates The U.S. Environmental Protection Agency (EPA) announced that as a result of  major success in moving the external power adapter market towards greater  and more sustainable energy efficiency, effective December 31, 2010, the EPA  is cancelling the Energy Star program for external power supplies (EPS). To  conform to the EPA requirements, Verint is now stating the efficiency level for  all EPS. Revision 1 — April 2010 This is the first edition of the Nextiva HDR 1800 User Guide. Features High-definition video decoder/receiver for use with Nextiva Virtual Matrix  H.264/MPEG-4/MJPEG video decoding at up to 1920x1080 screen resolution Includes three video outputs: DVI, VGA (RGB), and BNC (Composite) Fully configurable in Nextiva VMS 6.1, including full integration with Nextiva  S1800e encoders and Nextiva S5000 IP cameras with H.264 video  compression technology. Supports all third-party cameras and CCTV Keyboards supported by Nextiva  Includes two serial ports: RS-232 and RS-422 © 2013 Verint Video Systems Inc.
  • Page 10: Chapter 1: Overview Of The Hdr 1800

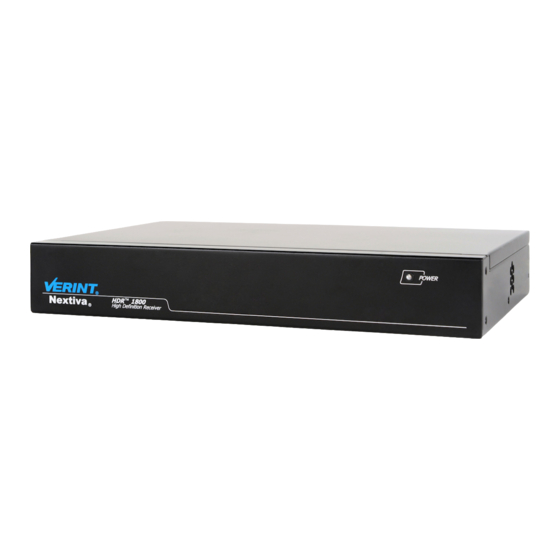

    Chapter Overview of the HDR 1800 The Nextiva® High Definition Receiver (HDR™ 1800 is a powerful enterprise- class, H.264 enabled video decoder/receiver designed for large-scale,  geographically distributed operations. The HDR  1800 combine excellent  performance, high-definition technology, and H.264 video decompression to  enhance the functionality and versatility of Nextiva Virtual Matrix  implementations. The HDR 1800 is ideal for video surveillance applications that call for high- definition video to be displayed at multiple locations for building situational  awareness and a coordinated response. Compatible with today's advanced  video technologies, the HDR 1800 offers the flexibility to decode compression  formats from H.264 to MPEG-4 to MJPEG and use a wide range of monitors  including DVI, VGA, and traditional CCTV monitors.  The following topics are discussed: Hardware Overview Monitor Configuration Frame Rate and Performance...
  • Page 11: Hardware Overview

    Hardware Overview Hardware Overview The HDR 1800 integrates seamlessly with Nextiva Virtual Matrix, which routes  video to computers, video walls, and monitors across local and wide area  networks (LANs/WANs). With Nextiva Virtual Matrix, authorized personnel can  view live and recorded high-definition video on digital monitors, create custom  video walls, control PTZ cameras, assign cameras to monitors on demand, and  replay alarm-based video at multiple locations simultaneously. The HDR 1800 is also fully integrated with Nextiva Video Management System  (VMS) and Nextiva  intelligent edge devices, including the state-of-the-art S1800e encoders and  S5000 high-definition IP cameras with H.264 video compression technology. In  addition, the HDR 1800 supports all third-party cameras and CCTV Keyboards  supported by Nextiva VMS. Caution The Nextiva HDR 1800 is enclosed in a non-weatherproof casing and should  be placed in a location that is not exposed to the outdoor environment. Description © 2013 Verint Video Systems Inc.
  • Page 12: Product Dimensions And Weight

    Product Dimensions and Weight 11W × 7.5D × 1.7H in. (280W × 190D × 44H mm) 5.7lb (2.6Kg)  Monitor Configuration You can connect either one monitor (Single monitor configuration) or two  monitors (Dual monitor configuration) to the HDR 1800. In a Dual monitor  configuration, the first monitor in the configuration must be connected to the  DVI-D connector on the HDR 1800; the second monitor can be connected to  either the VGA or BNC connectors.  Note In the Dual monitor configuration, the total number of video tiles on both  monitors cannot exceed 18 tiles. The following table lists the monitor configuration settings for the HDR 1800. Connector Maximum Screen Monitor Tile Layout Options Type Resolution Single  Monitor  DVI-D 1×1 (1 tile) DVI-D: Up to  Monitor 1920×1200 2×2 (4 tiles) © 2013 Verint Video Systems Inc.
  • Page 13: Frame Rate And Performance

    Frame Rate and Performance The HDR 1800 supports H.264, MPEG-4, MJPEG video decoding at up to  1920×1080 screen resolution. In general, the performance for displaying video  on monitors varies depending on the tile layout, screen resolution, compression  mode, and bitrate. The following table lists performance values for the  maximum frame rate: The performance values listed below are provided for reference only. Compression Mode Tile Layout MPEG-4 H.264 1 tile 1920×1080 at 30 fps 1920×1080 at 30 fps 4 tiles 4CIF at 30 fps 4CIF at 30 fps 6 tiles 4CIF at 30 fps 4CIF at 30 fps 9 tiles 4CIF at 30 fps 2CIF at 30 fps 16 tiles 2CIF at 30 fps CIF at 30 fps 18 tiles CIF at 30 fps CIF at 15 fps For DVI and VGA monitors, the HDR 1800 automatically adjusts the screen  resolution to the best available setting on the monitor (up to a maximum of  1920x1200). © 2013 Verint Video Systems Inc.
  • Page 14: Chapter 2: Installing The Hdr 1800

    Chapter Installing the HDR 1800 This chapter focuses on the physical installation of the HDR 1800. Network and  other physical settings for the HDR 1800 are configured in Nextiva Video  Management System (VMS). The following topics are discussed: Package Contents Installing on a Flat Surface Installing in a Rack Installing on a Wall Powering the HDR 1800 Connecting Network Cables Connecting Monitors Connecting a CCTV Keyboard...
  • Page 15: Package Contents

    The HDR 1800 is enclosed in a non-weatherproof steel casing and should  only be placed in an indoor environment. Each installation kit comes with the following: One HDR 1800 featuring H.264 technology One set of rack-mount brackets  One set of wall-mount brackets Six screws (Philips M4 × 6mm pan head) Four bumpons One AC100-240V 90W/+19V power adaptor One Nextiva HDR 1800 Quick Installation Guide Installing on a Flat Surface This section explains how to install the HDR 1800 on a desktop or flat surface. ► To install on a flat surface  1.  Remove any debris and dust from the surface as well as the surrounding  area.  2.  Attach the four bumpons (provided) to each corner of the HDR 1800 using  the provided screws.  3.  Place the device on the flat surface.  4.  Ensure that you have access to both the front and rear of the device and that  the fan airflow is not blocked. © 2013 Verint Video Systems Inc.
  • Page 16: Installing In A Rack

     2.  Screw the rack-mount brackets to the device using using 12 in-lb (1.35 N- m) force with 6 screws (provided).  3.  Slide the device into the 1U mounting space in the rack cabinet and ensure  that the fan airflow is not blocked.  4.  Secure the device to the rack cabinet using the screws supplied with the  rack. Installing on a Wall This section explains how to install the HDR 1800 on a wall. ► To install on a wall  1.  Align the wall-mount brackets with the holes on the bottom of the HDR 1800.  2.  Screw the wall-mount brackets to the HDR 1800 using 12 in-lb (1.35 N-m)  force with 4 screws (provided).  3.  Place the HDR 1800 on the wall and ensure that there is enough space on the  sides of the unit for ventilation. Note Ensure the wall is strong enough to support the weight of the HDR 1800:  5.7lb (2.6Kg).  4.  Secure the HDR 1800 to the wall using four wall screws (not provided) on  each side of the HDR 1800. © 2013 Verint Video Systems Inc.
  • Page 17: Powering The Hdr 1800

    Powering the HDR 1800 Powering the HDR 1800 TheHDRD 1800 consumes up to 30W of power. ► To power the HDR 1800  1.  Connect the 19V DC +/-5%, Terminal Block power connector to the power  input receptacle on the back of the HDR 1800.  2.  Secure the power connector to the receptacle by tightening the screws on  each side of the connector.  3.  Plug the 19V DC +/-5% power cable into an outlet or surge-protection  device. Connecting Network Cables ► To connect the network cables  1.  Plug a straight-through Ethernet cable to the LAN 10/100 connector on the  rear.  © 2013 Verint Video Systems Inc.
  • Page 18: Connecting Monitors

    Chapter 2: Installing the HDR 1800 Connecting Monitors You can connect either one monitor (Single monitor configuration) or two  monitors (Dual monitor configuration) to the HDR 1800. In a Dual monitor  configuration, the first monitor in the configuration must be connected to the  DVI-D connector on the HDR 1800; the second monitor can be connected to  either the VGA or BNC-Composite (TV Out). ► To connect monitors  1.  Plug the monitor cable into the corresponding video input (DVI-D, VGA,  BNC-Composite (TV Out)) on the back of the HDR 1800. Note In a Dual monitor configuration, the first monitor in the configuration must be  connected to the DVI-D connector on the HDR 1800. You can also connect a  monitor that uses the HDMI interface to the DVI-D port on the HDR 1800. You  will need an HDMI male to DVI male adapter (not provided). © 2013 Verint Video Systems Inc.
  • Page 19: Connecting A Cctv Keyboard

     1.  Use the following wiring scheme to connect the CCTV keyboard’s serial  cable to the corresponding serial (DB9) port on the back of the HDR 1800. RS-232 DB9 RS-422 DB9 Signal on CCTV Signal on CCTV Keyboard Cable Keyboard Cable Pin Number Pin Number   1   2 Signal ground   3   4   5 Signal ground Once the connection is done, you must set the baud rate, parity, and other  parameters for the serial port in Nextiva VMS Control Center. © 2013 Verint Video Systems Inc.
  • Page 20: Chapter 3: Configuring The Hdr 1800 In Nextiva Vms 6.2 And Higher

    Chapter Configuring the HDR 1800 In Nextiva VMS 6.2 and Higher Nextiva VMS, version 6.2 and higher automatically discovers HDR 1800s  installed on the Nextiva network. The HDR 1800 can be in one of two states:  Partially Discovered or Device belongs to foreign site. Once the network  settings is configured, add it to Physical and Logical Groups in Nextiva VMS  using the System Setup Wizard.  Adding the HDR 1800 Using the System Setup Wizard Adding the HDR 1800 Manually Configuring the HDR 1800 Network Settings Configuring Monitor Output Settings Defining Video Sources Defining Monitors in the Virtual Matrix Configuring On-Screen Display of Analog Monitors Setting Up Screens Defining Camera Tours Defining Salvos Defining Virtual Matrix General Settings Configuring the On-Screen Display...
  • Page 21: Adding The Hdr 1800 Using The System Setup Wizard

    Click System Components > Devices, then on the toolbar click  (System Setup Wizard). In the status bar, click New Devices, then click in the New Devices  message box that appears every 60 seconds when a new device is  discovered. The New Devices count displays the total number of all newly discovered  and partially discovered devices. Hover over this number to view the  number of the devices that are partially discovered and those that are  fully discovered.   2.  On the Welcome page, click Next. Note The Welcome Page may not be the first page that displays. It depends on  the method you used to launch the System Setup Wizard.   3.  On the Physical Groups page, select a HDR 1800 from the New Components pane and drag it to the Physical Groups folder.  4.  Click Next.  5.  On the Logical Groups page, select the HDR 1800 from the Physical Groups View pane and drag it to the Monitors folder in the Logical Groups View pane.  6.  Click Next. © 2013 Verint Video Systems Inc.
  • Page 22: Adding The Hdr 1800 Manually

    Note Devices that are installed under a different subnet do not appear in the New  Components pane.  When adding a device manually, you need to specify an IP address or range,  the device manufacturer, and the connection settings. ► To add the HDR 1800 manually  1.  On the Physical Groups page of the System Setup Wizard, under New Components, click  (Unit Discovery).   2.  In the Unit Discovery dialog box, enter the IP address of the device in the  IP Address Start boxes.   3.  If you are specifying an IP address range, enter the last IP address of the  range in the IP Address End boxes.  4.  Select the manufacturer of the device from the Adaptor drop-down list.  Otherwise, use the default, VSIP, for Verint edge devices. © 2013 Verint Video Systems Inc.
  • Page 23: Configuring The Hdr 1800 Network Settings

     5.  When you select the manufacturer, the fields that are required for  discovering the device are displayed beside Properties. These vary and  may include Advanced properties. Refer to the integration technical note for  the specific manufacturer.   6.  Enter the required information in the Properties fields.  7.  Click Discover.   8.  All devices matching the parameters entered are displayed under Unit(s) discovered.  9.  Repeat steps 1 to 6, if required. Then click Done. Configuring the HDR 1800 Network Settings By default, theHDR 1800 is Dynamic Host Configuration Protocol (DHCP)  enabled. If you have a DHCP server, the HDR 1800 automatically obtains an IP  address upon initial startup from the DHCP server. If a DHCP server is not available on the network, the HDR 1800 assigns itself a  temporary IP address based on the Automatic Private IP Addressing (APIPA)  addressing format. The APIPA scheme allows a device to assign itself a  temporary IP address until it receives a complete network configuration, either  manually or from a DHCP server. Nextiva VMS does not support DHCP for Nextiva edge devices. You must use   a   static IP address that is outside the DHCP ranage. The fields displayed on the Network Settings tab vary according to whether you  select a single device or multiple devices in the Device Discovery browser. © 2013 Verint Video Systems Inc.
  • Page 24 ► To configure the network settings  1.  In Nextiva Control Center, click Device Discovery.  2.  Select the HDR-P in the Device Discovery Browser.  3.  Select the Network Settings tab.  4.  Do one of the following depending on the state of HDR 1800: HDR 1800 in Partially Discovered Device state Edit the IP address, Subnet Mask, Gateway, and Host Name, as  required. HDR 1800 in Device belongs to foreign site state Uncheck Belongs to foreign site. Edit the IP address, Subnet Mask, Gateway, and Host Name, as  required.  5.  Click Validate to ensure that the settings are valid.  6.  Click Apply. © 2013 Verint Video Systems Inc.
  • Page 25: Configuring Monitor Output Settings

    Dual Monitor (extended desktop) configuration enabled Monitor 1 Connector Type: DVI Monitor 1 Tile layout: 2 × 2 Monitor 2 Connector Type: DVI Monitor 2 Tile layout: 2×2 You can change the default settings by specifying a different Tile Layout: 1×1,  2×2 (default), 3×2, 3×3, 4×3, 4×4. Nextiva VMS considers each tile a separate video output on the HDR 1800 and  automatically assigns each tile a Monitor Name when the HDR 1800 is added to  Physical and Logical Views.  Note You can change the default settings by specifying a different Tile Layout: 1 ×  1, 2×2 (default), 3×2, 3×3, 4×3, 4×4; or by selecting a different Connector  Type: DVI, VGA, or Composite. ► To configure monitor output settings  1.  In Nextiva Control Center, select System Components > Devices.  2.  Select Physical View. Physical devices appear in a hierarchal tree in the  Devices pane.  3.  Expand the physical group where the HDR 1800 you want to update  firmware on is located and select it. Upon selection, components of the  © 2013 Verint Video Systems Inc.
  • Page 26  1.  Expand Screen 001 Layout. configuration  2.  From the Connector Type list, select: DVI_ HDMI (default).  3.  Expand Screen 002 Layout.  4.  From the Connector Type list, select Not Connected. Dual monitor   1.  Expand Screen 001 Layout. configuration  2.  From the Connector Type list, select: DVI_ HDMI (default).  3.  Expand Screen 002 Layout.  4.  From the Connector Type list, select DVI.  6.  Click Apply. © 2013 Verint Video Systems Inc.
  • Page 27: Defining Video Sources

    Defining Video Sources When you want to assign a camera to a monitor connected to the HDR 1800 on  start-up, you first need to add the camera to the Nextiva Virtual Matrix.   The Nextiva Virtual Matrix is a software-based solution that enables you to  control CCTV equipment, such as PTZ keyboards and cameras, and create  virtual matrices to automatically distribute live and recorded video, audio, and  alarms across Local and Wide Area Networks (LANs/WANs).  The Video Sources editor in the Virtual Matrix lists all of the cameras that are  available. To add a camera to the Virtual Matrix, you assign a Video Source ID  to the camera.  ► To define video sources  1.  Click System Components > Virtual Matrix > Video Sources. All cameras defined in Nextiva VMS are listed under Video Source Name.  2.  Assign a video source ID to one or more cameras by doing one of the  following: To assign a video source ID to a single camera, click a box to the left of  the camera name.  To assign video source IDs to multiple cameras, press and hold the Ctrl  key while clicking each box to the left of the camera name. To assign video source IDs to all cameras at once, click the top-left box.  3.  Click  (Assign an ID). © 2013 Verint Video Systems Inc.
  • Page 28: Defining Monitors In The Virtual Matrix

     6.  To modify a video source ID, in the Video Source ID column, click on an ID  value, then overwrite the value.   7.  Click Apply. Defining Monitors in the Virtual Matrix When a monitor connected to the HDR 1800 is defined and configured in the  Virtual Matrix, you can use it to display video from cameras or configure it to  display alarm video.  They can view predetermined image sequences, video from multiple cameras  on a single monitor (tours), and multiple tours at one time (salvos). The users  can control PTZ cameras, assign cameras to monitors on demand, and  simultaneously replay alarm-based video at multiple locations for redundancy  and coordinated response. Note If no monitors are assigned in the virtual matrix, then camera video is  displayed only in Review or WebReview. You can then use Review in  conjunction with a CCTV keyboard to view camera video and to control PTZ  cameras. Assigning Monitor IDs For an analog monitor to display video, it must be assigned a monitor ID in the  Virtual Matrix workspace. When a monitor has an ID number, you can use that  monitor in a camera tour or salvo, or to display camera video on the monitor  using any CCTV keyboard. In a multisite deployment, the monitor ID value must not exceed 999. This  value should not exceed the ID value of the site to which the monitor is  assigned. © 2013 Verint Video Systems Inc.
  • Page 29: Assigning Cameras To Monitors On Startup

    To assign a monitor ID manually, type the number in the Monitor ID  field.  4.  Click Apply. Assigning Cameras to Monitors on Startup A monitor can be configured to display the live video from a particular camera  when the monitor is turned on. ► To assign cameras to monitors on startup  1.  Click System Components > Virtual Matrix > Monitors.  2.  Select a monitor row.   3.  Click the Startup Video Source drop-down list to view all cameras that  are defined as video sources for this virtual matrix, then select the camera  you want to use as a video source for this monitor at start-up.   4.  Click Apply. © 2013 Verint Video Systems Inc.
  • Page 30: Configuring On-Screen Display Of Analog Monitors

    Chapter 3: Configuring the HDR 1800 In Nextiva VMS 6.2 and Higher Configuring On-Screen Display of Analog Monitors The on-screen display (OSD) is the additional information, such as the date and  time, that is displayed on all analog monitors in Nextiva VMS. You can configure  a different OSD for live video and for playback video. From the OSD editor, you  can change the:  Time format Date format Live and playback video parameters Layout and color of the parameters The default settings are displayed when you select the OSD tab.  Settings apply to all analog monitors defined in Nextiva Virtual Matrix. © 2013 Verint Video Systems Inc.
  • Page 31  3.  From the Time Format list, choose a format for the time, which will appear  on all monitors in both live an playback mode. To Display Choose 12-hour format as hours:minutes:seconds  %H:%M:%S%p  For example: 03:14:00 PM 24-hour format as hours:minutes:seconds  %H:%M:%S% For example: 15:14:00  4.  From the Date Format list, choose a format for the date, which will appear  on all monitors in both live an playback mode. To Display Choose Month/day/year in four digits  %m/%d/%Y For example, 10/28/2010 Month/Day/Year in two digits %m/%d/%y For example, 10/28/10 Year in four digits-month-day %Y-%m-%d For example, 2010-10-28 Day of the week, three letters of the month followed by  %A, %b %d day and year in four digits © 2013 Verint Video Systems Inc.
  • Page 32 Use the default OSD  Select Default from the Layout text box displayed on the right  of the OSD window. Change the default OSD   1.  Select Custom from the Layout text box. configuration.  2.  Click on a parameter in the list or on the  preview screen.   3.  Reposition the parameters on the screen by  changing the number in the Left and Top text  boxes to a value between 0 and 100.   4.  Change the color of the characters that  appear on the screen by clicking the Text color box, then click a color.  5.  Change the color of the rectangle behind the  text by click the Text background box, then  click a color. Note The values in the Left and Top text boxes represent the percentage of screen  that the parameter is set from the left and top margins. You can overwrite  these values, but you need to stay within this defined area, between zero and  100 percent. The interior rectangle on the interface represents the underscan of the  monitor. If you are using the underscan on any monitor, ensure that the  parameter appears within this rectangle.  9.  Click Apply. © 2013 Verint Video Systems Inc.
  • Page 33: Live And Playback Video Parameters

    Too Low camera is in being used by a user or entity with higher  priority in live video.  (Live setting  only) Camera Date Displays the current date in the selected format in both live  and playback video. Camera Time Displays the current time in the selected format in both  live and playback video. Frame Rate Displays the frame rate (fps) for playback video. (Playback setting  only) Frame Number Displays the frame number in the stream in playback  (Playback setting  video. only) Playback State Displays the playback video state; for example, play,  pause, or rewind. (Playback setting  only) Loading Video Loading is displayed when you switch from live to playback  © 2013 Verint Video Systems Inc.
  • Page 34: Setting Up Screens

    Description (Playback  video and are waiting for the video to load in playback  setting) video. Loading Error An error is displayed when the video fails to load in  playback video. (Playback  setting)  Setting Up Screens When monitors are connected to the HDR 1800 decoder in the Nextiva site, you  must configure how the monitors display video from the Virtual Matrix Screens  editor of Control Center. Because the HDR 1800 allows you to view many video  tiles on a single monitor, the following concepts are used.  A               screenrefers to the physical peripheral display device such as a CRT  monitor, LCD monitor, or computer monitor. The following image shows the  screen representation in Nextiva Virtual Matrix workspace.  A monitor is an area of a screen that displays a single video feed. It is also  referred to as a tile. Monitors can be displayed on a screen in various  A layoutis the arrangement of multiple monitors on a screen. In Control  Center, you can select the following layouts: 1x1, 2x2, 3x2, 3x3, 4x3, and  4x4. The following image shows a screen divided into a 4x4 grid layout that  © 2013 Verint Video Systems Inc.
  • Page 35 Setting Up Screens comprises 16 monitors. The numbers indicate the monitor IDs. The default layout that appears when the HDR 1800 first starts up, is set in the  Active Layout list. Many CCTV keyboards allow the operator to toggle between  the different layouts by using the “next or previous layout” command. If a tile is  currently displaying alarm video, and the user toggles to the next layout, the  VM choose the next layout that keeps the alarm video visible.  An alarm icon indicates that the monitor is set to display camera video  associated to an alarm. To configure a monitor to display alarm video, add the  monitor to an alarm monitor group. Any tile can display alarm video. If an alarm tile is hidden in the selected  layout, then when an alarm comes in it is shown on the first available (visible)  alarm tile. However, if no alarm tiles are visible, then the alarm video will not  be displayed. For example, only tile 16 of a 4 × 4 grid is assigned to display  alarms, and the layout is switched to 2 × 2, which does not display tile 16, then  no tiles will display alarm video. For this reason, it is recommended that the  first tile always be set to display alarms, so that even in a 1 × 1 layout alarms  will display. © 2013 Verint Video Systems Inc.
  • Page 36: Defining Camera Tours

    ► To set up screens  1.  Click System Components > Virtual Matrix > Screens. The Screen List  contains information about the available screens and their default  configuration.   2.  To change the current monitor grid layout, from the screen list, select a  screen, click  (Change Active Layout), and select a grid layout option.  3.  The screen display refreshes to reflect the change.  4.  To set the default grid layout, from the Default list, choose a layout.  5.  Click Apply. Defining Camera Tours A camera tour is composed of a number of cameras defined in the Virtual  Matrix where each camera is given a predefined amount of time to play video in  a sequence.  Another camera tour can be included in the camera tour. In this case Preset and  Dwell time are defined by the original tour. When adding tours to a tour, be  careful not to create an endless cycle. The camera tour feature enables Virtual Matrix users to display multiple  cameras on a single analog monitor or a single viewing window in a viewing  application such as Nextiva Review.  © 2013 Verint Video Systems Inc.
  • Page 37  1.  Identifying the camera tours.  2.  Associating a camera tour with one or more cameras or other tours. If the tour will play on an analog monitor, then define video source IDs for each  camera that will be in the tour. ► To define camera tours  1.  Click System Components > Virtual Matrix > Tours.   2.  Select a tour from the Tour List or click  (Add) to create a new tour. The Tour Name and ID appear at the top of the Tour Details section. The  Tour ID is automatically assigned by adding one to the last ID. You can  overwrite this value. All the cameras in the system are listed by Logical  Group.  3.  To add the camera to the tour, from the Video Sources tree, select a  camera, then click  (double right arrows). The camera is displayed in the Video Source Name drop-down list.  4.  Enter a Preset ID in the Preset text box if this is a PTZ camera and you  want a Preset view. © 2013 Verint Video Systems Inc.
  • Page 38: Defining Salvos

    (double right arrows).  7.  Click Apply. Defining Salvos In Nextiva VMS, a salvo refers to several camera tours that run on several  different analog monitors at the same time. ► To define salvos  1.  Select System Components > Virtual Matrix > Salvo.  2.  Select a Salvo from the Salvo List or click  (Add) to create one.  3.  Enter a unique name for the salvo in the Salvo Name text box or use the  default. The Salvo ID is automatically generated by adding one to the  previous ID. You can overwrite this value.   4.  Click  (Add) to add camera tours and monitors for the salvo.  5.  Select the tours from the Tour ID list and the monitors from the Monitor  Name list. You can add as many tours and monitors as required. However, if  all monitors are in use, a message is displayed indicating that no monitor is  available. In order to run the selected tour, you would need to remove  another tour from the list.  6.  Click Apply.  © 2013 Verint Video Systems Inc.
  • Page 39: Defining Virtual Matrix General Settings

    ► To define the virtual matrix general settings  1.  Click System Components > Virtual Matrix.  2.  Click General Settings in the tree view on the left.  3.  In the Replay Duration box, enter the number of seconds to run recorded  video, when a request is sent from a CCTV keyboard. The default is 600  seconds (ten minutes).  4.  In the Replay Delay box, enter the number of seconds, prior to the current  time, to run playback video. This setting is applicable only to requests sent  from a CCTV keyboards. The default is 30 seconds.  5.  In the Default Dwell Time box, enter the number of seconds to play video  from each camera in a camera tour. The default is 10 seconds. © 2013 Verint Video Systems Inc.
  • Page 40: Configuring The On-Screen Display

     7.  In the Alarm Queue Length box, type a number from 1 to 100 to set the  maximum number of alarms that can be waiting for display. The default is  50 alarms.  8.  Click Apply. Configuring the On-Screen Display The on-screen display (OSD) displays information such as camera ID, date and  time. The Advanced tab of the HDR 1800 allows you to select what information  to display on all monitors. You can further customize the position of these  information through the Virtual Matrix.  ► To configure the OSD  1.  In Nextiva Control Center, select System Components > Devices.  2.  Select Physical View. Physical devices appear in a hierarchal tree in the  Devices pane.  3.  Expand the physical group where the HDR 1800 you want to update  firmware on is located and select it. Upon selection, components of the  selected HDR 1800 (video outputs and serial ports) appear in the Browser  pane.   4.  Select the Advanced tab to view current values of the HDR 1800. © 2013 Verint Video Systems Inc.
  • Page 41 Configuring the On-Screen Display  5.  Expand OSD, and modify the properties to view them on the screen: Background Transparency: Set the background transparency level by  typing a value from 0 to 255. Font Size: Set the font size. Foreground Transparency: Set the text transparency level by typing a  value from 0 to 255. Starve Mode Timeout: Set the number of seconds to wait before  enabling starve mode.  6.  Expand OSD Items, and for each item to display, set the value to True.  7.  Click Apply. © 2013 Verint Video Systems Inc.
  • Page 42: Appendix 4: Default Specifications And Configuration

    Appendix Default Specifications and Configuration The following topics are discussed: Technical Specifications...
  • Page 43: Technical Specifications

    One VGA (RGB) connector One BNC connector for composite video  (NTSC/PAL) Monitor Configuration DVI + VGA (RGB) DVI + BNC (Composite) DVI only VGA (RGB) only BNC (Composite) only Tiles Tiles display options:  1×1 (1 tile) 2×2 (4 tiles) 3×2 (6 tiles) 3×3 (9 tiles) 4×3 (12 tiles) 4×4 (16 tiles) Monitor Resolution DVI: Up to 1920×1200 VGA (RGB): Up to 1920×1200 BNC (Composite): 480/576 lines (NTSC/PAL) Network Interface 1 RJ-45, Ethernet 10/100/1000 Base-T (for main  connectivity) Interface 2 RJ-45, Ethernet 10/100/1000 Base-T (inactive) Protocol TCP/IP, UDP/IP, RTSP/RTP, IGMP, FTP, APIPA Security Nextiva authentication Ports Audio One Line Out, 1/8in (3.5mm) Stereo jack for  © 2013 Verint Video Systems Inc.
  • Page 44 One RS-232 (DB9) serial port for CCTV  keyboard connection One RS-422 (DB9) serial port for CCTV  keyboard connection Four USB 2.0 ports Power Input Voltage 19V DC +/-5%, Terminal Block, Efficiency  Level V Power supply Power Consumption 20W, max. 30W Physical Enclosure 1U Metal case with flange mount (black) Dimensions 11W × 7.5D × 1.7H in. (280W × 190D × 44H  Weight 5.7lb (2.6Kg) Operating Temperature Operating: 32 to 104°F (0 to 40°C) Storage: -22 to 140°F (-30°C to 60°C) Humidity 0 to 95% relative, non-condensing at 104°F  (40°C) Mounting Options Rack Mount Kit (included) and Wall/Table  Mount Kit (included) Management Configuration and Firmware  Supported through Nextiva VMS Control Center Upgrade Warranty 3-year limited warranty covering parts and labor (for the Americas). Contact  your Verint representative for warranty details for your regions. © 2013 Verint Video Systems Inc.
  • Page 45: Factory Default Configuration

    The Nextiva HDR 1800 is programmed at the factory with the following  configuration: Component/Parameter Default Settings Serial ports (RS-232 and RS-422) Bit rate: 115200 bps Data bits: 7 Parity: odd Stop bit: 2 Network DHCP configuration: Enabled Monitor Output Settings Dual Monitor (extended desktop) configuration enabled Monitor 1 Connector Type: DVI Monitor 1 Tile layout: 2×2 Monitor 2 Connector Type: VGA Monitor 2 Tile layout: 2×2 Audio Output: Tile 1 on Monitor 1 Volume: 100 Aspect Ratio False Time Zone Daylight Savings Time adjusted  automatically The system time on the HDR-P  automatically synchronizes with the  Nextiva VMS Master Server.   © 2013 Verint Video Systems Inc.
  • Page 46: Index

    15 on analog monitors 30 live and playback video parameters 33 options, when ordering a device 15 factory default configuration 45 Flat Surface Configuring 40 Installing 15 OSD.See on-screen display (OSD) 30 © 2013 Verint Video Systems Inc.
  • Page 47 34 startup video source 29 virtual matrix analog monitors defining in 28 camera tours defining for 36 general setting defining 39 VM alarm monitor groups length of alarm queue 39 Wall Installing 16 © 2013 Verint Video Systems Inc.
