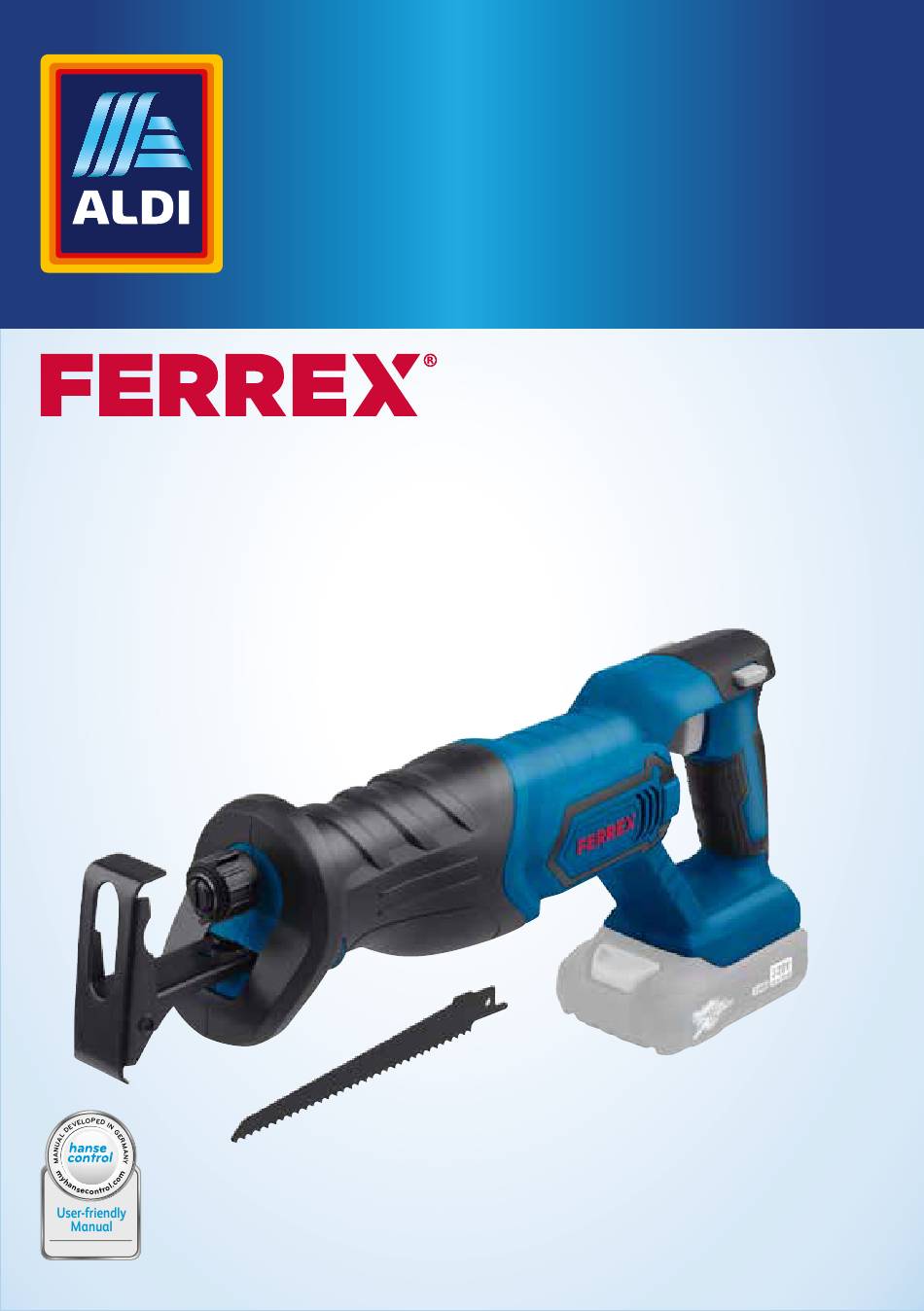

- Page 1 User Manual 20 V LI-ION CORDLESS RECIPROCATING SAW FAS 20-I Original instructions ID: #05007...
-
Page 2: Table Of Contents
Table of contents Scope of delivery ..............3 Components ................6 General information ............7 Reading and storing the user manual ........7 Proper use ..................7 Residual risks ................8 Explanation of symbols ............8 Safety ...................9 Explanation of notes ............... 9 General power tool safety instructions ........ -
Page 3: Scope Of Delivery
Scope of delivery Scope of delivery... - Page 4 Scope of delivery...
- Page 5 Scope of delivery...
-
Page 6: Components
Scope of delivery Components Switch lock Vents Front handle Saw blade lock Saw shoe Saw blade Saw blade holder Locking lever Battery holder Handle On/Off switch... -
Page 7: General Information
Reading and storing the user manual This user manual accompanies this 20 V Li-Ion Cordless Reciprocating Saw FAS 20-I (referred to below only as the “product”). It contains impor- tant information on safety, usage and care. Before using the product, read the user manual carefully. Pay particular attention to the safety notes and warnings. -
Page 8: Residual Risks
General information Residual risks Despite proper use, inconspicuous residual risks cannot be completely ruled out. The following risks may arise due to the design of the product: • Touching the exposed areas of the saw blade; • Reaching into the rotating saw blade (cut injury); •... -
Page 9: Safety
Safety Safety Explanation of notes The following symbols and signal words are used in this user manual. Indicates a hazardous situation that, if not avoid- ed, could result in death or serious injury. WARNING! Designates a dangerous situation that may result in minor or moderate injury if not avoided. - Page 10 Safety b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water enter- ing a power tool will increase the risk of electric shock.
- Page 11 Safety f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If there is an option for installing dust suction devices and dust containers, these should be attached and used correctly.
-
Page 12: Cordless Tool Use And Care
Safety g) Use the power tool, accessories and fitted tools etc. in accordance with these instructions, taking into account the working con- ditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. -
Page 13: Safety Instructions For Reciprocating Saws
Safety Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never perform maintenance on damaged rechargeable batteries. Only the manufacturer or authorised service companies may perform maintenance on rechargeable batteries. -
Page 14: Supplementary Safety Instructions
Safety − Do not expose the saw to moisture. It must not get damp and must not be operated in a damp environment. − Wear a protective breathing mask and protective goggles when perform- ing dusty work. Do not smoke when performing dusty work and avoid open fire. - Page 15 Safety CAUTION! Danger to health! You may damage your health if you use the product over a longer period of time due to the hand-arm vibration. − Wear vibration-reducing gloves. CAUTION! Risk of injury! Improper handling of the product can lead to injury. −...
-
Page 16: First Use
First use First use Check the product and package contents 1. Lift the product out of the packaging with both hands. 2. Place the product on a level, stable base, such as a workbench. 3. Check whether the product or the individual parts are damaged. If this is the case, do not use the product. -
Page 17: Inserting/Changing The Saw Blade
Operation − The battery may not be inserted before making any adjustments to the product, changing fitted parts, or storing the power tool. Removing the battery 1. Press and hold the unlock button of the battery which is being used (see Fig. B). 2. -
Page 18: Adjusting The Saw Shoe
Operation • The delivery contents include one saw blade that is suitable for sawing wood. • Alternatively, or to process other materials, you can use commer- cially available saw blades with a 1/2" universal shank. Adjusting the saw shoe You can set the perfect cutting depth, for example, using the adjustable saw shoe. 1. - Page 19 Operation NOTICE! Risk of damage! Using the product incorrectly may damage the product. − Select a moderate cutting speed to avoid overloading the battery and product. − Check the area behind the workpiece. Foreign bodies or materials lying around may get caught in the saw and lead to the product becoming blocked.
-
Page 20: Troubleshooting
Troubleshooting 3. Pick up the product. Hold it securely on the handle and the front handle 4. Bring the product towards the workpiece and place the saw shoe firmly against the workpiece. 5. Press and hold the switch lock with your thumb (see Fig. F). 6. -
Page 21: Maintenance And Care
Maintenance and care Maintenance and care WARNING! Risk of injury! Accidentally starting the product may result in severe injury caused by the saw blade. − Remove the battery from the product. WARNING! Risk of injury! Incorrect repairs or modifications may impair the operating safety of the prod- uct and invalidate the warranty. -
Page 22: Cleaning
Maintenance and care NOTICE! Risk of damage! Improper handling of the product can damage the product. − Do not use water or chemical cleaning agents to clean the product. − Do not use any aggressive cleaners, brushes with metal or nylon bristles, sharp or metallic cleaning utensils such as knives, hard scrapers and the like. -
Page 23: Technical Data
Technical data Technical data Article number: 802098 Model: FAS 20-I Model number: WU5420173 / WU5420174 Speed: 0 - 2700 min Stroke height: 20 mm Saw blade type: Reciprocating saw blade with 1/2" universal shank Cutting performance (max.) Wood: 105 mm... -
Page 24: Noise/Vibration Information
Noise/vibration information Noise/vibration information WARNING! Health hazard! Working without wearing hearing protection or protective clothing can lead to health problems. − Wear ear protection and suitable protective clothing when working with the device. • Sound pressure level L 83 dB(A) •... -
Page 25: Disposal
Disposal − Maintain and service the product in accordance with this user manual. − Avoid using the product at temperatures below 10 °C. − Plan your work steps to avoid working with heavy vibration products over several days. Disposal Disposing of the packaging Sort the packaging before you dispose of it. -
Page 26: Declaration Of Conformity
Germany EC Declaration of Conformity We declare with sole responsibility, 20 V LI-ION CORDLESS RECIPROCATING SAW that the product listed below … FAS 20-I WU5420173/WU5420174 • 802098 • 10/2021 … meets all of the requirements 2011/65/EU (RoHS) of the listed directives. - Page 27 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH. ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 802098 00800 34 99 67 53 www.conmetallmeister.de YEAR MODEL: WARRANTY FAS 20-I / WU5420173 / WU5420174 10/2021...
