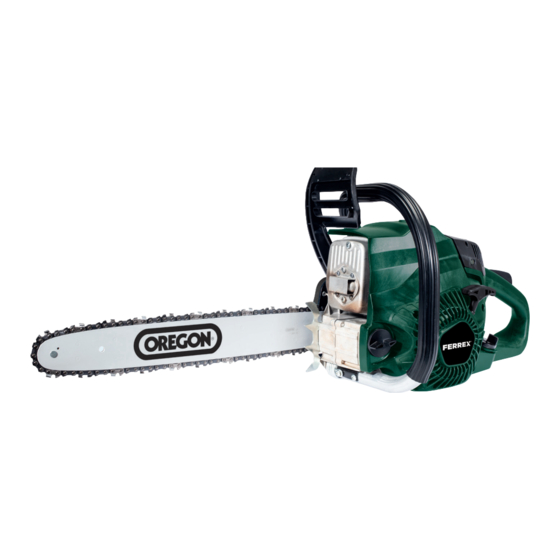

FERREX CHAINSAW 4-STROKE User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ALDI guarantees that our exclusive brand products are developed to our
stringent quality specifications. If you are not entirely satisfied with this
product, please return it to the nearest ALDI store within 60 days from the
date of purchase, for a full refund or replacement, or take advantage of our
after sales support by calling the supplier's Customer Service Hotline.
AU
Made in China
FERREX
is a registered trademark of ALDI Stores
®
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
3
AFTER SALES SUPPORT
703060
1300 855 831
AU
support@scheppach.com.au
YEAR
MODEL:
WARRANTY
CSP49S4
10/2020
User Manual
CHAINSAW 4-STROKE
CSP49S4
Contents
Overview ..................................................................................... 3
Package contents/part list ......................................................... 6
Explanation of Symbols .............................................................10
Introduction ...............................................................................12
Layout .........................................................................................13
Scope of delivery ........................................................................14
Intended use ..............................................................................15
Safety regulations ......................................................................16
Set up ......................................................................................... 28
Operation ................................................................................... 33
Operating instructions .............................................................. 35
Cleaning ......................................................................................41
Maintenance and servicing .......................................................41
Technical data ........................................................................... 47
Storage ......................................................................................48
Transport ................................................................................... 49
Disposal and recycling .............................................................. 49
Troubleshooting ........................................................................ 50
Warranty Details ........................................................................ 53
1
6
5
4
3
2
1
7
12
8
11
9
10
18
17
16
15
14
1.1
20
1
19
2
3
13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAINSAW 4-STROKE and is the answer not in the manual?

Questions and answers

Boo
June 28, 2025

Where do I get a battery mine didn’t come with one

0

Subscribe to Our Youtube Channel

Related Manuals for FERREX CHAINSAW 4-STROKE

Summary of Contents for FERREX CHAINSAW 4-STROKE

  • Page 1: Table Of Contents

    Explanation of Symbols .............10 Introduction ................12 Layout ..................13 Scope of delivery ................14 Intended use ................15 CHAINSAW 4-STROKE ALDI guarantees that our exclusive brand products are developed to our Safety regulations ..............16 stringent quality specifications. If you are not entirely satisfied with this CSP49S4 Set up ..................

  • Page 2: Package Contents/Part List

    Package contents/part list Chainsaw 4-Stroke Chain bar Saw chain Spark plug spanner Chain guard Warranty card Instruction manual...
  • Page 3 Kapitelüberschrift Pos.1 Pos.1 Fluchtweg Pos.2 Fallrichtung Pos.2 Pos.1 Fluchtweg Pos.1 “Scharnier” hält den Baum auf seinem Stumpf und steuert die Fallrichtung Abschließender Schnitt hier. 5 cm über der Keilmitte. Pos.4 5 cm Erster Pos.4 Fallschnitt Pos.1 Schnitt öffnet sich Pos.4 Pos.2 Keil Pos.2...
  • Page 4 Kapitelüberschrift Erster Schnitt auf belasteter Pos.1 Pos.1 Stammseite Pos.1 Pos.2 Oberschnitt Unterschnitt Pos.1 Pos.2 Zweiter Schnitt Pos.2 Pos.2 Zweiter Schnitt Erster Schnitt auf der belasteten Mit Stützbock Stammseite Pos.2 Schnitt Mit Stammseite Pos.2 Pos.2 Schnitt Pos.2 Pos.1 Schnitt Pos.1 Schnitt Pos.1 Pos.1 Pos.1...
  • Page 5 Kapitelüberschrift...

  • Page 6: Explanation Of Symbols

    Kapitelüberschrift Explanation of symbols Explanation of Symbols The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly un- derstood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.
  • Page 7 Explanation of Symbols Kapitelüberschrift Choke knob Setting the chain tension Installation direction of chain Bar fastening pin Guaranteed sound power level of the appliance Comply with the Australian safety standards. Warranty period Service category...

  • Page 8: Introduction

    Kapitelüberschrift Introduction Introduction Congratulations on choosing to buy a FERREX product. ® All products brought to you by FERREX are manufactured to the highest standards ® of performance and safety, and as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.

  • Page 9: Layout

    Kapitelüberschrift Layout Layout (Fig. 1 / 1.1) Chain bar Saw chain Chain brake lever / front hand guard Front handle Air filter cover Safety lock Throttle lever Fuel pump ‘primer bubble’ Choke (carburettor setting) Fuel tank Bar mounting nuts Spiked bumper Rear handle / bootstrap Stop switch Lubrication oil tank...

  • Page 10: Scope Of Delivery

    Kapitelüberschrift Scope of delivery Scope of delivery Chainsaw 4-Stroke (1x) Chain bar (1x) Saw Chain (1x) Spark plug spanner (1x) Chain guard (1x) Warranty card (1x) Instruction manual (1x) Open the packaging and take out the equipment with care. •...

  • Page 11: Intended Use

    Kapitelüberschrift Intended use Intended use The chainsaw is designed exclusively for sawing wood. You may only fell trees if you have received the appropriate training. The manufacturer cannot be held liable for damage caused by improper or incorrect usage. DO NOT operate a chainsaw whilst working in a tree. The machine is to be used only for its prescribed purpose.

  • Page 12: Safety Regulations

    Kapitelüberschrift Safety regulations Safety regulations In this user manual, we have marked sections concerning your safety with this sign: m The user manual also contains other important text marked with the word “CAUTION!” m CAUTION! When using machines, safety measures must be complied with in order to prevent injury and damage.
  • Page 13 Safety regulations Kapitelüberschrift General safety notices m CAUTION!: When working with tools that use fuel, the following basic rules must be followed in order to minimise the risk of physical injury and/ or damage to the machine. Read these notices before using the saw, and store them safely. 1.
  • Page 14 Kapitelüberschrift Safety regulations 15. Do not fill with fuel, oil or lubricant when the chainsaw is running. 16. Only cut suitable material: Only cut timber. Do not use the chainsaw for work for which it is not suitable. Do not use the chainsaw for cutting plastic, masonry or building materials which are not made of wood, for example.
  • Page 15 Safety regulations Kapitelüberschrift checked for damage (e.g. bent chain bar) and a test run has to be car- ried out. 8. For felling or cross-cutting, the spike bar (claw stop) must be applied to the wood to be cut. The use of the spike bar is also recommended when cutting through thick branches.
  • Page 16 Kapitelüberschrift Safety regulations Personal safety • Never use only one hand when using the saw! Otherwise there is a risk that operating staff, helpers or onlookers may get injured. A chain- saw has been designed for use with both hands. •...
  • Page 17 Safety regulations Kapitelüberschrift wiped away immediately and the machine must be cleaned. • Always close the screw plug on the fuel tank properly, so loosening is prevented from vibrations during operation. m DANGER Never refuel the machine close to an open flame. SPECIAL SAFETY REGULATIONS FOR THE USE OF INTERNAL COMBUSTION MOTORS m DANGER...
  • Page 18 Kapitelüberschrift Safety regulations of machines and other nearby processes and the time frame the us- er is exposed to the noise. The reliable immission level can also vary by country. However, this information will give the machine‘s user the op- portunity to carry out a better risk assessment.
  • Page 19 Safety regulations Kapitelüberschrift CHAIN CATCHER (18) reduces the danger of injury in the event saw chain breaks or derails dur- ing operation. The chain catcher is designed to intercept a whipping chain. m NOTICE Familiarise yourself with the saw and its components. Warning notices for chainsaws •...
  • Page 20 Kapitelüberschrift Safety regulations Causes and prevention of kickback: − Kickback can occur when the tip of the guide bar touches an object or when the timber bends and the saw-chain becomes caught in the cut. − Contact with the guide bar tip can, in some cases, lead to an unexpected backwards reaction in which the guide bar is thrown up and in the di- rection of the operator.
  • Page 21 Safety regulations Kapitelüberschrift Replace worn or damaged components and bolts. Tighten all nuts, bolts and machine screws to ensure that the equipment is in a safe op- erating condition. 2. Regularly check the fuel system for leakage or signs of abrasion, for ex- ample from porous fuel lines, loose or missing clamps and damage to the tank or the tank lid.
  • Page 22 Kapitelüberschrift Safety regulations m WARNING Fumes from fuel and solvents can cause explosions. After repairs and maintenance work, re-attach the safety devices to the machine. Ensure the machine is operational, in particular, check the fuel system for leak-tightness. Always clear the motor‘s cooling fins of contamination. m DANGER The manufacturer of this equipment shall be not liable to the applicable Product Liability Act for damages arising in this device or this unit at:...
  • Page 23 Safety regulations Kapitelüberschrift fumes and dusts related to exhaust gases. Hazards from unhealthy postures or excessive efforts related to machine • use. Hazards from unexpected start-up, unexpected overrun/over-speed • from failure/disorder of the control system related to failure in the handles and position of the controls.

  • Page 24: Set Up

    Kapitelüberschrift Set up Set up m NOTICE This chainsaw uses a 4 stroke engine and does not require the mixing of oil with the fuel. The chainsaw is fitted with ONE lubrication oil tank (15) and ONE chain oil tank (17) and a SEPARATE fuel tank (10).
  • Page 25 Kapitelüberschrift Set up m NOTICE The saw chain may droop slightly on the lower part of bar. This is normal. Pull the chain bar (1) forward until the saw chain (2) is closely seated. Make sure that all the drive links are in the groove of the chain bar (1). Align the projecting pin (F) at the inner side of the side cover (A) such that the fits into the hole of the chain bar (E).
  • Page 26 Kapitelüberschrift Set up the chain bar (1) (Fig. 6). Continue until the chain can be moved smoothly but is still closely seated (Fig. 5/pos. X2). Increase the tension by turning the bar fasten- ing pin (Fig. 2/pos. B) in a CLOCKWISE DIRECTION. When the saw chain is correctly tensioned, hold the tip of the bar upwards and completely tighten the bar fastening pin (Fig.
  • Page 27 Kapitelüberschrift Set up m WARNING The chain brake lever (3) should snap into both positions. If strong resistance is felt, or the lever does not move into either position, do not use your chainsaw. Take it immediately to a professional Service Centre for repair. Filling/Checking the lubricating oil (Fig.
  • Page 28 Kapitelüberschrift Set up Filling/Checking the fuel (Fig. 11) m CAUTION Always switch off the engine before fueling. Never add fuel to a machine with a running or hot engine. Only add fuel outdoors. If the engine is hot, allow to cool for at least five minutes before adding fuel.

  • Page 29: Operation

    Kapitelüberschrift Operation Operation Please note that the statutory regulations governing noise abatement may differ from one location to another. Each time before use, check the following: That there are no leaks in the fuel system. That the equipment is in perfect condition and that the safety devices and cutting devices are complete.
  • Page 30 Kapitelüberschrift Operation Always pull out the starter handle (16) in a straight line. If it is pulled out at an an- gle, friction will occur on the eyelet. As a result of this friction, the starter handle (16) will become frayed and will wear away faster.

  • Page 31: Operating Instructions

    Operating Instructions Kapitelüberschrift Operating Instructions m WARNING Beware of the following: • Rotary recoil (Fig. 14) A = Recoil distance / B = Recoil reaction zone • Impact/Jamming recoil and pulling reactions (Fig. 15) A = Pull / B = Solid objects / C = Push •...
  • Page 32 Kapitelüberschrift Operating Instructions Felling trees - only with relevant training m CAUTION Watch out for broken or dead branches which may fall down during sawing and which could cause severe injuries. Do not saw close to buildings or power lines if you do not know in which direction the felled tree will fall.
  • Page 33 Operating Instructions Kapitelüberschrift m NOTICE If the tree has large prop/buttress roots, these should be removed before the wedge is cut. If the saw is used for removing the prop/buttress roots, the saw-chain should not touch the ground so the chain does not become blunt. Undercut and felling the tree (Fig.
  • Page 34 Kapitelüberschrift Operating Instructions m CAUTION Do not stand on the log you are currently cutting. The log could roll away and you may lose your footing and control of the device. Do not carry out sawing work on sloping ground. Important notices Only ever saw one log or branch.
  • Page 35 Operation Instructions Kapitelüberschrift Log division without supports (Fig. 21) Using topping (Pos. 1), saw 1/3 of the way into the tree. • Turn the log around and make a second top cut (Pos. 2). • When sawing on the compression side, make sure the saw does not get jammed. •...
  • Page 36 Kapitelüberschrift Operating instructions Trimming Do not start trimming the tree before it has been felled. Only then can you carry • out the trimming safely and properly. Leave larger branches underneath the felled tree and use them as a support •...

  • Page 37: Cleaning

    Cleaning/Maintenance and servicing Kapitelüberschrift Cleaning m CAUTION Set the stop switch (Fig.1 / pos. 14) ‘0’ stop before doing any cleaning and main- tenance work! Carrying out any cleaning work The equipment should be cleaned thoroughly every time after it has been used. This applies particularly to the chain and bar.
  • Page 38 Kapitelüberschrift Maintenance and servicing Squeeze the throttle lever (Fig. 1/pos. 7), then immediately activate the chain brake lever (Fig. 1/pos. 3). m CAUTION Activate the chain brake slowly and deliberately. Keep the saw chain from touching anything, don’t let the saw tip forward. The saw chain should stop abruptly.
  • Page 39 Maintenance and servicing Kapitelüberschrift Spark plug (Fig. 26 / 27) m NOTICE To ensure that the saw’s engine retains its power, the spark plug must be clean and have the correct electrode gap (0.6-0.7 mm). The spark plug must be cleaned or replaced after every 20 hours of service.
  • Page 40 Kapitelüberschrift Maintenance and servicing m NOTICE The saw chain does not have to be removed in order to lubricate the sprocket tip of the chain bar. Lubrication is possible during work, with the engine switched off. m CAUTION Wear heavy duty work gloves when handling the bar and chain. Most guide bar problems can be prevented merely by keeping the chainsaw well maintained.
  • Page 41 Maintenance and servicing Kapitelüberschrift Instructions for sharpening a saw chain: File Upper tilt Standard diameter Upper angle Lower angle anglel (55°) depth (not included) Chucking Chucking rota- inclination side angle tion angle angle ca. 4.0 mm 30° 0° 80° 0.64 mm depth stop file Chain tension...
  • Page 42 Kapitelüberschrift Maintenance and servicing m NOTICE The condition of the oil passages can be easily checked. If the passages are clear, the chain will automatically give off a spray of oil within seconds of starting the saw. Your saw is equipped with an automatic oiler system. Automatic chain lubrication The chainsaw is equipped with an automatic oil lubrication system with a toothed wheel drive.

  • Page 43: Technical Data

    Kapitelüberschrift Technical data Technical data Engine displacement 49 cm³ Maximum engine capacity 1.6 kW / 7500 min Cutting length 35 cm Cutter rail type 16” Chain pitch (3/8”), 9.525 mm Idling speed 3000 min Maximum cutting speed 18.1 m/s Fuel tank capacity 400 cm³...

  • Page 44: Storage

    Kapitelüberschrift Technical data/Storage Sound and vibration Sound pressure level L 101.28 dB(A) Uncertainty K 2.5 dB(A) Guaranteed sound power level L 110 dB(A) Measured sound power level L 109.09 dB(A) Uncertainty K 0.61 dB(A) Vibration front handle a 10.589 m/s² Vibration rear handle a 9.396 m/s²...

  • Page 45: Transport

    Transport/Disposal and recycling Kapitelüberschrift Transport Clean coarse dirt off the equipment with a brush or hand brush. Alway mount the chain guard (20) to the chain bar (1). Disposal and recycling The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

  • Page 46: Troubleshooting

    Kapitelüberschrift Troubleshooting Troubleshooting The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.
  • Page 47 Kapitelüberschrift Troubleshooting Empty petrol tank. Fill up the petrol tank. Fuel filter in the Completely fill the petrol tank or Engine dies wrong position in the re-position the fuel filter in the petrol tank. tank. Empty oil tank for the Top up the oil tank for the chain.
  • Page 48 Kapitelüberschrift...

  • Page 49: Warranty Details

    CHAINSAW 4-STROKE Warranty Details TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion.

  • Page 50: Repair And Refurbished Goods Or Parts Notice

    CHAINSAW 4-STROKE Repair and Refurbished Goods or Parts Notice TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored...
