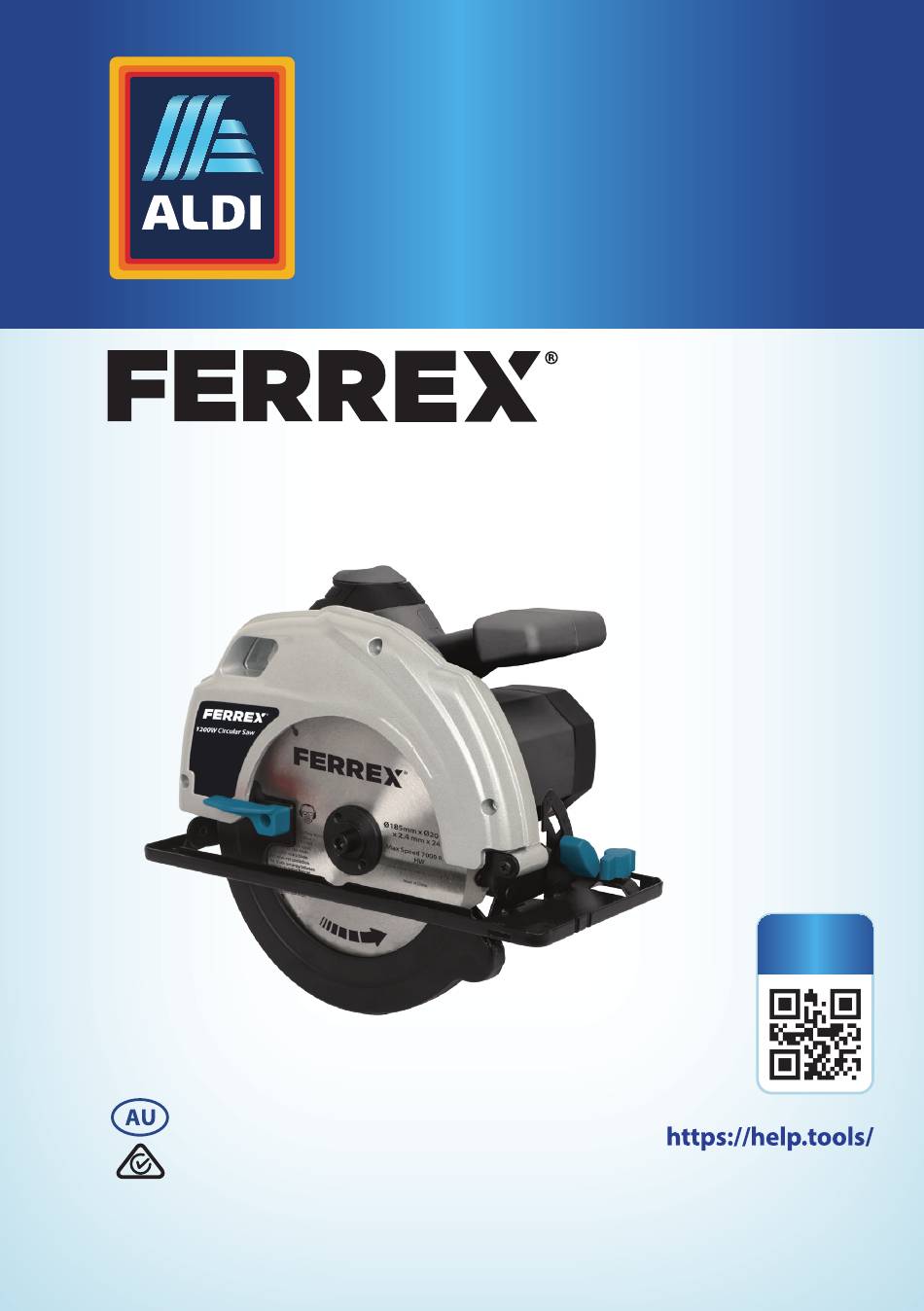

- Page 1 User Manual 704518 1200W CIRCULAR SAW Product Info Read all safety warnings and all instructions thoroughly before operating this product. Ensure you keep your manual in a safe place for future reference. IM ed 1; 02/2022...
- Page 2 QR codes take you where you want to go quicky and easily Whether you require product information, spare parts or accessories, details on warranties or after sales service, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.
- Page 3 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com MODEL No.: PSC1856.A 02/2022 • 704518 (toll free) •...
-
Page 4: Table Of Contents
Contents Pack contents / parts Description of symbols General safety warnings Parts list Assembly Attaching the dust extraction adapter Attaching the parallel guide Operation Adjusting the bevel angle Adjusting the cutting depth Adjusting the parallel guide Hand grip position Safety lock off button Working hints for your circular saw Making a cut Making a pocket cut... -
Page 5: Pack Contents / Parts
Pack contents / parts Congratulations on the purchase of your FERREX® 1200W Circular Saw. When you open your packaging, first remove all items and check there are no parts damaged or missing. If you find anything wrong, do not operate the product until the parts have been replaced or the fault has been rectified. -
Page 6: Description Of Symbols
Description of symbols The instruction manual, rating plate, or on the product itself, may show these symbols. These represent important information about the product or instructions on its use. Read instruction manual before operating this machine Warning Wear hearing protection. Wear eye protection. -
Page 7: General Safety Warnings
General safety warnings WARNING: WARNING: Read all safety warnings, instructions, Failure illustrations and specifications provided with this power tool. to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 8 f) If operating a power tool in a damp location is unavoidable, use a Use of an RCD reduces residual current device (RCD) protected supply. the risk of electric shock. 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 9 power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing Such preventive safety measures accessories, or storing power tools.
- Page 10 The guard cannot protect you b) Do not reach underneath the workpiece. from the blade below the workpiece. Less than a c) Adjust the cutting depth to the thickness of the workpiece. full tooth of the blade teeth should be visible below the workpiece. d) Never hold the workpiece in your hands or across your leg while It is important to cutting.
- Page 11 Kickback could cause the saw to jump but not in line with the blade. backwards, but kickback forces can be controlled by the operator, if proper precautions are taken. b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.
- Page 12 4. Identify the correct saw blade to be used for the material to be cut. 5. Use only saw blades that are marked with a speed equal or higher than the speed marked on the tool. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518...
-
Page 13: Parts List
21. Blade bolt 10. Upper fixed guard 22. Wrench 11. Dust extraction outlet 23. Dust extraction adapter 12. On/off trigger 24. 6mm Hex key AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... - Page 14 1200W Circular Saw 16 17 AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518...
-
Page 15: Assembly
(4) by turning it clockwise to securely clamp the parallel guide (5) (Fig. B3). NOTE: It is best to carry out a trial cut before cutting your workpiece. AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 16: Operation
When set correctly, the blade teeth should not protrude further than 3mm beneath the workpiece. NOTE: It is best to carry out a trial cut before cutting your workpiece. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 17: Adjusting The Parallel Guide
(12) (Fig. G). The blade may continue to rotate after switching off. Wait until the machine comes to a complete stop before setting down. AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 18: Working Hints For Your Circular Saw
Allow the blade and the circular saw to do the work. 9. After completing your cut, release the on/off trigger (12) and allow the blade to come to a complete stop. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 19: Making A Pocket Cut
8. After completing your cut, release the on/off trigger (12) and allow the blade to come to a complete stop. Do not remove the circular saw from the work piece while the blade is moving. AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 20: Maintenance
3) Tilt back the lower blade guard (8) and hold it firmly with the lower guard lever (9). Remove the old saw blade (Fig. L3). AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... - Page 21 Blade teeth are very sharp. For best cutting results ensure you use a saw blade suited to the material and cut quality you need. AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518...
-
Page 22: Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 23: Warranty
It has been manufactured under stringent FERREX® Quality Standards to meet superior performance criteria. You will find your new FERREX® 1200W Circular Saw easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 24: What Your 3 Year Warranty Means
If you have any issues with the operation of your product, please call us 1300 889 028 for advice, or email us at info.aldi@positecgroup.com AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 25: Accessories And After Sales Parts
1300 889 028 1. PSC1856.A-BL - 2. PSC1856.A-PG - 3. PSC1856.A-DEA - Replacement Blade Replacement Parallel Replacement Dust Guide Extraction adapter AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 26: Troubleshooting
For further inquiries or issues associated with your 1200W Circular Saw, call our Customer Service on 1300 889 028 or email us at info.aldi@positecgroup.com AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... -
Page 27: Technical Specifications
285*235*235 mm Product code: 704518 This 1200W Circular Saw complies with the following Standards: Safety: AS/NZS 62841.1 AS/NZS 62841.2.5 EMC: AS CISPR 14.1 AFTER SALES SUPPORT 1300 889 028 e-mail: info.aldi@positecgroup.com (toll free) MODEL No.: PSC1856.A • 02/2022 • 704518... - Page 28 Customer Service Hotline. Made in China FERREX® is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES...
