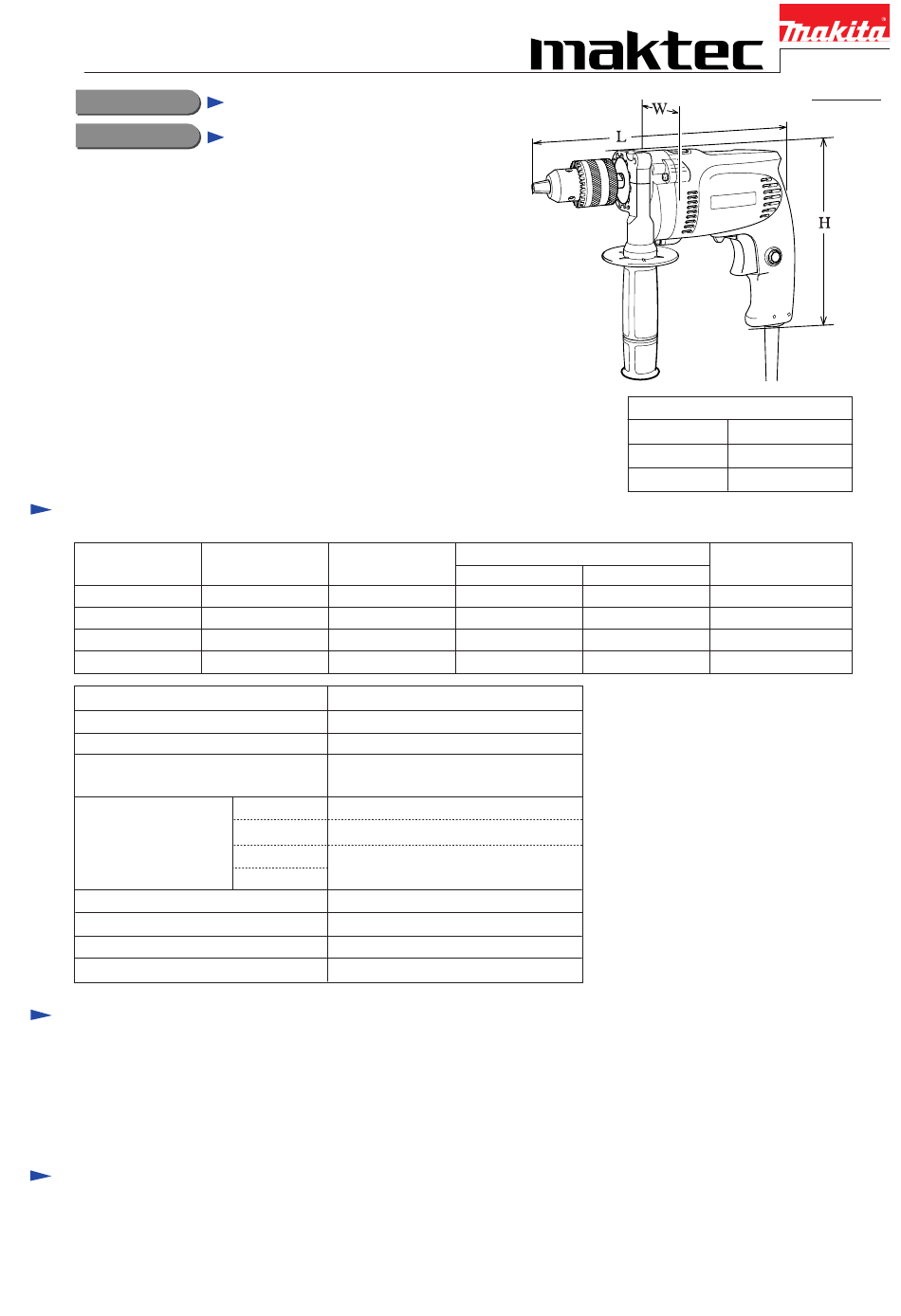

Model No.
Description
C
ONCEPT AND MAIN APPLICATIONS
Model MT813 has been added to maktec hammer drill series
as a 16mm (5/8") hammer drill, providing industrial performance
and durability at less expense.
Its brief features are;
*710W powerful motor
*Dust-proof construction
Model MT813K comes with a plastic carrying case.
S
pecification
Voltage (V)
110
220
230
240
No load speed: (min
Blows per min.: (min
Drill chuck
Chuck capacity: mm
(")
Drilling
capacity: mm (")
Reverse switch
Protection against electric shock
Power supply cord: m (ft)
Net weight: kg (lbs)
S
tandard equipment
*Chuck key S-13 ............................................... 1 pc.
*Key holder ....................................................... 1 pc.
*Side grip .......................................................... 1 pc.
*Plastic carrying case ........................................ 1 pc. (exclusively for MT813K)
Note: The standard equipment for the tool shown above may differ from country to country.
O
ptional accessories
* Depth gauge
MT813
Hammer Drill 16mm (5/8")
Cycle (Hz)
Current (A)
6.8
50 / 60
3.4
50 / 60
3.2
50 / 60
3.1
50 / 60
= rpm)
-1
= bpm)
-1
Steel
Wood
Masonry
Brick
Continuous Rating (W)
Input
710
710
710
710
0 - 3,000
0 - 45,000
Keyed chuck
1.5 - 13
(1/16 - 1/2)
13 (1/2)
30 (1-3/16)
16 (5/8)
Yes
Double insulation
2.0 (6.6)
2.0 (4.4)
PRODUCT
Dimensions: mm ( " )
Length ( L )
297 (11-3/4)
Width ( W )
71 (2-13/16)
Height ( H )
194 (7-5/8)
Max. Output(W)
Output
350
500
350
500
350
500
350
500
P 1 / 9
