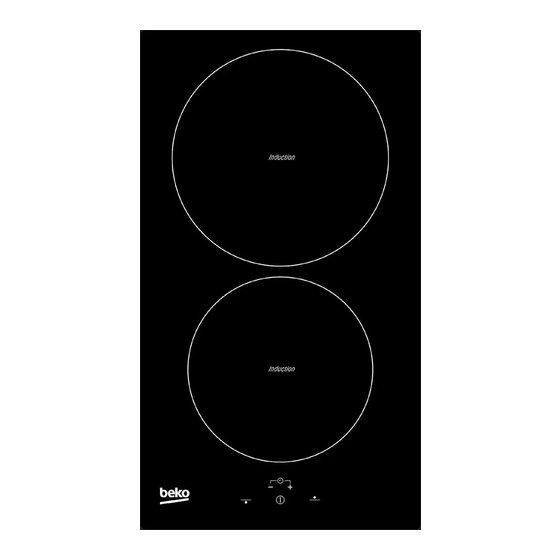

- Page 1 Built-In Hob HDMI 32400 DT...
- Page 2 Please read this user manual first! Dear Customer, Thank you for purchasing this Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Preparation Important instructions and warnings for safety and environment Tips for saving energy ......... 13 Initial use ............13 General safety ............4 First cleaning of the appliance ......13 Electrical safety ............. 4 Initial heating ............13 Product safety ............ -
Page 4: Important Instructions And Warnings For Safety And Environment
Important instructions and warnings for safety and environment This section contains safety user manual, product labels and instructions that will help protect from other relevant documents and risk of personal injury or property parts should be also given. damage. Failure to follow these •... -
Page 5: Product Safety
transformer. Our company shall Product safety not be liable for any problems • WARNING: The appliance and its arising due to the product not accessible parts become hot being earthed in accordance with during use. Care should be taken the local regulations. to avoid touching heating •... -
Page 6: Intended Use
term cooking process has to be induction hob that provides both supervised continuously. time and money savings must be • WARNING: Danger of fire: Do not used with pots suitable for store items on the cooking induction cooking; otherwise surfaces. hotplates will not operate. -
Page 7: Safety For Children
Disposing of the old product • CAUTION: This appliance is for Compliance with the WEEE Directive and cooking purposes only. It must Disposing of the Waste Product: not be used for other purposes, for example room heating. • The manufacturer shall not be This product complies with EU WEEE Directive liable for any damage caused by (2012/19/EU). -
Page 8: General Information
General information Overview Induction cooking plate Base cover Control panel Vitroceramic surface Technical specifications Voltage / frequency 220-240 V 50 Hz Total power consumption max. 3600 W Cable type / section min.H05V2V2-F 3 x 1,5 mm External dimensions (height / width / depth) 75 mm/288 mm/510 mm Installation dimensions (width / depth) 268 mm/490 mm... -
Page 9: Installation
Installation Product must be installed by a qualified person in Before installation accordance with the regulations in force. The The hob is designed for installation into commercially manufacturer shall not be held responsible for available work tops. A safety distance must be left damages arising from procedures carried out by between the appliance and the kitchen walls and unauthorized persons which may also void the... - Page 10 for any damages that will arise due to using the Additional protection by a residual current circuit product without a grounding installation in accordance breaker is recommended. with the local regulations. If a cable is supplied with the product: DANGER: The product must be connected to the mains supply only by an authorised and qualified person.
- Page 11 During installation of your induction hob, place the product parallel to the installation surface. Also, apply sealing gasket to the parts of the hob contacting the counter as described below in order to prevent any liquid from penetrating between the product and the counter.
-
Page 12: Future Transportation
Final check 1. Operate the product. 2. Check the functions. Future Transportation • Keep the product's original carton and transport the product in it. Follow the instructions on the carton. If you do not have the original carton, pack the product in bubble wrap or thick cardboard and tape it securely. -
Page 13: Preparation
Preparation Tips for saving energy Initial use The following information will help you to use your First cleaning of the appliance appliance in an ecological way, and to save energy: The surface might get damaged by some • Defrost frozen dishes before cooking them. detergents or cleaning materials. -
Page 14: How To Use The Hob
How to use the hob • Do not use the glass ceramic surface as a place General information about cooking of storage or as a cutting board. • Use only the saucepans and pans with machined Never fill the pan with oil more than bottoms. -
Page 15: Using The Hobs
Safe use If there is an oven under your hob and if it is Do not select high heating levels when you will use a running, sensors of the hob can decrease the non-sticking (teflon) saucepan with no oil or with very cooking level or turn off the oven. -
Page 16: Control Panel
The hob will turn off and return to Standby mode. Control panel If "H" symbol appears on the cooking zone display when the hob is turned off, this indicates that the cooking zone is still hot. Do not touch cooking zones. Residual heat indicator "H"... - Page 17 Technical Specifications table are equipped with Booster function. Turning on High Power (Booster): 1. Touch " " key to turn on the hob. 2. Touch the selection key of the cooking zone you want to turn on. 3. Touch " " or " " and firstly reach level "9". If any key is pressed when the child lock is active, "L"...
- Page 18 On the display of the cooking zones whose timer is activated, a dot shaped light will illuminate. Using the timer as an alarm function (Egg-timer) With this function, it is possible to setting the timer independently from cooking zone. 1. Touch " " key to turn on the hob. 3.
- Page 19 system will give error and the hob will be automatically Your hob can be equipped with induction turned off. cooking zones with a diameter of 160, 200 Precise power setting and 250 mm depending on the model. With Induction hob reacts to commands immediately as a induction feature, each cooking zone detects feature of its operating principles.
-
Page 20: Maintenance And Care
Maintenance and care General information Cleaning the hob Service life of the product will extend and the Cleaning the burner possibility of problems will decrease if the product is 1. Remove the saucepan carriers from the hob. cleaned at regular intervals. 2. -
Page 21: Troubleshooting
Troubleshooting Product emits metal noises while heating and cooling. This is not a fault. • When the metal parts are heated, they may expand and cause noise. >>> Product does not operate. Check fuses in the fuse box. If necessary, replace or •...
