WTT2 20W
WTT2 18W
I nstructions for safety, use and maintenance
Ergonomic Range
WTT2
4 m
20W EB S
W000278891 W000278911
18W EB S
W000278895 W000278902
20W
W000278892 W000278909
EB C5B
18W
W000278896 W000278901
EB C5B
20W EB S/
W000382786 W000382787
C5B FLEX
18W EB S/
W000382788 W000382789
C5B FLEX
Safety instructions
We thank you for your trust in our company by purchasing this equipment which will provide
you with complete satisfaction if you comply with its conditions for use and maintenance.
CAUTION: The company declines all responsibility in case of modifi cation, addition of
components or subassemblies, or any transformation of the equipment carried out by
the customer or a thirdparty, without prior specifi c written agreement from the company.
Arc welding and plasma cutting may be dangerous for the operator and persons close
to the work area. Read the operating manual and safety instructions W000261712.
See www.weldline.eu.
A) Maintenance / Troubleshooting
Before any internal verifi cations and repair work, make sure that the equipment is separated
from the electric installation by electrical isolation (by electrical isolation is meant a group of
operations designed to separate and keep the equipment de-energized).
At least every six months, you must check the proper condition of the insulation and
connections of the electric equipment and accessories such as plugs, fl exible wires, ducts,
connectors, extension leads, partholders, electrode-holders, or torches...
Maintenance and repair work on the jackets and insulating ducts must be carried out
extremely carefully.
Have defective parts repaired by a specialist, or better still, have them replaced.
Routinely check the proper tightening and cleanliness of the electric connections.
B) Work-station
Use only electrode holders and torches which are perfectly insulated.
The operator must be insulated from the ground-surface and the workpiece (gloves, safety
shoes, dry clothes, leather apron, and so forth...).
Do not touch the electrode wire and the part (or the nozzle) simultaneously.
LINCOLN ELECTRIC EUROPE S.L.
LINCOLN ELECTRIC IBERIA S.L.
c/o Balmes, 89 - 8
2
- 08008 Barcelona - SPAIN
Ctra. Laureà Miró 396-398, 08980 Sant Feliu de Llobregat (Barcelona) – Spain
o
a
8 m
EB
EB
French lever range
WTT2
20W
W000278893
RL S
18W
W000278897
S
RL S
20W
W000278894
RL C5B
18W
W000278898
RL C5B
C5B
C) Protection
It is absolutely essential that your protect your eyes from blinding glare (glare of arc invisible
light and infrared and ultraviolet radiation).
The welding mask, without or with helmet, must always be equipped with a protective fi lter
whose gradation depends on the welding arc current intensity (EN 169 Standard).
Fumes emitted during welding operations may be dangerous. Use adequate protection
means (fumes extraction, ventiled masks...)
Technical data

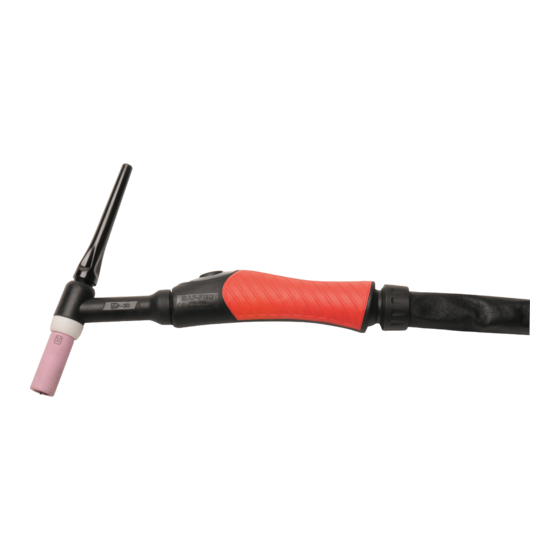

TIG manual torch with natural cooling
WTT2
Curent
Light alloy welding, reduce the duty cycle about 30%
Water fl ow mini
Water pressure
Maxi temperature inlet water
Voltage class
Gas fl ow
Using electrodes
Origin
equipment fi tted
to the torch
4 m
8 m
W000278906
W000278900
RL
W000278905
W000278899
RL
20W
250 A
Duty cycle 60%
Duty cycle 100%
200 A
Mini : 7 l/mn - Maxi : 13 l/mn
Ø 1.0 / 3.2 mm
Long
Back Cap
Long
Ø 12 mm
Nozzle
Electrode
Ø 2.4 L
EN
EN
EN
S
C5B
18W
350 A
320 A
1.0 l/mn
3.3 bars
45°C
L - 113 V
Ø 1.0 / 4.0 mm
Long
Long
Ø 12 mm
Ø 2.4 L
www.weldline.eu
www.weldline.eu
