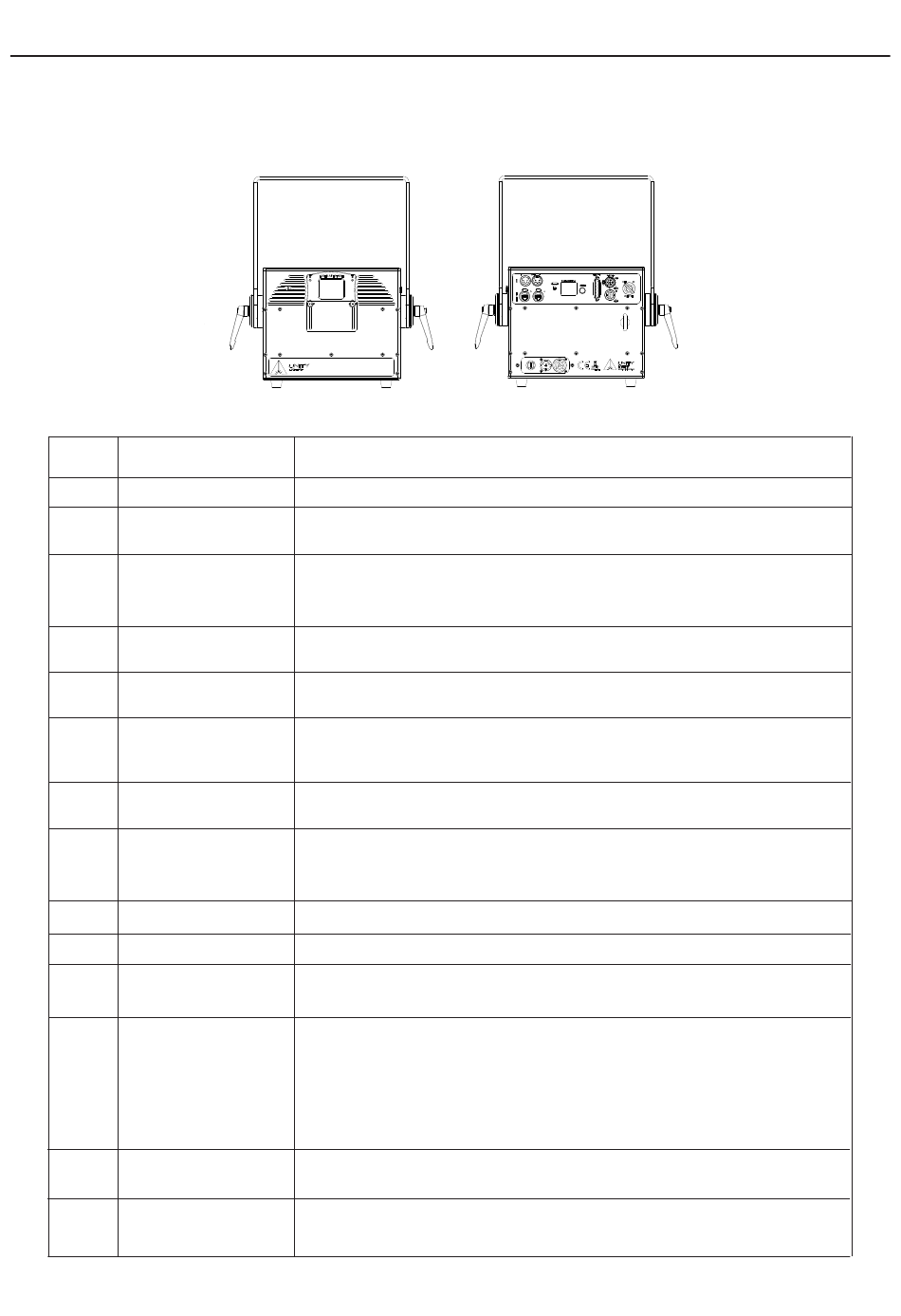

Front & Rear panel view (Elite 30 PRO)
NO.
Name
1. Laser Aperture
Aperture masking
2.
3. Attachment bracket
4. Laser emission
5. Cover bolts
RGB colour
6. alignment
mechanism
7. 3-Pin Interlock
8. Power in & out
9. Power ON/OFF
10. Key switch
11. DB25 OUT
FB4 laser
12.
control interface
DMX
13.
Input/Though
14. Safety eyelet
3
1
2
Laser output, do not look directly into this aperture.
Can be moved up and down when two locking bolts are loosened.
plate
The attachment bracket spins 360 degrees around the laser body
whilst it can be locked in desired position by two small locking
handles on sides.
When this indicator is lit up the laser system is ready to emit the laser
radiation as soon as it receives instructions from control software.
To access the optical compartment of the laser system undo 18 button
hex bolts and carefully remove the cover.
To access the colour alignment mechanism undo 2 silver bolts and
remove the cover.
Laser output is available only when the interlock is connected.
It could be used to connect a laser emergency switch.
AC100-240V power input and output sockets. With output feature you
can connect the device to one another using the input and output
sockets. They must be the same fixtures. DO NOT mix fixtures.
Power on/off
Turn the key switch ON to allow laser output.
ILDA compatible output port with signals from the projector's FB4
controller.
The inbuilt control interface allows you to control the laser via Ethernet
and DMX/ArtNet, but it also handles all the basic settings of the laser
system (master size and position, method of control, colour settings
etc.). All of these settings can be accessed through the menu using the
endless rotary knob and once saved they are stored on included mini
SD card.
Use these ports to connect DMX control signal or to daisy chain the
DMX signal between multiple laser display systems.
Use this together with appropriate safety wire to secure the system
against unexpected fall.
Elite Pro series Operational Manual (Revision 2022-10)
