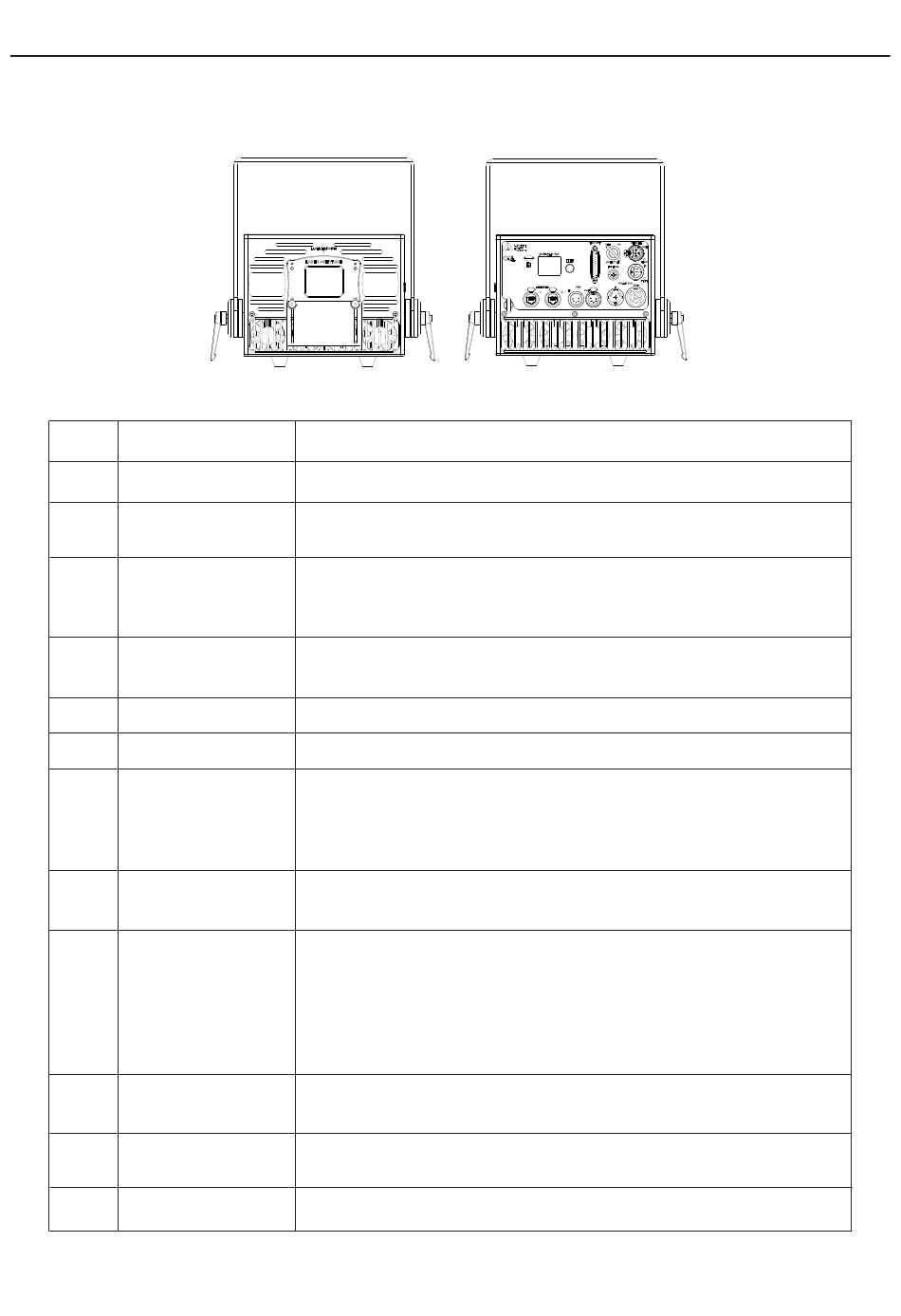

Front & Rear panel view (Elite 5 PRO)
NO. Name
1. Laser Aperture
Aperture masking
2.
3. Laser emission
4. 3-Pin Interlock
5. Key switch
6. Fuse
7. Power in & out
8.
Input/Though
FB4 laser
9.
control interface
10. ILDA OUT
11. Safety eyelet
12. Ethernet
3
1
2
Laser output, do not look directly into this aperture.
Can be moved up and down when two locking bolts are loosened.
plate
When this indicator is lit up the laser system is ready to emit the
laser radiation as soon as it receives instructions from control
software.
Laser output is available only when the interlock is connected.
It could be used to connect a laser emergency switch.
Turn the key switch ON to allow laser output.
Current rating 3.15A, slow acting type.
AC100-240V power input and output sockets. With output
feature you can connect the device to one another using the
input and output sockets. They must be the same fixtures. DO
NOT mix fixtures.
DMX Use these ports to connect DMX control signal or to daisy chain
the DMX signal between multiple laser display systems.
The inbuilt control interface allows you to control the laser
via Ethernet and DMX/ArtNet, but it also handles all the basic
settings of the laser system (master size and position, method
of control, colour settings etc.). All of these settings can be
accessed through the menu using the endless rotary knob and
once saved they are stored on included mini SD card.
ILDA compatible output port with signals from the projector's
FB4 controller.
Use this together with appropriate safety wire to secure the
system against unexpected fall.
Use this to control laser system by PC.
Elite Pro series Operational Manual (Revision 2022-10)
5
10
9
6
8
11 12
Function
