Atlas TSD-MIX42RT Owner's Manual

4x2 mic/line mixer with priority sense and remote control
Hide thumbs Also See for TSD-MIX42RT:
Table of Contents

Advertisement

Quick Links

Download this manual

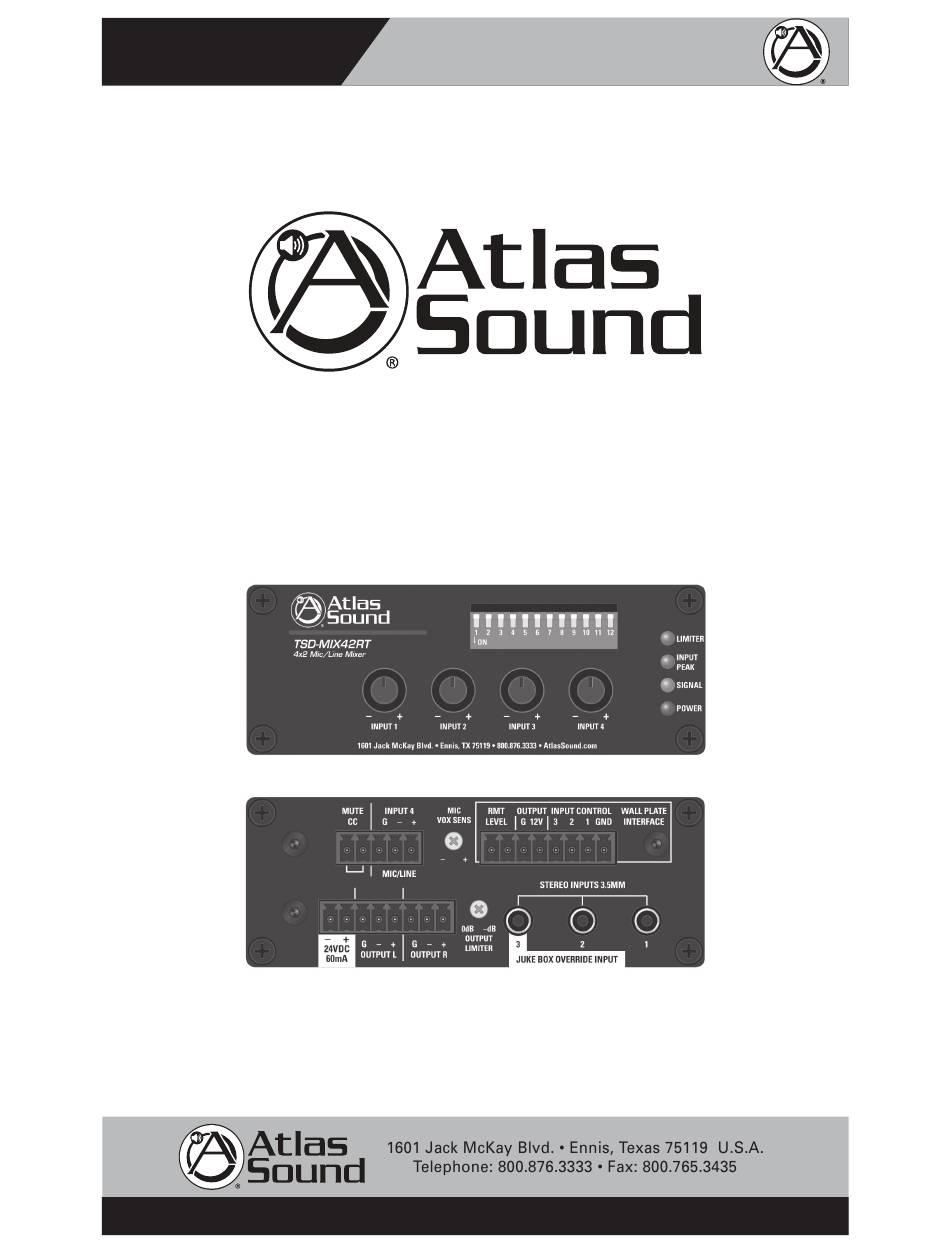

TSD-MIX42RT
Owner's Manual
4x2 Mic/Line Mixer
TSD-MIX42RT
4x2 Mic/Line Mixer with
Priority Sense and Remote Control
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSD-MIX42RT and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas TSD-MIX42RT

Summary of Contents for Atlas TSD-MIX42RT

  • Page 1 TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer TSD-MIX42RT 4x2 Mic/Line Mixer with Priority Sense and Remote Control – 1 – AtlasSound.com Specifications are subject to change without notice.
  • Page 2 Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). A remote level control feature allows use of the Atlas Sound AAVC-10K or WPD-VC10K decorative wall plate control for convenient remote adjustment of either the entire Master mix bus or Inputs 2, 3, or 4.

  • Page 3: Audio Applications

    TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Features Multiple Mounting Configurations Audio Applications Installation – 3 – AtlasSound.com Specifications are subject to change without notice.

  • Page 4: Front Panel Description

    TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Front Panel Description 1. Power LED - Illuminates Blue when 24VDC power is present. 2. Signal LED path. Note: 3. Input Peak LED - Illuminates Red when the output signal reaches 3dBV below when signal clipping will occur.

  • Page 5: Rear Panel Description

    TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Rear Panel Description 10 11 TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input external 24VDC power supply (sold separately). Because of the TSD’s low power consumption, a single external power supply may power more than one TSD.
  • Page 6 Note: Placement of the WPD-MIX42RT can be placed up to 200 ft away from the TSD-MIX42RT. The audio quality is not affected by the distance because no audio is present at the WPD wall controller. All that is needed to obtain maximum system control is 8 conductors, TSD-MIX42RT and a WPD-MIX42RT.

  • Page 7: Switch Position

    TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Dip Switch Function Identification Switch Position corresponding input terminal. Down position is ON. down position is Microphone. to reduce low frequency energy and to increase intelligibility. Down position is ON. ON position, if Input 3 receives a signal it will mute Inputs 1 or 2 if they are set to Mute Receive ON.
  • Page 8 TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security 1. Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator to the lowest setting on the panel and the potentiometer shaft slot.

  • Page 9: Block Diagram

    TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Block Diagram – 9 – AtlasSound.com Specifications are subject to change without notice.

  • Page 10: Specifications

    TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Specifications Chassis Color Black Chassis Material Aluminum Inputs Type Qty 3, Unbalanced Connection 3.5mm Stereo Impedance Maximum Input 1.6V (4.1dBV) Connection Removable 3 Position Captive Screw 3.5mm Spacing Impedance 1.2k Balanced, 600 Unbalanced Phantom...
  • Page 11 TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Dip Switch Function Indicators Input Peak Red, -3dB Before Clip, Qty 1 Power Blue, Qty 1 Electrical .06% @ 1kHz Mounting Brackets Qty 2, Included TSD-RMK Optional 1 RU Rack Mount Panel (Supports 4 TSD Units)

  • Page 12: Limited Warranty

    Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
  • Page 13 The TSD design mandate was to make the installation quick and reliable, saving you valuable time and money. The TSD-MIX42RT is housed in a compact 1.5" x 4" x 2.5" footprint that allows for placement almost anywhere. Common features include removable...
  • Page 14 Specifications Description 4 x 2 Stereo Line Mixer with Priority Sense & Remote Level Chassis Color Black Chassis Material Aluminum Inputs Type Qty 3, Unbalanced Connection 3.5mm Stereo Impedance Input Level 316mV (-10dB) = 2V (+6dBV) Balanced Output, Maximum Input 1.6V (4.1dBV) Type Qty 1, Balanced Mic or Line Selectable Connection...
  • Page 15 Electrical Frequency Response 20Hz - 20kHz (±1dB) .06% @ 1kHz Signal to Noise Line to Line: 85dBV Mic to Line: 78dBV Output Limiter Threshold Adjust 50mV Minimum Output to No Limit Mounting Velcro Industrial-Grade, Included Brackets Qty 2, Included TSD-RMK Optional 1 RU Rack Mount Panel (Supports up to 4 TSD Units) Cable Retainer Qty 2, Included...
