Atlas F6-AMIX Owner's Manual

Multi-function analog mixer card accessory module for f6-mf
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F6-AMIX
Owner's Manual
Multi-Function Analog Mixer Card
F6-AMIX
Multi-Function Analog Mixer Card
Accessory Module for F6-MF
Important: All F6-MF accessory modules must be installed by a qualified technician.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F6-AMIX and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas F6-AMIX

Summary of Contents for Atlas F6-AMIX

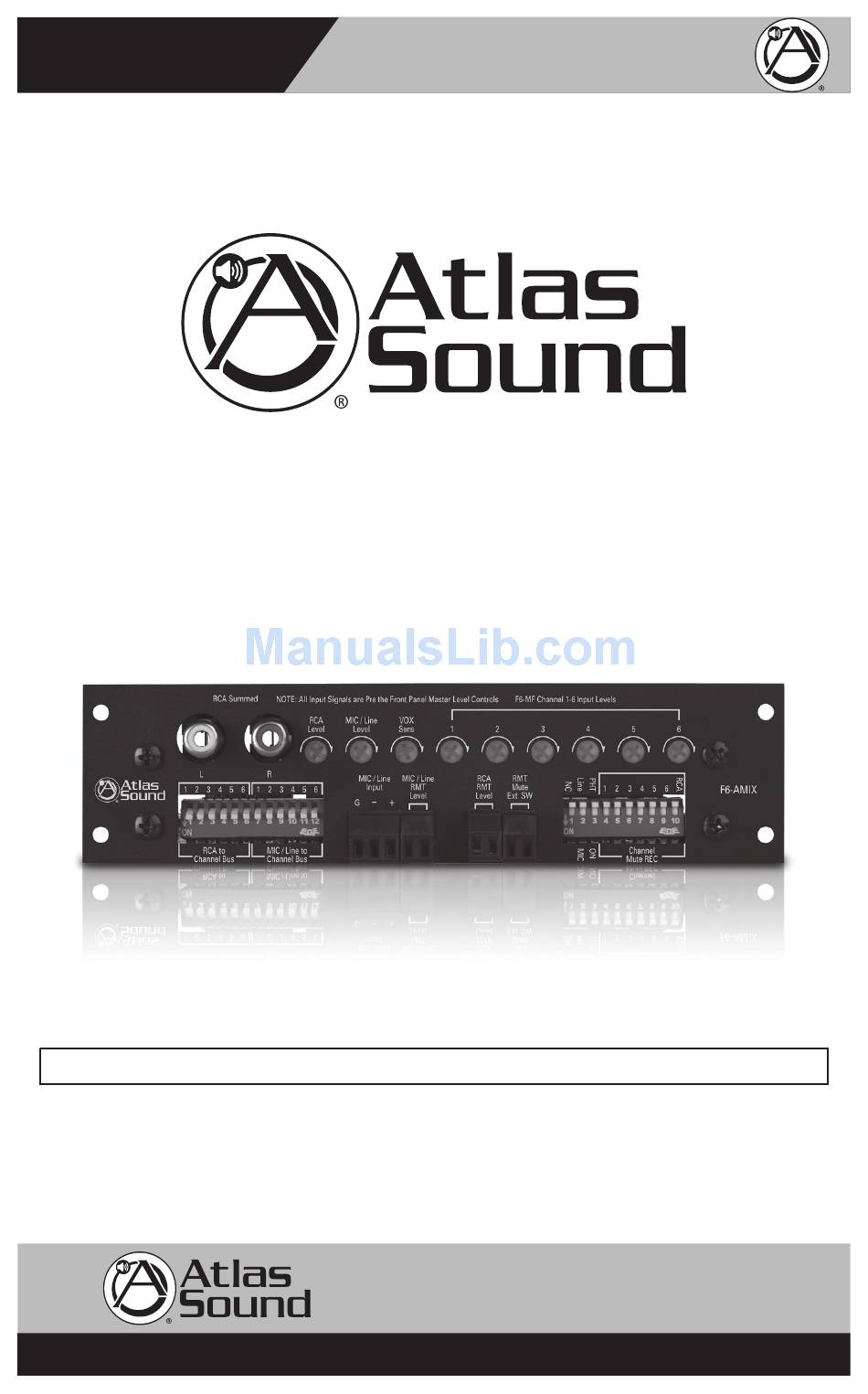

  • Page 1 F6-AMIX Owner’s Manual Multi-Function Analog Mixer Card F6-AMIX Multi-Function Analog Mixer Card Accessory Module for F6-MF Important: All F6-MF accessory modules must be installed by a qualified technician. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 –...
