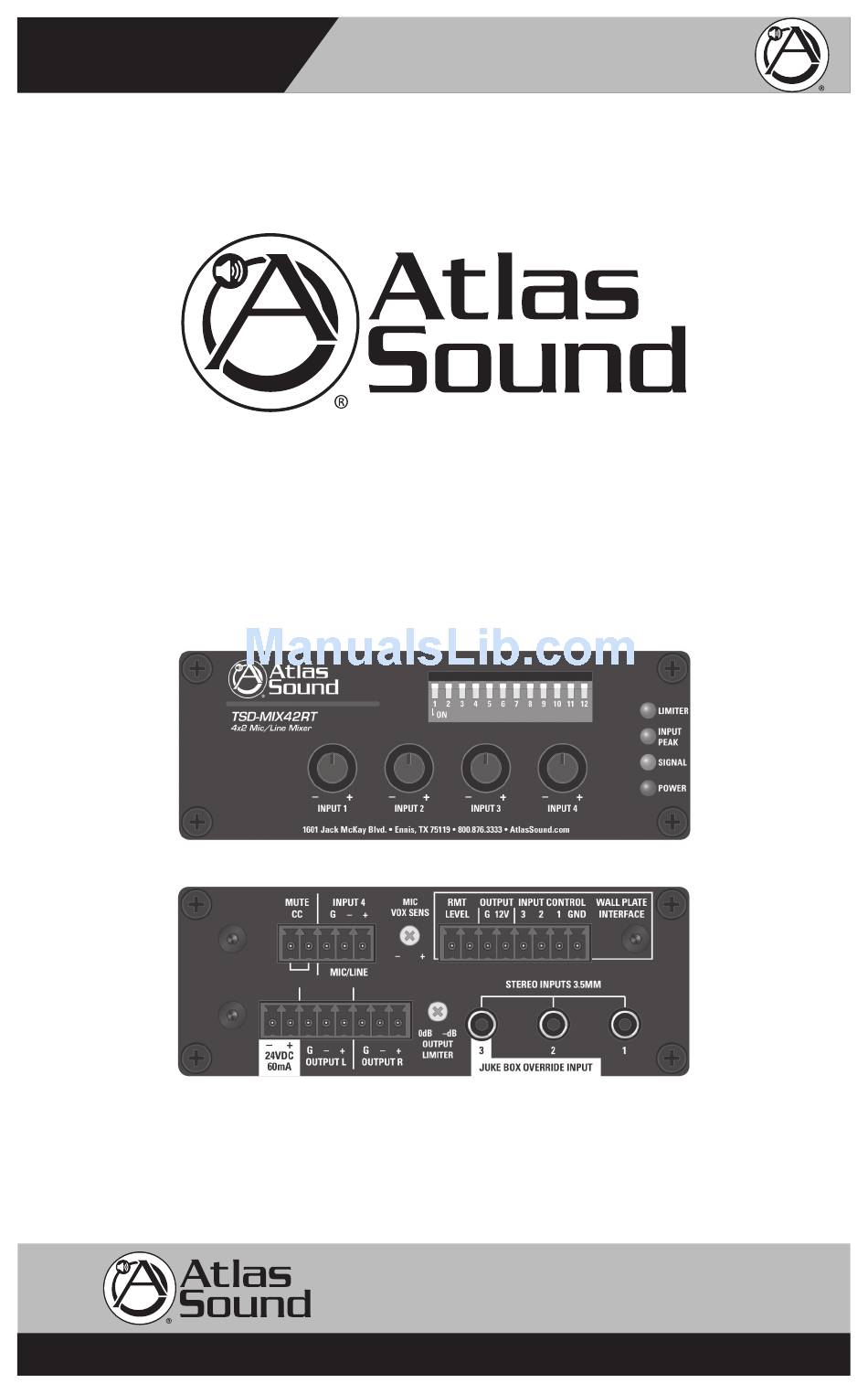

- Page 1 TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer TSD-MIX42RT 4x2 Mic/Line Mixer with Priority Sense and Remote Control 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.
- Page 2 Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). A remote level control feature allows use of the Atlas Sound AAVC-10K or WPD-VC10K decorative wall plate control for convenient remote adjustment of either the entire Master mix bus or Inputs 2, 3, or 4.
-
Page 3: Installation
TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Features • Stereo or Mono Configurations • One Balanced Mic/Line Input • Switchable 24V Phantom Power • Three Unbalanced Stereo Line Inputs 3.5mm • Vox Sense and Contact Closure, Priority Mute • Variable Output Limiter • Remote Level Control • 12dB/Octave Low Cut Filter @ 125Hz Mic/Line • Remote Control Input Select & Level Control • Audio Auto Sensing Juke Box Override • Input Signal & Peak Indicator LEDs • High Gain Output for Driving Long Balanced Lines • Separate Ground Connections • Security Covers Included for All Front Panel Controls • Cable Management System • Multiple Mounting Configurations • Removable Phoenix Style I/O Connectors... -
Page 4: Front Panel Description
TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Front Panel Description 1. Power LED - Illuminates Blue when 24VDC power is present. 2. Signal LED - Illuminates Green when the input signal strength reaches 25mV to verify a signal path. Note: The LED will not illuminate if the input level is turned Off. 3. Input Peak LED - Illuminates Red when the output signal reaches 3dBV below when signal clipping will occur. -
Page 5: Rear Panel Description
TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Rear Panel Description 10 11 TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position c onnector for an external 24VDC power supply (sold separately). Because of the TSD’s low power consumption, a single external power supply may power more than one TSD. - Page 6 Note: Placement of the WPD-MIX42RT can be placed up to 200 ft away from the TSD-MIX42RT. The audio quality is not affected by the distance because no audio is present at the WPD wall controller. All that is needed to obtain maximum system control is 8 conductors, TSD-MIX42RT and a WPD-MIX42RT.
-
Page 7: Switch Position
TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Dip Switch Function Identification Switch Position • Dip Switch # 1 - 24VDC Phantom Power applies power for condenser mic operation to corresponding input terminal. Down position is ON. • Dip Switch # 2 - Input Mic or Line Select for input gain selection for Input 4. Up position is Line, down position is Microphone. • Dip Switch # 3 - Low Cut Filter engages at 125Hz with a roll off rate of 12dB per octave. This filter operates either in the Line or Mic mode and is available on Input 4. Ideal for vocal microphones to reduce low frequency energy and to increase intelligibility. Down position is ON. - Page 8 TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with an included security cover. Follow these steps to prevent potentiometer damage or unwanted changes. 1. Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator to the lowest setting on the panel and the potentiometer shaft slot.
-
Page 9: Block Diagram
TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Block Diagram 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 9 – AtlasSound.com Specifications are subject to change without notice. -
Page 10: Specifications
TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Specifications Description 4 x 2 Stereo Line Mixer with Priority Sense & Remote Level Chassis Color Black Chassis Material Aluminum Inputs Type Qty 3, Unbalanced Connection 3.5mm Stereo Impedance 10kΩ Input Level 316mV (-10dB) = 2V (+6dBV) Balanced Output, Maximum Input 1.6V (4.1dBV) Type Qty 1, Balanced Mic or Line Selectable Connection Removable 3 Position Captive Screw 3.5mm Spacing Impedance 1.2kΩ... - Page 11 TSD-MIX42RT Owner’s Manual 4x2 Mic/Line Mixer Dip Switch Function Dip Switch # 1 24VDC Phantom Power Dip Switch # 2 Input 4 Mic or Line Select Dip Switch # 3 Low Cut Filter 125Hz Dip Switch # 4 Juke Box Override Dip Switch # 5 Juke Box Override Mute Hold Delay Dip Switch # 6 Input 3 Mute Receive Dip Switch # 7 Input 2 Mute Receive Dip Switch # 8 Input 1 Mute Receive Dip Switch # 9 Outputs Left and Right Stereo/Mono Dip Switch # 10 Remote Level Master/Inputs 1,2,3 Dip Switch # 11 Wall Plate Activation Dip Switch # 12 Not Used Indicators Input Signal Green, 25mV ON Threshold, Qty 1 Input Peak Red, -3dB Before Clip, Qty 1...
-
Page 12: Limited Warranty
Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
