Atlas TSD-MIX31RL Owner's Manual

3x1 mic/line mixer with priority mute & remote level
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TSD-MIX31RL
Owner's Manual
3x1 Mic/Line Mixer
TSD-MIX31
3x1 Mic/Line Mixer
with Priority Mute & Remote Level
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSD-MIX31RL and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas TSD-MIX31RL

Summary of Contents for Atlas TSD-MIX31RL

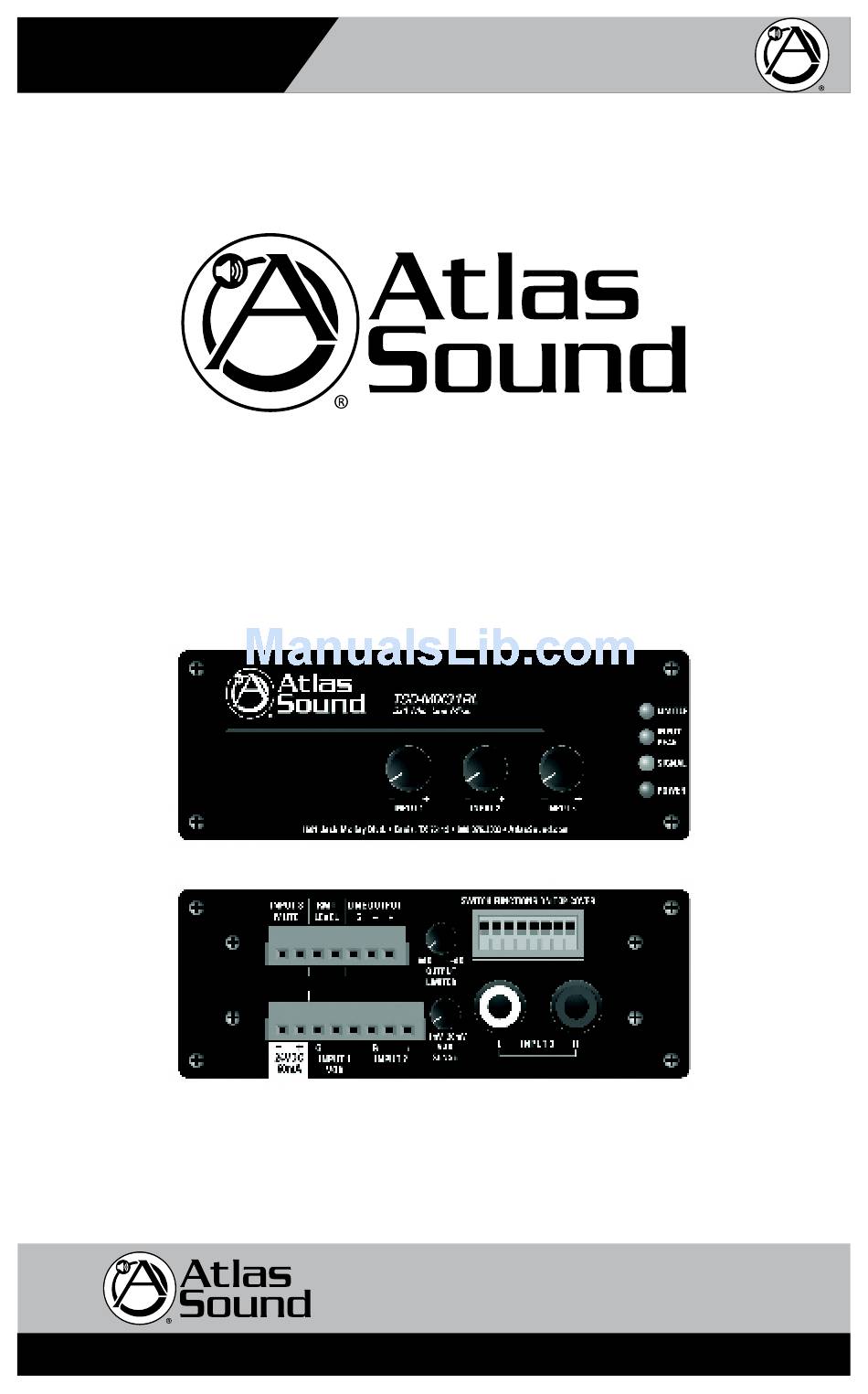

  • Page 1 TSD-MIX31RL Owner’s Manual 3x1 Mic/Line Mixer TSD-MIX31 3x1 Mic/Line Mixer with Priority Mute & Remote Level 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.

  • Page 2: Audio Applications

    The TSD-MIX41 is part of a full line of Atlas Sound Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest and in the most efficient and cost-effective way.

  • Page 3: Front Panel Description

    TSD-MIX31RL Owner’s Manual 3x1 Mic/Line Mixer Front Panel Description 1. Inputs Level Controls 1 and 2 - Independently adjust the gain of the input 1 and 2 input signals. Turn clockwise to increase the signal level and counter-clockwise to decrease it. Note: The Input Level Control knobs can be removed and replaced with a supplied security cover to prevent unauthorized adjustment.

  • Page 4: Rear Panel Description

    TSD-MIX31RL Owner’s Manual 3x1 Mic/Line Mixer Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connector has a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately).

  • Page 5: Switch Position

    TSD-MIX31RL Owner’s Manual 3x1 Mic/Line Mixer Dip Switch Function Identification Switch Position • DIP SW # 1,2 - 24VDC Phantom Power applies power for condenser mic operation to corresponding input terminal. Down position is On. • DIP SW # 3 - Input Mic or Line Select for input gain selection for Input 1. Up position is Line, down position is Microphone. • DIP SW # 4 - Low Cut Filter engages at 125Hz with a roll off rate of 12dB per octave. This filter operates either in the Line or Mic mode and is available on Input 1. Ideal for vocal microphones to reduce low frequency energy and to increase intelligibility.

  • Page 6: Block Diagram

    TSD-MIX31RL Owner’s Manual 3x1 Mic/Line Mixer Block Diagram DIP SWITCH FUNCTION SET INPUT 1 INPUT 2 INPUT 1 INPUT 2 INPUT 3 REMOTE INPUT 1 INPUT 2 LEVEL PHANTOM MUTE RCV LOW CUT LOW CUT LINE LINE INPUT 3 MIXED...
  • Page 7 TSD-MIX31RL Owner’s Manual 3x1 Mic/Line Mixer Impedance 300Ω Balanced, 150Ω Unbalanced Line Output Level 1V (0dBV) In = 2V (+6dBV), Maximum Output 6V (15dBV) Controls Input Level Control Qty 3, Removable Knobs with Security Covers Output Level Control Qty 1, Removable Knob with Security Cover...

  • Page 8: Limited Warranty

    Atlas Sound products, including SOUNDOLIER brand, and ATLAS SOUND brand products except as follows: one year on electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions. We will not be responsible...
