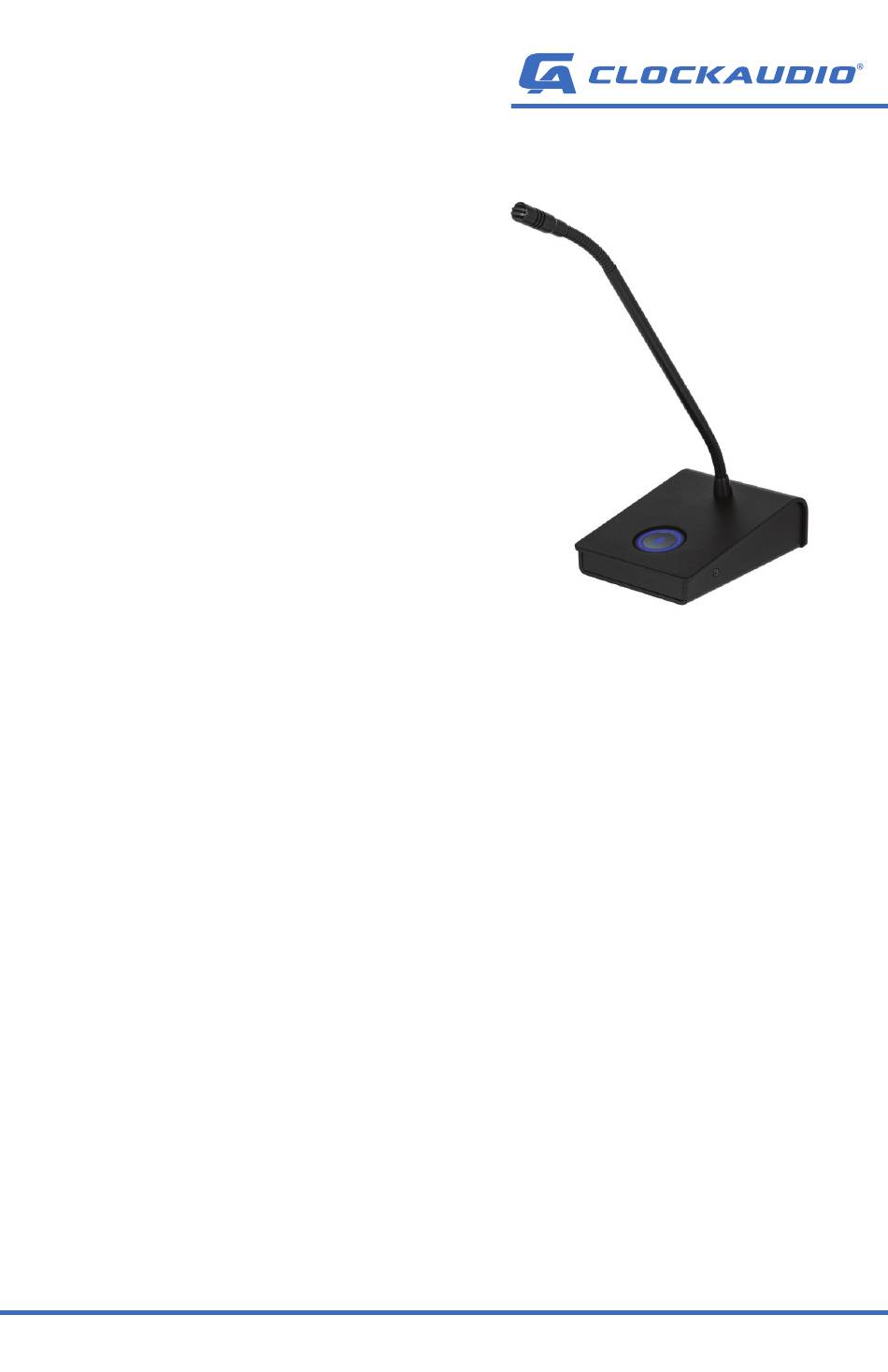

CLOCKAUDIO CUB-33
Conference USB Microphone
Clockaudio Ltd.
Unit C, Wellington Gate, Silverthorne Way,
Waterlooville, Hampshire PO7 7XY, UK
Tel: +44(0)23 9225-1193
Fax: +44(0)23 9225 1201
Email: info@Clockaudio.co.uk
Clockaudio North America Inc.
2891 du Meunier, Unit 103, Vaudreuil-Dorion, QC,
Canada J7V 8P9
Toll Free: 1-888-424-9797
Tel: 450-424-9797
Fax: 450-424-3660
Email: info@clockaudio.com
Clockaudio PTE Ltd.
BizTech Centre, Unit # 01-02, 627A Aljunied Road,
Singapore, 389842
Tel: +65 67484738
Fax: +65 67484428
Email: info@clockaudio.com.sg
1
Advertisement
Related Manuals for Clockaudio CUB-33
Summary of Contents for Clockaudio CUB-33
- Page 1 Unit C, Wellington Gate, Silverthorne Way, Waterlooville, Hampshire PO7 7XY, UK Tel: +44(0)23 9225-1193 Fax: +44(0)23 9225 1201 Email: info@Clockaudio.co.uk Clockaudio North America Inc. 2891 du Meunier, Unit 103, Vaudreuil-Dorion, QC, Canada J7V 8P9 Toll Free: 1-888-424-9797 Tel: 450-424-9797 Fax: 450-424-3660 Email: info@clockaudio.com...
- Page 2 • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Only use attachments/accessories as specifi ed by Clockaudio. • Refer all servicing to qualifi ed service personnel. Servicing is required when...
- Page 3 LIMITED ONE YEAR WARRANTY The equipment is warranted for one year from date of purchase from Clockaudio against defects in materials or workmanship. This warranty does not cover equipment which has been abused or damaged by careless handling or shipping.
-
Page 4: Table Of Contents
CONTENTS GETTING STARTED DIAGRAM OF FUNCTIONS SETTING UP THE CUB-33 CONNECTING TO PC/MAC VIA USB USING THE CUB-33 MICROPHONE PLACEMENT APPLICATION EXAMPLES SPECIFICATIONS... -
Page 5: Getting Started
C33/SR gooseneck, the CUB-33 provides high intelligibility audio for your video conferencing needs. The configurable Touch LCD screen on the front of the CUB-33 allow quick access to MUTE functions, color coded so you always know if you are muted or live. -
Page 6: Diagram Of Functions
DIAGRAM OF FUNCTIONS 1. Rotary Knob/Setup Button 2. USB Port USB streaming port (Type B) for connection to Windows or Mac PC (Type A). Also powers the CUB-33. 3. K-LOCK Slot 4. C33/SR Gooseneck with C3 microphone capsule 5. Touch LCD Screen... -
Page 7: Setting Up The Cub-33
3. Setup the CUB-33 on the computer (if necessary) CONFIGURING THE CUB-33 Press the Rotary Knob on the back of the CUB-33 until the setup menu appears (approximately1.5 seconds). Turn the Rotary Knob to access each menu feature. PRESS the Rotary Knob to edit the selected item. - Page 8 • LATCH – In Latch mode, press the button to turn on the MUTE and press again to turn off MUTE. • PTM – In PTM (Press to Mute) mode, the CUB-33 will only mute WHILE the button is being pressed.
-
Page 9: Connecting To Pc/Mac Via Usb
CONNECTING TO PC/MAC VIA USB The CUB-33 is a plug and play USB interface. When connected to a Windows PC or Mac computer, the CUB-33 will show up as CUI-2 USB Mic Preamp, a single channel input device. Launch Windows Sound panel (on a Windows PC) or Sound from System Preferences (on a Mac computer) to verify the CUB-33 has installed properly. - Page 10 Once the gain is set properly, exit the setup menu. VERIFY STREAMING AND GAIN LEVELS VIA USB After you have adjusted the gain on the CUB-33, verify that it is passing the signal to a Windows or Mac PC. Connect the CUB-33 to a Windows or Mac Launch Windows Sound panel (on a Windows PC) or Sound from System Preferences (on a Mac computer).
-
Page 11: Using The Cub-33
Press the microphone icon “button” on the Touch LCD screen to mute audio. This will MUTE the CUB-33 on the device itself and no audio will be sent to your software. If you are using Zoom, the CUB-33 will send a message to the software and your audio will be muted BOTH from the device AND in the software. -
Page 12: Microphone Placement
Another factor to keep in mind with noise is proximity: the closer to the noise source you are, the louder it will be. The CUB-33 gooseneck will help to aim the microphone toward you while rejecting keyboard noise. -
Page 13: Application Examples
APPLICATION EXAMPLES The CUB-33 is an ideal videoconferencing microphone. Use it with any videoconferencing software that allows for a USB microphone. Gooseneck positioned in front of mouth for voice calls. Gooseneck positioned to be out of screen view for easy video... -
Page 14: Specifications
SPECIFICATIONS MICROPHONE & AUDIO SPECIFICATIONS Gain Variable (0-50dB) -123dBu System THD+N 0.005% at any gain, input signal 3dB below maximum Frequency Response 50Hz - 18kHz Polar Pattern Cardioid Sensitivity -37dB +/- 3dB at 1 KHz (0dB=1 V/Pa) GENERAL SPECIFCATIONS Gooseneck Length 300mm (11.8”) Gooseneck Type Condenser (back electret) - Page 15 Unit C, Wellington Gate, Silverthorne Way, Waterlooville, Hampshire PO7 7XY, UK Tel: +44(0)23 9225-1193 Fax: +44(0)23 9225 1201 Email: info@Clockaudio.co.uk Clockaudio North America Inc. 2891 du Meunier, Unit 103, Vaudreuil-Dorion, QC, Canada J7V 8P9 Toll Free: 1-888-424-9797 Tel: 450-424-9797 Fax: 450-424-3660 Email: info@clockaudio.com...
