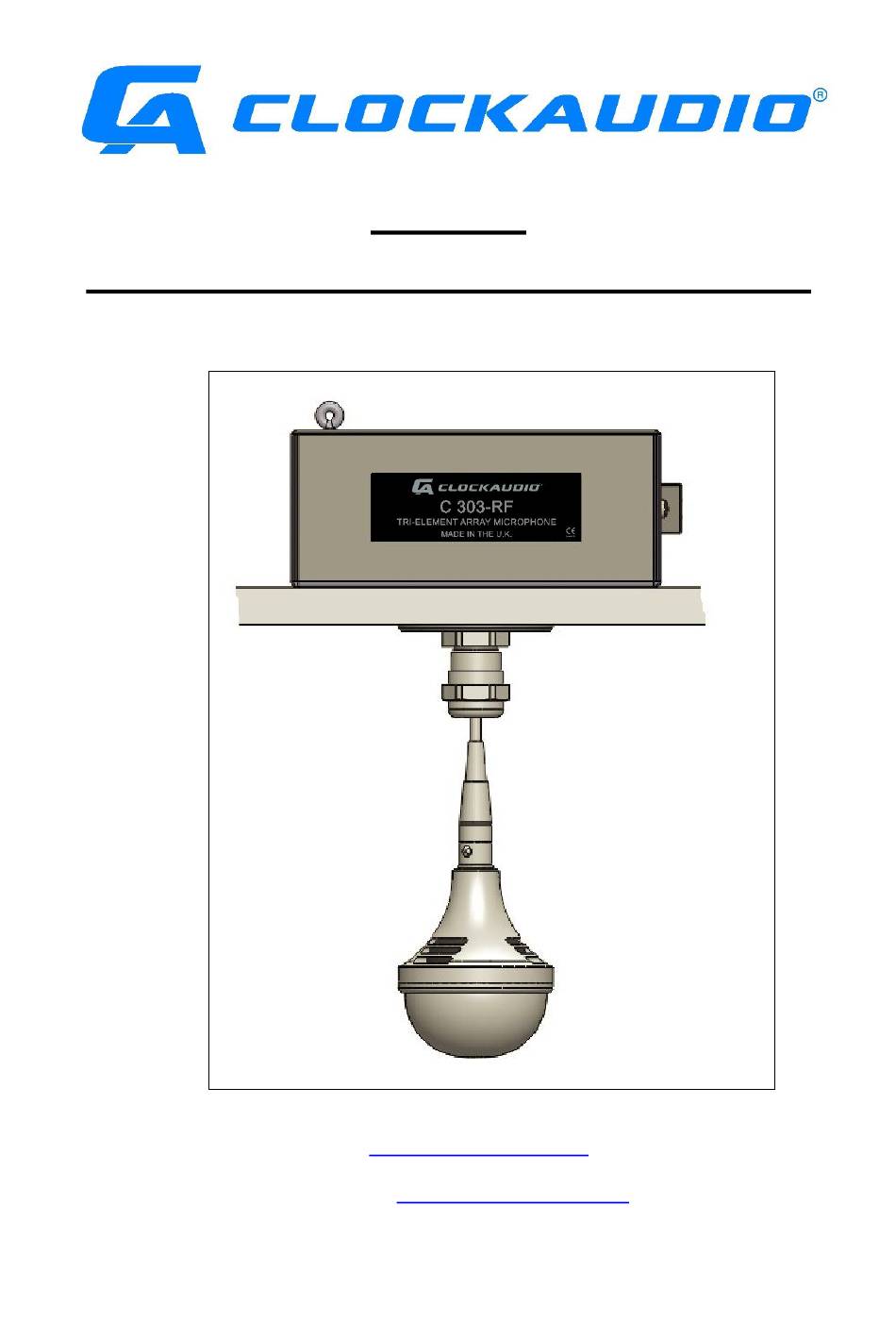

- Page 1 C 303-RF Tri-element Array Microphone Instructions www.clockaudio.com email: info@clockaudio.co.uk Clockaudio Ltd, Wellington Gate, Silverthorne Way, Waterlooville, Hampshire, PO7 7XY, England...
-
Page 2: Table Of Contents
CONTENTS 1. C 303-RF Installation Instructions............3 1.1. Packaging ..................3 1.2. Installation ................... 3 1.3. Electrical connections ..............4 2. Safety ....................6 3. Product Warranty ................7 4. Disposal of Unit ................. 8... -
Page 3: C 303-Rf Installation Instructions
1. C 303-RF Installation Instructions 1.1. Packaging The C 303-RF packaging contains C303 Microphone An enclosure containing a 2.5m (8ft) cable 1 x Link cable 1 x C303 microphone 1 x Cable gland 1 x Safety Harness kit consisting of cable with hook and lock. -
Page 4: Electrical Connections
3. Open top lid of the enclosure and remove the microphone cable. 4. Position the hole in the bottom of the enclosure over the previously drilled hole in the ceiling. 5. Insert the cable gland, threaded portion, up through ceiling tile and enclosure. 6. - Page 5 5. Push / connect the microphone to the Mini XLR connector. Warning: Do not pull on the cable once installation has been completed as there is a potential for damage to a ceiling tile. 6. Connect a straight wired cable (CAT 5, 5e or 6) fitted with an RJ45 to RJ45 Male connector observing 568B wiring standard.
-
Page 6: Safety
2. Safety IMPORTANT: For safety reasons the completed installation should be secured to a ceiling truss or any structure capable of taking 3Kgs (7lbs) this includes the weight of a ceiling tile. Replace one of the 4 enclosure lid screws with the supplied M3 eyebolt and washer. Attach the supplied safety harness hook to the eyebolt on top of the C 303 metal case and insert the free end of the cable through the entrance hole on the gripper. -
Page 7: Product Warranty
3. Product Warranty Thank you for purchasing a Clockaudio product. We are confident that this product will give you many years of trouble free operation and is backed up with a 2 year warranty. This product is guaranteed for 24 months from the date of purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, or repaired free of charge by the agent from whom you purchased the unit. -
Page 8: Disposal Of Unit
4. Disposal of Unit At the end of the life of this equipment, dispose of equipment according to local regulations For more information and advice on Clockaudio products please look on Clockaudio website: www.clockaudio.com Clockaudio Limited, Clockaudio North America Inc.
