Summary of Contents for Signature CUVEE S28

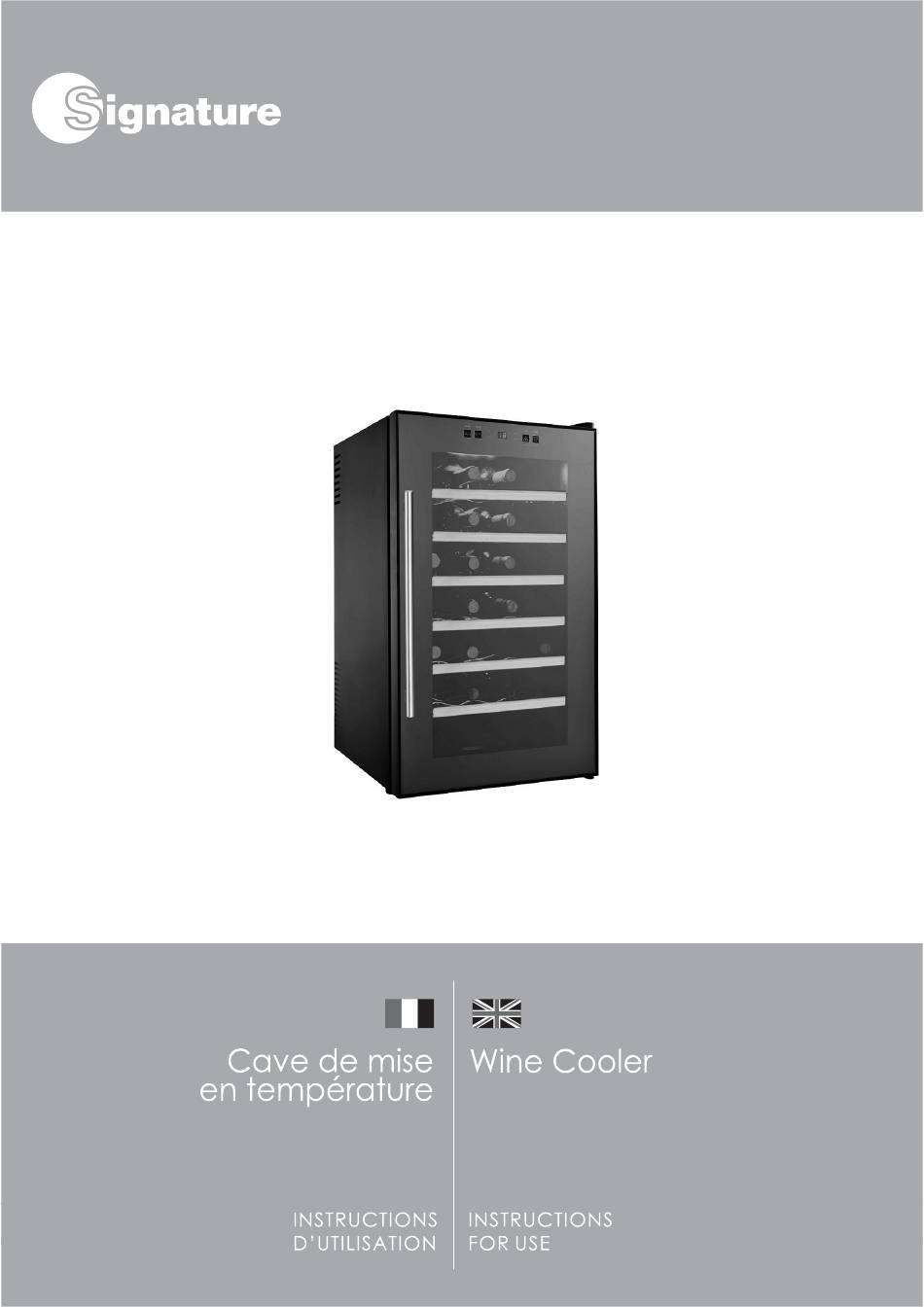

- Page 1 CUVEE S28...
- Page 3 Cet appareil est destiné à ê utilisé dans des applications domestiques et analogues telles que: servé – les coins cuisines ré s au personnel des magasins, bureaux et autres environnements professionnels; – les fermes et l'utilisation par les clients des h tels, motels et autres environnements à...
- Page 4 Danger: Risque d'incendie.
- Page 5 CUVEE S28...
- Page 6 Vous pouvez afficher la température en degrés Fahrenheit ou en degrés Celsius en appuyant sur la touche pendant 1 seconde. Le degré va apparaitre en bleu dans l'affichage digital.
-
Page 7: Remplacement De L'ampoule
Appuyez de nouveau sur la touche et l'affichage LED de la tempé rature se rallumera. CUVEE S28. REMPLACEMENT DE L'AMPOULE Retirez le couvercle transparent en le tournant dans le sens inverse des aiguilles d'une montre. Retirez le circuit imprimé de lampe à l'aide de la lame d'un couteau. - Page 8 Veillez à ne pas vous tromper la direction de fixation de lampe et assurez-vous que les terminales +/- du circuit imprimé soient insé ré correctement. La lampe s'allumera. Remettez le couvercle en place et sé rrez-le bien dans le sens des aiguilles d'une montre.
- Page 12 CUVEE S28 50/60...
- Page 13 WARNINIG INDICATION OF PARTS TEMPERATURE CONTROL ELECTRIC DIAGRAM INSTRUCTION FOR USES VENTILATION TROUBLE SHOOTING GUILDS TECHNICAL DATA...
- Page 14 · WARNING 1.-WARNING:Keep ventilation opening in the appliance enclosure or in the built-in structure, clear of obstruction. -WARNING:Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. -WARNING:Do not damage the refrigerant circuit. -WARNING:Do not use electrical appliances inside the food storage compartments of the appliance,unless they are of the type recommended by the manufacturer.
- Page 15 ·INDICATION OF PARTS CUVEES28 1. Cabinet Upper Door Hinge /Cover 2. Flat door hinge Control PCB 3. Shelf (Total 6) Glass Door 4. Fan Cover 10. Hande 5. Ventilation Holes 11 . Door Gasket Bottom hinge...
- Page 16 · TEMPERATURE CONTROL It is recommended you install the Wine Chiller in a place where the ambient temperature is between 23°-26°C/72°-78°F. If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate.
- Page 17 Ø Storage Capacity NOTE: You can place 28 standard bottles in model of CUVEE S28. Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles and include bulk storage.
- Page 18 · INSTRUCTION FOR USERS 1 Note 1, 1 Position your wine cooler so that the plug is accessible. 1, 2 Keep your wine cooler out of direct sunlight. 1, 3 Do not place next to heat generating appliance. 1, 4: Do not place directly on the ground. Provide suitable stand. 2, Very important: 2, 1: The wine cooler will have better performance at ambient of 20-25 degree;...
- Page 19 ·VENTILATION When putting a TE wine cooler, ventilation should be considered seriously, please refer to the following: 1, there should be left at least 200 cm³ for ventilation 2, the distance between wall and wine cooler side should be at least 20mm 3, the bottom should be left at least 50mm for air flowing 4, air passing through must not be preheated 5, entire cooling system should be considered in the ventilation...
- Page 20 No defrost Stop working for at least one hour, then restart it Low ambient temperature Adjust the air-conditioner to be around 25degree ·TECHNICAL DATA Model No. CUVEE S28 Net Capacity (liters) Voltage (V) 220-240V Frequency (Hz) 50/60 Rated Power (W)
- Page 21 BUT INTERNATIONAL 1, AVENUESPINOZA 77184 EMERAINVILLE, FRANCE...
