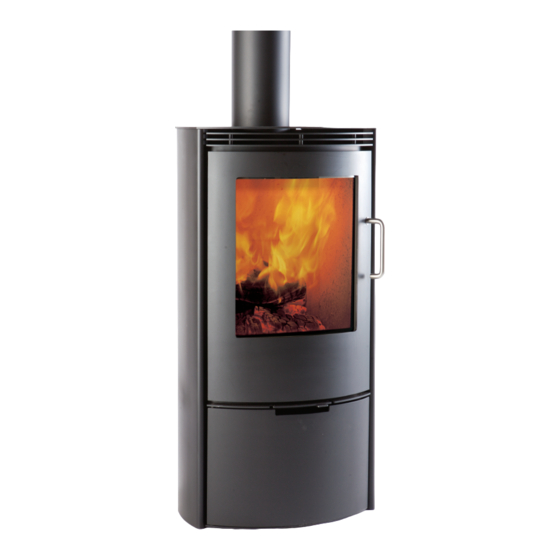

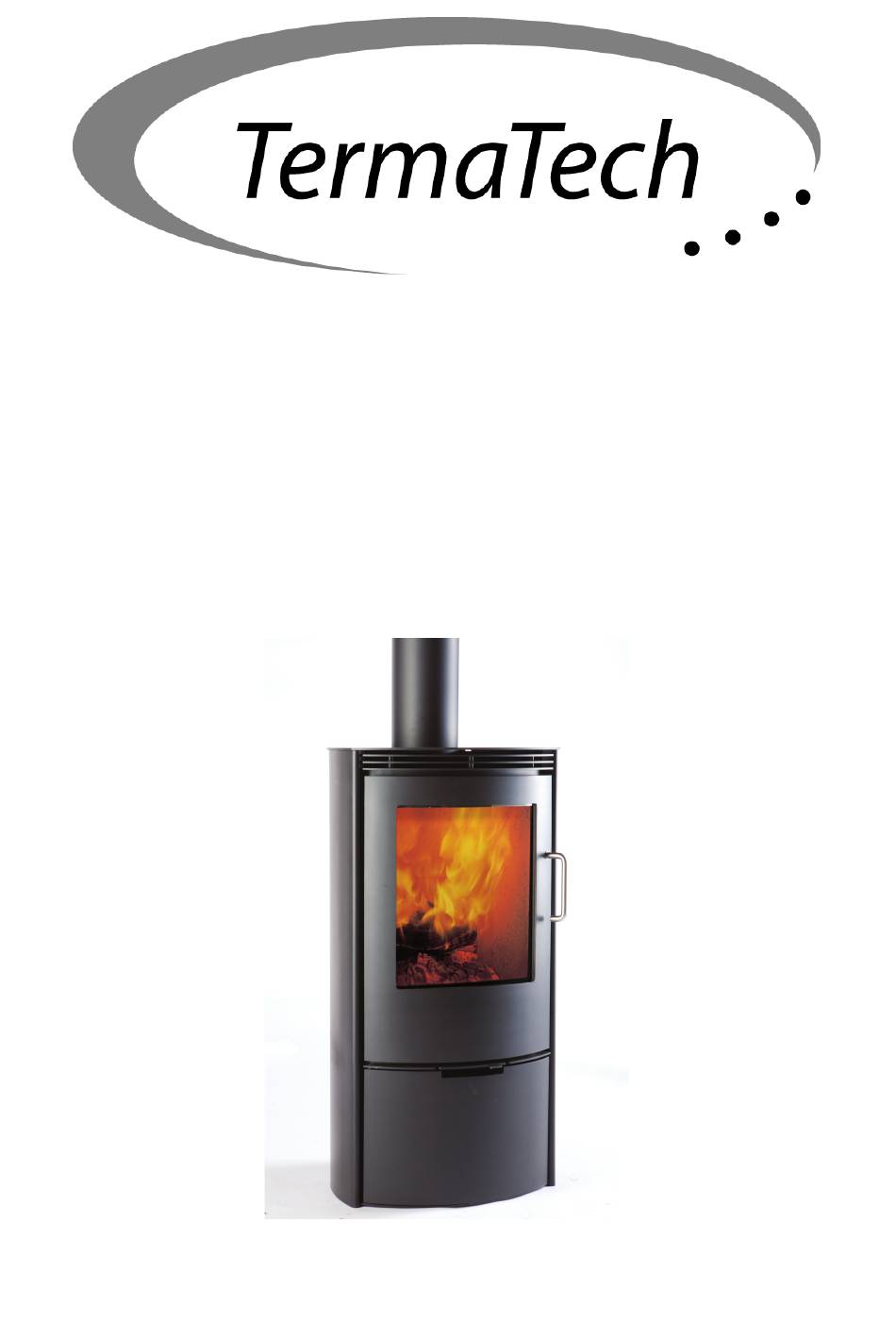

- Page 1 User and mounting manual Stove models: TT10 + TT10S + TT10H + TT10HS + TT10G CE approved according to: DS/EN13240 DS (Danish Standard), DIN (Deutsche Industrienorm), SINTEF (Norwegian Standard) and 15A (Austria) (UK Version 18.11.2009)
- Page 2 Congratulations on your new wood-burning stove. We thank you for choosing a TermaTech wood-burning stove and wish you many cosy and warm moments in the future. Before using the stove you should read the user and mounting manual so you are familiar with the legal requirements as well as the instructions regarding maintenance.
-
Page 3: Installation Instruction
Remember to make children aware of this danger and make sure to keep them away from the wood-burning stove when it is in use. For this purpose TermaTech offers various grates for the protection of children. (Ask your dealer) Allowed in the wood-burning stove... - Page 4 Only use dry and clean wood for combustion in the wood-burning stove. Maximum size of logs used in the stove is up to 30 cm in length and 10 cm in diameter. Only use dry wood. The burning of waste, synthetic materials and other treated or impregnated materials is not allowed as it is very hazardous to the environment.
- Page 5 Distance to flammable material: The stove must be put on a non inflammable foundation. This foundation must as a minimum cover 150 mm on each side of the stove and 300 mm in front of the stove. For inflammable material like inflammable walls made of wood, furniture, etc. the following minimum distances apply for safety reasons: 100 mm behind the stove to flammable material.
-
Page 6: Lighting Instruction
It is possible to connect the wood-burning stove to chimneys that are also used for other purposes. However, the concrete conditions must be assessed by the fitter and/or chimney sweep. If the stove is to be mounted with back exit the following is done: The round, welded or screwed cover plate at the back of the stove is removed. - Page 7 As help for lighting the control knob/damper can be pushed down a little and pushed completely to the right. This start help adds some air from below and ensures faster lighting. After a few minutes the control knob/damper is returned to the normal position (between the left and middle position). Lighting and continuous firing at EN-testing 1.
- Page 8 Original parts which need to be changed due to wear can be found at your dealer. Because of fit etc. only original parts from TermaTech should be used. Right to claim compensation for defective product is under current law.
- Page 9 When stating deviations the use of the product must be suspended immediately and the dealer must be contacted. Chimney/Flues Must be swept on regular occasions, as per manufacturers recommendations. 4. HINTS Lighting after long break If the stove has not been used for a long time the chimney should be checked for possible blockage before lighting.
- Page 10 Bio-briquettes can be used, but they develop a lot of ash and dust. Put in max. 2 kg per hour. Energy coke must not be used as it contains a lot of sulphur which wears on a stove, the chimney and the environment. The life of stove and chimney will be significantly reduced by using this firing type and the right to claim compensation for the product is void.
-
Page 11: Technical Specifications
111kg (TT10+TT10G) 205kg (TT10S) TT10H + TT10HS Height: 1244mm (TT10H) 1279mm (TT10HS) Width: 518mm (TT10H) 525mm(TT10HS) Depth: 462 mm (TT10H) 490 mm (TT10HS) Weight: 145kg (TT10H) 260kg (TT10HS) Average values for testing of TT10 models: Exhaust gas temperature 320 °C Exhaust gas mass flow 4.5 g/s... - Page 12 Nominal effect 5.1 kW Uptake 12 Pa...
