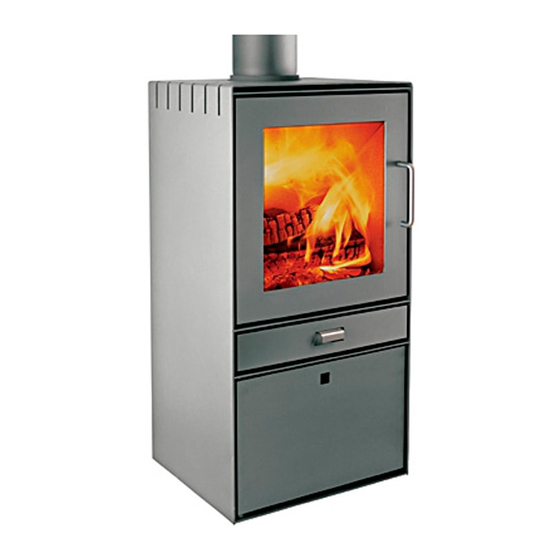

- Page 1 User and mounting manual Stove models: TT1,TT2 and TT3 models CE approved according to: DS/EN13240 DS (Danish Standard), DIN (Deutsche Industrienorm), SINTEF (Norwegian Standard) and 15A (Austria) Version 18.11.09 english...
- Page 2 Congratulations on your new wood-burning stove. We thank you for choosing a TermaTech wood-burning stove and wish you many cosy and warm moments in the future. Before using the stove you should read the user and mounting manual so you are familiar with the legal requirements as well as the instructions regarding maintenance.
-
Page 3: Installation Instruction
1. INSTALLATION INSTRUCTION The stove is intended for ”intermittent combustion”. It is not meant to “heat over” at night. By following the instruction below in “Lighting instruction” the best and most environmentally friendly combustion is achieved. The wood-burning stove is delivered ”ready for mounting” (the exhaust branch may need to be screwed on) and must be connected to the chimney with a smoke pipe. - Page 4 Remember to make children aware of this danger and make sure to keep them away from the wood-burning stove when it is in use. For this purpose TermaTech offers various grates for the protection of children. (Ask your dealer) Allowed in the wood-burning stove Only use dry and clean wood for combustion in the wood-burning stove.
-
Page 5: Combustion Air
The chimney must also be cleaned by the chimney sweep who will set the necessary intervals for cleaning / sweeping. The wood-burning stove should be checked by a professional about once a year. Combustion air Combustion air is a precondition for a good and clean combustion. The air is normally taken from the room where the wood-burning stove is mounted, however in some circumstances it may be necessary to provide extra air in the room where the stove is placed. - Page 6 It is recommended that there is a minimum of 80-100 mm behind and beside the stove so the stove can dispose of the heat, this distance makes cleaning of and around the stove easier. In addition, refer to the relevant Building Regulations.
-
Page 7: Lighting Instruction
It is very important to use screws and / or other materials, which are working together with the materials of the wall. The stove has a weight of approx. 100 kg. Ask your Hetas installer or your stove dealer, if you have further questions about security and local rules. - Page 8 to the right) for a few minutes at lighting. Put about 10 kindling sticks (dia. 2-3 cm) in the bottom of the stove, laid in a criss-cross pattern as a log house. Put 2 firelighters in the middle and light them. 2.
-
Page 9: Chimney Fire
Original parts which need to be changed due to wear can be found at your dealer. Because of fit etc. only original parts from TermaTech should be used. Flue / Chimney must be swept on regular occasions, as per manufacturers recommendations. - Page 10 Wood like birch, beech, oak, ash, elm, pine wood and wood from fruit trees is all suitable for splitting into firewood. Waste products like pressure-treated wood, chipboard, coloured brochure or glossy paper must not be used in a wood-burning stove. They develop hydrochloric acid or heavy metals which cause a lot of damage to the stove and the environment.
- Page 11 5. MALFUNCTIONS If problems should occur with the use of the stove the cause can possibly be found below. If not, then you are always welcome to contact your dealer. The stove is difficult to control – it burns too fast If the stove is new, then check that the directions have been followed.
- Page 12 The wood is too moist. Lack of draught in the chimney. Check that the damper is not closed. Door is closed too early at lighting (point 3 section 2). 6.TECHNICAL SPECIFICATIONS TT1, TT1z, TT1W, TT2, TT3, TT3S, TT3H, TT3HS Height: 980 mm (TT1,TT2,TT3) 653mm (TT1W)
- Page 13 Weight: 121kg (TT1,TT2,TT3) 101kg (TT1W) 192kg (TT3S) 140kg (TT3H) 250kg (TT3HS) Average values for testing of TT1, TT2, TT3 models: Exhaust gas temperature 244 °C Exhaust gas mass flow 6,0 g/s Effect degree Nominal effect 5,1 kW Uptake 12 Pa...
