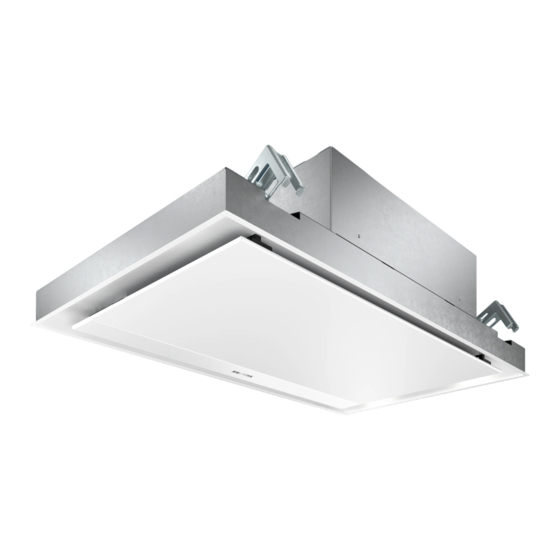

- Page 1 Ceiling-mounted ventilation system LR96CAQ20, LR96CAQ50, LR96CAQ50B User manual and installation instructions Register your product on My Siemens and discover exclusive ser- vices and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances...
-
Page 2: Table Of Contents
en Safety Table of contents Only use this appliance: ¡ For extracting cooking vapour. ¡ In private households and in enclosed spaces in a domestic environment. INFORMATION FOR USE ¡ Up to an altitude of max. 2000 m above sea level. Safety .............. 2 Do not use the appliance: Preventing material damage ....... - Page 3 Safety en WARNING ‒ Risk of poisoning! WARNING ‒ Risk of fire! Risk of poisoning from flue gases being Fatty deposits in the grease filters may catch drawn back in. Room-air-dependent heat-pro- fire. ▶ Never operate the appliance without a ducing appliances (e.g. gas, oil, wood or coal- operated heaters, continuous flow heaters or grease filter.
-
Page 4: Safety
en Safety WARNING ‒ Risk of injury! WARNING ‒ Risk of electric shock! Components inside the appliance may have If the appliance or the power cord is dam- sharp edges. aged, this is dangerous. ▶ Carefully clean the appliance interior. ▶ Never operate a damaged appliance. ▶... -
Page 5: Preventing Material Damage
Preventing material damage en 2 Preventing material damage If you put incorrect stress on the design elements, they 2.1 Avoiding material damage may break off. ATTENTION! ▶ Do not pull design elements. ▶ Condensate may cause corrosion damage. Do not place objects on the design elements or ▶... - Page 6 en Operating modes 4.2 Air recirculation mode The air which is drawn in is cleaned by the grease fil- ters and an odour filter, and conveyed back into the room. To bind odours in circulating-air mode, you must install an odour filter. The dif- ferent options for operating the appli- ance in circulating-air mode can be found in our catalogue.
-
Page 7: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Controls Switch the fan run-on on or off Home Connect You can use the control panel to configure all functions of your appliance and to obtain information about the Reset the filter saturation indicator operating status. - Page 8 en Basic operation 7.2 Switching off the appliance 7.10 Intermittent ventilation Switch the appliance off when you are not using it. With interval ventilation, the ventilation system switches on and off in the selected setting for the selected time. ▶ Press to switch the appliance off. Note: This function is only available in the Home Con- a The appliance switches off.
- Page 9 Home Connect en 7.14 Resetting the saturation indicator Press and hold and for approx. three seconds. a In the LED display, the LED for the setting that is After cleaning the grease filter or after changing the currently selected lights up.
-
Page 10: Hob-Based Hood Control
en Hob-based hood control ¡ We recommend that you install security updates as soon as possible. ¡ Installation takes a few minutes. You cannot use your appliance during installation. 8.4 Remote diagnostics Customer Service can use Remote Diagnostics to ac- cess your appliance if you contact them, have your ap- pliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance. -
Page 11: Cleaning And Servicing
Cleaning and servicing en 10 Cleaning and servicing To keep your appliance working efficiently for a long Observe the information regarding the cleaning time, it is important to clean and maintain it carefully. agents. → "Cleaning products", Page 11 Clean as follows, depending on the surface: 10.1 Cleaning products Clean stainless steel surfaces in the direction of ‒... - Page 12 en Cleaning and servicing Risk of falling when working on the appliance 10.6 Cleaning grease filters in the dishwasher The grease filters filter the grease from the cooking va- pour. Regularly cleaned grease filters guarantee a high level of grease removal. We recommend cleaning the grease filters every two months.
-
Page 13: Troubleshooting
Troubleshooting en Fold the grease filters upwards and engage the Remove the cover. locks. Remove the empty batteries. Make sure that the locks engage. Close the filter cover. Make sure that the filter cover locks engage cor- rectly. 10.9 Replacing the batteries in the remote control WARNING ‒ Risk of injury! Children may swallow batteries. -
Page 14: Customer Service
Service telephone number to find them again quickly. 13 Accessories You can buy accessories from the after-sales service, siemens-home.bsh-group.com from specialist retailers or online. Only use original ac- Accessories Order number cessories, as these have been specifically designed for your appliance. -
Page 15: Disposal
2014/53/EU. appliance. A detailed RED Declaration of Conformity can be found online at siemens-home.bsh-group.com among the ad- ditional documents on the product page for your appli- ance. Only applies to Great Britain 2.4 GHz band (2400–2483.5 MHz): Max. - Page 16 en Installation instructions 16.1 Included with the appliance After unpacking all parts, check for any damage in transit and completeness of the delivery. 16.3 Dimensions You will find the dimensions of the appliance here 16.2 Safety clearances Comply with the safety clearances for the appliance.
-
Page 17: Installation Instructions
Installation instructions en Risk of poisoning from flue gases being 16.4 Secure installation drawn back in. Follow these safety instructions when in- ▶ If an extractor hood with an open-flued heat stalling the appliance. production source is installed, the power WARNING ‒ Risk of poisoning! supply for the extractor hood must be Risk of poisoning from flue gases being provided with a suitable safety switch. - Page 18 en Installation instructions The appliance may fall down if it has not been If the appliance or the power cord is dam- properly fastened in place. aged, this is dangerous. ▶ All fastening components must be fixed ▶ Never operate a damaged appliance. ▶...
- Page 19 Installation instructions en ¡ To optimally detect the cooking vapours, install the Sharp-edged components inside the appliance may damage the connecting cable. appliance in the middle of the hob. ▶ Do not kink or trap the connecting cable. 16.6 Instructions for the exhaust air pipe ¡...
- Page 20 en Installation instructions Connecting the appliance Screw the flat duct connection onto the fan group. Undo the screws on the top frame assembly using a screwdriver and remove the top frame assembly. Installing the appliance WARNING ‒ Risk of injury! Components inside the appliance may have sharp edges.
- Page 21 Installation instructions en Loosen the screws on the side covers and remove Turning the air outlet to the back the covers. Starting with the delivery condition, turn the fan box clockwise so that the air outlet is pointing to the back. Insert the extension cable.
- Page 22 en Installation instructions Finishing connecting the appliance Fitting the filter cover Guide the cable through the opening in the side WARNING ‒ Risk of injury! cover. Components inside the appliance may have sharp Insert the side covers and screw them firmly in edges. place.
- Page 23 Installation instructions en Check whether the appliance frame is lying flush. Undo the screws on the top frame assembly using a screwdriver and remove the top frame assembly. Retighten the screws if necessary. Insert the grease filters. To avoid causing damage, do not bend the grease filters.
- Page 24 en Installation instructions Disconnect the cable at the appropriate point. Rotate the fan box in such a way that the air outlet faces forwards. Undo the opposite screws to loosen the fan box. Remove the fan box. Loosen the mounting brackets on the appliance us- ing a screwdriver.
- Page 28 Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG *9001482216* 9001482216 (020711)
