Section 2: Assemble the Base

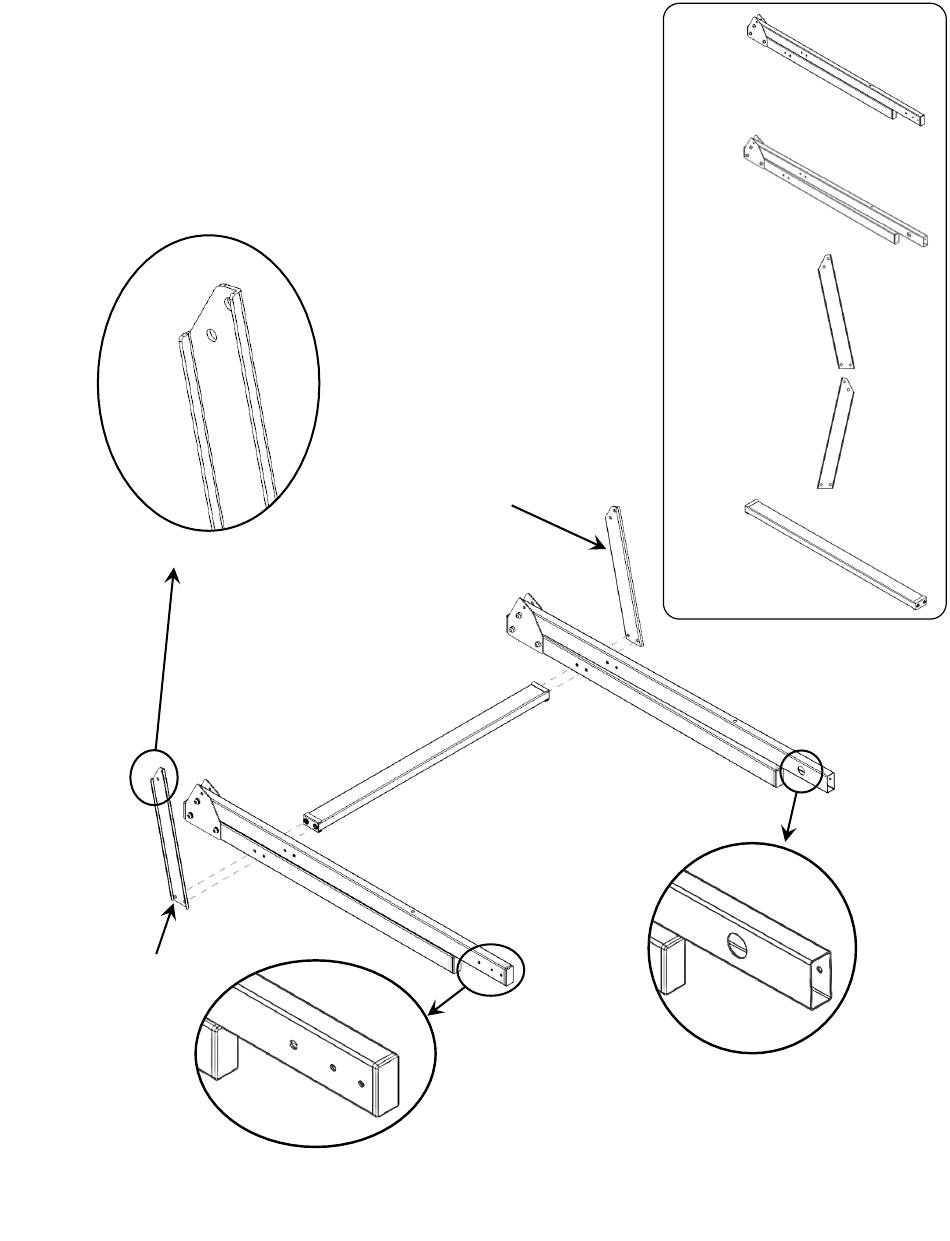

Step 14. Lay out components.
See picture to ensure side supports and support legs are
oriented properly.
Ensure lip of side support faces outward
Left side support (C)
Ensure the 3 smaller holes are
facing OUT on both arm assemblies
Right side support (D)
1 x A
1 x B
1 x C
1 x D
1 x E
Ensure the large, single hole is
facing IN on both arm assemblies
