Summary of Contents for Orava Steameasy 1

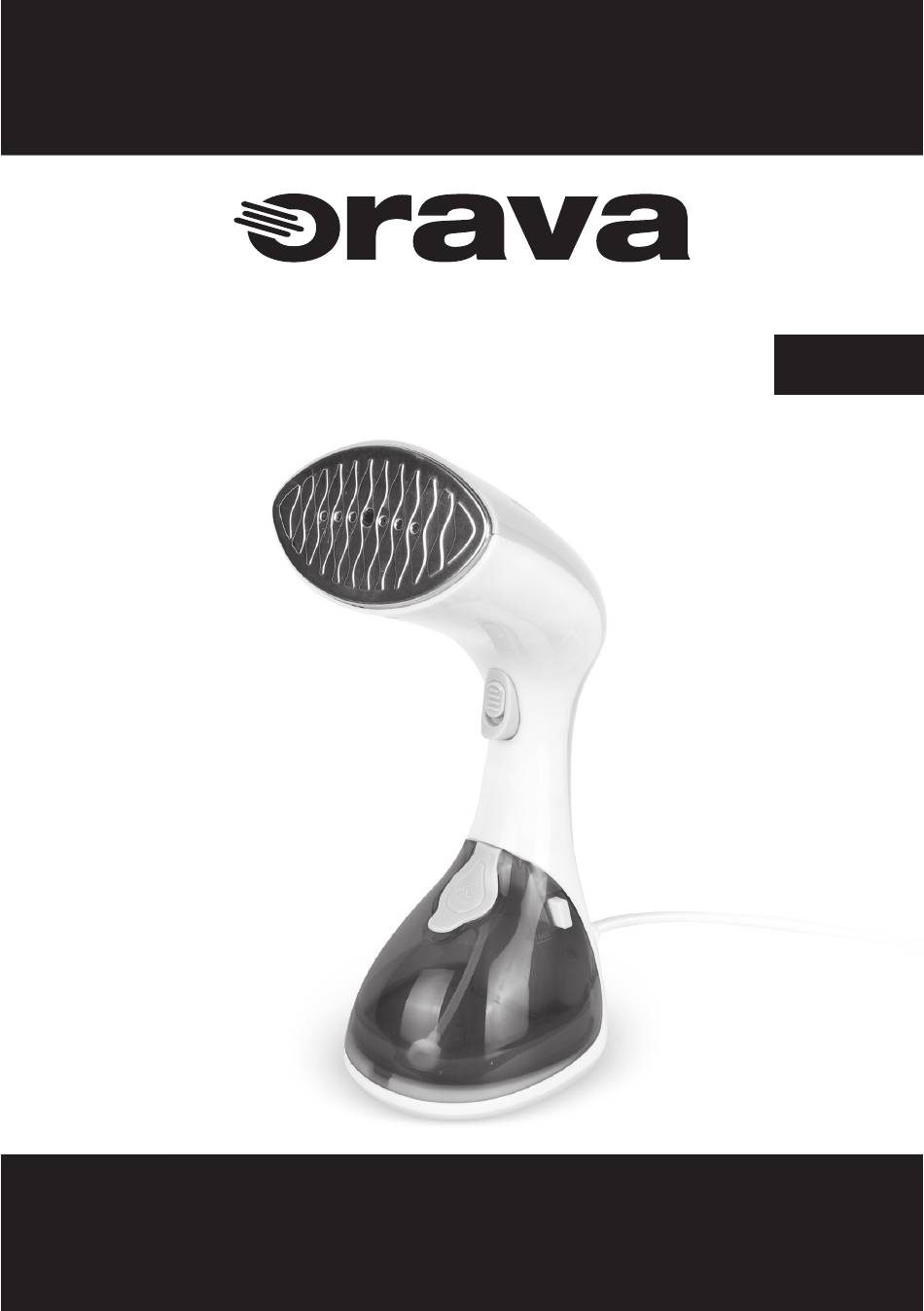

- Page 1 Hand steamer Steameasy 1 Instruction manual Steameasy 1...
- Page 2 ORAVA electrical appliances are manufactured in accordance with the state of the art and recognized safety regulations. Nevertheless, incorrect and unprofessional use or use contrary to the intended purpose may create a risk of injury or endanger the life of the user or a third party, resp.
- Page 3 • The appliance is intended for home and similar indoor use without special focus. • This appliance is intended, in addition to domestic use, for the following uses: - in shops, offices and other similar work environments; - in economic buildings; - in hotels, motels and other residential environments;...
- Page 4 1.3 Electrical safety • Before connecting the appliance to the power supply for the first time, make sure that the voltage on the appliance label corresponds to that of the household electrical outlet. • The electric appliance is designed to power from 1 / N / PE ~ 230V 50 Hz. •...
- Page 5 • Do not bend, crush or otherwise expose the power cord / power cord of the appliance to mechanical stress or external heat sources. Damage to the power cord may result in electric shock. • When the power cord is damaged, disconnect the appliance from the mains and do not use it again.
- Page 6 1.5 Cleaning, maintenance and repairs • Observe the normal user cleaning and maintenance of the appliance in the recommended way. Do not use solvents or harsh cleaners for cleaning. Pollution and visible stains from fingers can be cleaned using detergent specially designed to clean household appliances.
- Page 7 2.Special safety instructions. Read carefully! • The electrical equipment is designed and manufactured in such a way as to allow safe operation and use by unauthorized personnel. In spite of all precautions taken by the manufacturer for safe use, operation and use, there are certain residual risks and potential hazards associated with them.
- Page 8 Inspection/Commissioning • Never use the appliance if it is incomplete, damaged or any part of it has been damaged during use. Have the device repaired by a specialist garage. Risk of serious injury! • Children under 3 years of age must be prevented from accessing the appliance unless they are constantly supervised.
- Page 9 Location/Installation • The machine must be used and stored on a stable surface. • When placing the machine on the storage stand, make sure the surface on which the storage stand is placed is stable. • Always make sure that the area where you want to place the device has sufficient space, stability, and mechanical strength.
- Page 10 • The power outlet and power cord must remain easily accessible to safely unplug the equipment. • Never leave the appliance unattended and freely accessible with an unplugged power cord. Children, incapacitated persons or animals could pull the device away from the power cord. •...
- Page 11 Characteristics The device is equipped with many functions that simplify ironing in household. It has an elegant shape allowing for a comfortable grip, high thermal efficiency, steaming system and so on. • Precise temperature setting The temperature is set very precisely and corresponds to the respective ironed fabrics.
-
Page 12: Description Of Parts
Description of parts 1 Water tank 2 Water tank locking elements Push both locking elements together and remove the water tank. 3 Short-term steam button The button allows you to use steam production in batches. 4 Continuous steam ironing switch The switch allows steam to iron down stubborn wrinkles and folds. -
Page 13: Assembly And Operation
Assembly and operation Before first use • Unpack the appliance and remove all packaging material and remove all protective foils and stickers from the metal steaming surface. • Disconnect the power cord from the mains before inserting or removing the brush handle. - Page 14 Steaming (steam ironing) 1 Connect the power cord to the mains and switch on the appliance. The indicator light will flash and will illuminate permanently when the operating temperature is reached (in approx. 10 seconds). All fabrics marked on the ironing symbol with dots • to • • • can be ironed and brushed with steam: The dots in the device emblem on the garments correspond to the following material:...
- Page 15 • With this steamer, it is not possible to iron very strong and stubborn folds or achieve a sharp, ironed appearance. In this case, we recommend using a conventional iron. • During steam ironing, the fabric absorbs moisture. Allow the clothes to dry completely before storing, e.g.
- Page 16 Steam cleaning This function provides intensive cleaning of soiled fabrics with steam pressure and heat together with brushing. The function works during brushing as long as you hold down the short steam button or set the switch to the continuous steam position. 1 Slide the brush handle onto the metal surface until it clicks.
-
Page 17: Cleaning And Maintenance
Cleaning and maintenance • Disconnect the power cord from the mains. Never wash the device under running water or immerse it in water. • Clean the device and accessories with a soft cloth. Do not use solvents, thinners, alcohol or harsh cleaners for cleaning. •... -
Page 18: Technical Specifications
Technical specifications Power supply: 220 - 240 V ~ 50 - 60 Hz Power consumption: 1 300 W Operating temperature: 55 ° C Water tank capacity: 270 ml Dimensions (W x D x H): 12 x 13.3 x 27.8 cm Weight: 0.85 kg Package contents:... - Page 19 Producer: ORAVA retail 1, a.s. Seberíniho 2 821 03 Bratislava Slovenská republika Importer: ORAVA retail 1, a.s. ORAVA distribution CZ, s.r.o. Seberíniho 2 Ostravská 494 821 03 Bratislava 739 25 Sviadnov Slovenská republika Česká republika INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING Dispose of used packaging material at a municipal waste disposal site.
