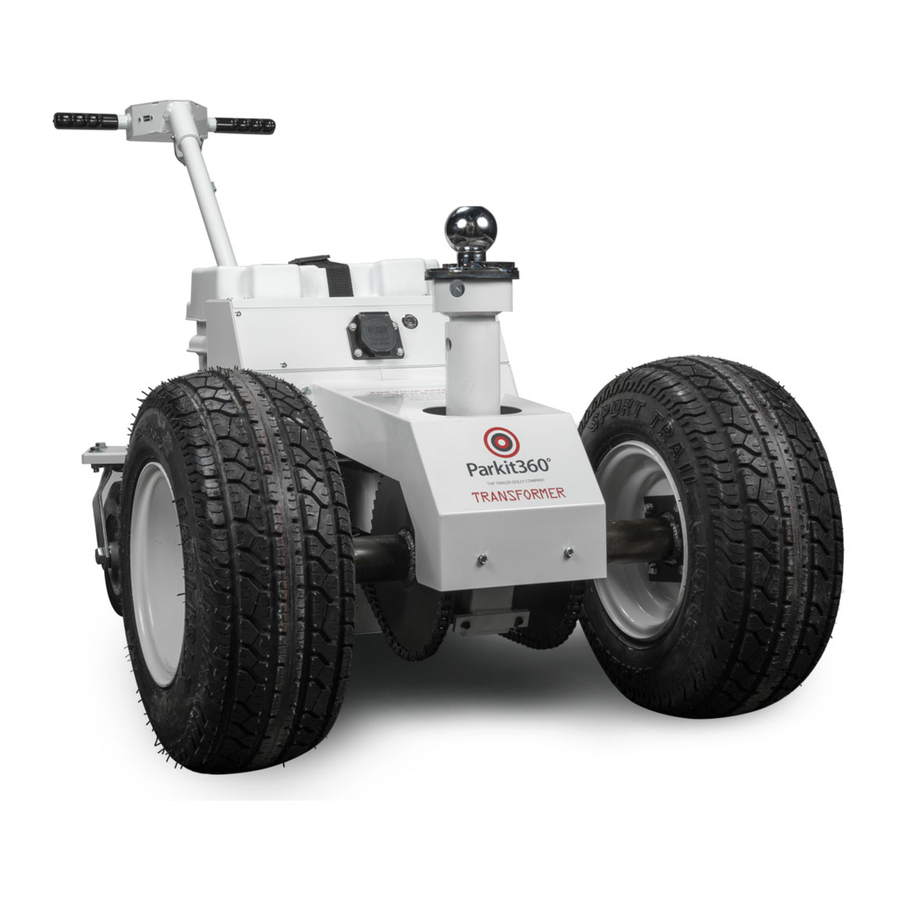

TRANSFORMER 15K
INSTRUCTION MANUAL
VERSION 4.1
READ CAREFULLY
BEFORE OPERATION
IMPROPER USE OF THIS DOLLY CAN
CAUSE DAMAGE TO YOUR TRAILER,
PERSONAL INJURY OR EVEN DEATH.
DANGER
DANGER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRANSFORMER 15K and is the answer not in the manual?

Questions and answers

Related Manuals for PARKIT360 TRANSFORMER 15K

Summary of Contents for PARKIT360 TRANSFORMER 15K

  • Page 1 TRANSFORMER 15K INSTRUCTION MANUAL VERSION 4.1 READ CAREFULLY BEFORE OPERATION IMPROPER USE OF THIS DOLLY CAN CAUSE DAMAGE TO YOUR TRAILER, DANGER DANGER PERSONAL INJURY OR EVEN DEATH.

  • Page 2: Package Includes

    IN THE BOX WIRELESS WIRELESS CONTROLLER CONTROLLER TRANSFORMER PACKAGES INCLUDE: Transformer Dolly Handle Shaft with Controller Mount Two 12V U1 Batteries Wireless Controller & USB C Cable Charger Cable FIFTH WHEEL ADAPTER PACKAGE INCLUDES: Kingpin Adapter U Locking Pin with D-Clip QUESTIONS? 1-888-926-5517...

  • Page 3: Setup And Installation

    UNIVERSAL STABILIZER BARS THIS ALL-IN-ONE KIT INCLUDES: Mounting Ring Tube 6 D-Pins with Through Bolt and Nut (3/8”) (1/2” x 5“) 2 Inner Tubes (1.25” x 1.25“ x 32”) 2 Inner Pivot Tubes (1.25” x 1.25“ x 3.5”) 2 Outer Tubes (1.5” x 1.5“ x 32”) 2 Outer Pivot Tubes (1.50"...

  • Page 4: Power On/Off

    ASSEMBLY HANDLE Insert the Handle into the Dolly. Secure with D-Clip. POWER ON/OFF PULL OUT TURN ON Enables Battery Power. Pull OUT on the Battery Disconnect. Press and hold the Power Button until the light illuminates. PRESS & HOLD To turn ON or OFF. TURN OFF Press and hold the Power Button until the light turns off.
  • Page 5 FEATURES SMART BRAKE 7-Way Power Plug that Controls the Trailer’s RECEIVER TUBE Electric or Surge Brakes. Connect to the Trailer with either the (Page 5) Kingpin or Gooseneck Adapter. INTERNAL BATTERY CHARGER Charges both on-board 12V U1 Batteries. Digital display shows charging voltage and amperage.

  • Page 6: Module Features

    MODULE FEATURES CIRCUIT BREAKERS POWER ON/OFF Provides overcurrent protection for the Press and Hold for 2 seconds Motors, Brakes and Control System. to turn ON or OFF. If a breaker trips, the Reset Button will extend up to 1/2” from the panel. VOLT METER Allow 15 seconds for the system to cool down, then press Reset.

  • Page 7: Wireless Controller

    WIRELESS CONTROLLER Operating from the User’s perspective: REVERSE FORWARD Behind the Dolly, facing the Trailer. (TOWARDS USER) (BACK UP TRAILER) HIGH SPEED LED INDICATOR LIGHT Steady - Press LOW to Activate In Use Slow Blink - During Button Press Battery Low Fast Blink - Charge ASAP! Sleep Mode Off - Enters this mode after...

  • Page 8: Battery Charging

    12V BATTERY CHARGING PREPARING THE DOLLY PULL OUT POWER OFF PLUG IN Ensures Batteries are connected. Press and hold for Plug the Charger Cable 2 seconds to turn the Monitor charger display into the Dolly, then into above charger plug. Transformer Dolly OFF.
  • Page 9 FREEWHEEL KNOBS: SWITCHING GEAR FREEWHEEL/SPOOL NEUTRAL. MOVE THE DOLLY WITHOUT POWER WHILE IT IS NOT UNDER LOAD. Turn both of the Transformer’s motor knobs in the direction of the Freespool arrow until it stops. Freely move the Dolly to and from the trailer in this mode. DRIVE ENGAGE THE MOTORS TO CONNECT TO...
  • Page 10 DANGER DO NOT EXCEED DOLLY’S MAX. WEIGHT CAPACITY CAN CAUSE DAMAGE TO YOUR TRAILER, SERIOUS INJURY, OR EVEN DEATH. FIFTH WHEEL / KINGPIN GOOSENECK UP TO 15,000 LBS GROSS UP TO 12,000 LBS GROSS (3,000 LBS TONGUE) (1,500 LBS TONGUE) INSTALL UNIVERSAL STABILIZER BARS BEFORE MOVING TRAILER...
  • Page 11 CONNECTING TO YOUR TRAILER: FIFTH WHEEL ADAPTER With both motors in Freewheel Mode, move the Dolly, Accessories and required Tools to the Trailer: Kingpin Adapter, Stabilizer Bar Kit and Hardware, 3/4" Socket, Wrench and Impact Drill with 25/64” bit. INSTALL UNIVERSAL STABILIZER BARS BEFORE MOVING TRAILER! (SEE PAGE 13-16) KINGPIN ADAPTER INSTALLATION...
  • Page 12 ” ” KINGPIN ADAPTER MEASUREMENTS FLUSH Kingpin measurements should be between 48” to 52” STRAIGHT from the Ground to the Bottom of the Kingpin Box. LEVEL If your measurements are not within this range, contact us before operating this machine! 1/2”...
  • Page 13 ENGAGE MOTORS INTO DRIVE TURN ON THE DOLLY Press and Hold the Power Button to turn on the Dolly. Connect the Trailer’s 7 Pin Brake Cable to the Smart Brake Plug. FREEWHEEL KNOBS Ensure the Dolly is in parking position and ready to connect to the Hitch, then Engage both Motors.
  • Page 14 KINGPIN BOX STABILIZER BARS INSTALLATION VIDEO YOUTUBE.COM/PARKIT360 OUTER PIVOT TUBES Install both 1 1/2” Outer Pivot Tubes to the wings of the Mounting Ring Tube. Thread 2 1/2" x 1/2” bolt and lock washer into end of each wing. Turn the pivot tubes towards your trailer in preparation for the Outer and Inner tubes.
  • Page 15 KINGPIN BOX STABILIZER BARS OUTER & INNER TUBES Slide the Inner Tubes into the Outer Pivot Tubes at the base of the Kingpin Adapter. Slide the Outer Tubes onto the Inner Trailer Mount Pivot Tubes on the Kingpin Box and secure them with the supplied D-Pins.
  • Page 16 LANDING LEG STABILIZER BARS INSTALLATION VIDEO YOUTUBE.COM/PARKIT360 INNER PIVOT TUBES Install both 1 1/4” Inner Pivot Tubes to the bottom of the Mounting Ring Tube with a 2 1/2” bolt, lock washer, and flat washer. MOUNTING RING TUBE Slide onto the Kingpin Adapter with pivot tubes down.
  • Page 17 LANDING LEG STABILIZER BARS CONNECT TO TRAILER LEGS For safety while parking, retract the Trailer's Landing Legs until the feet are at least 2" off of the ground. Choose a connection point on the trailer's Landing Legs that allows the Stabilizer Bars to sit as close to level as possible.

  • Page 18: Storage And Maintenance

    PARKING YOUR TRAILER Use the Forward and Reverse buttons on the Wireless Controller to steer into tight spaces that are nearly impossible for vehicles. DISCONNECTING THE HITCH Chock Trailer Wheels to prevent a runaway trailer. Raise the Trailer to withdraw the Adapter. The Adapter can be removed or left on the hitch for later use.

  • Page 19: Alternate Connections

    Attach the Telescopic Adapter to the Y section of the trailer frame. Lower the Telescoping Pipe into the Dolly. Slide the Adapter’s locking pin into place. CALL TOLL-FREE: PARKIT360 OFFICE HOURS 1-888-926-5517 8AM-4PM EST (WEEKDAYS) Ext. 1 - Sales & Service sales@parkit360.com support@parkit360.com...
  • Page 20 2 -Year Warranty, whichever is later. 30 DAY RETURN POLICY If a material defect is found or if the Parkit360 has failed to perform to your expectations, return it within 30 days of the date of sale for a refund, less the flat shipping cost of $500 USD and $200 restocking fee.
  • Page 21 DANGER DO NOT EXCEED DOLLY’S MAX. WEIGHT CAPACITY DO NOT OPERATE ON MORE THAN A 4% GRADE PARKIT360 INC. 130 Industrial Ave, Unit 600 Carleton Place, ON K7C 3T2 Canada 1-888-926-5517 or PARKIT360.ca...
