F A L L 2 0 1 8

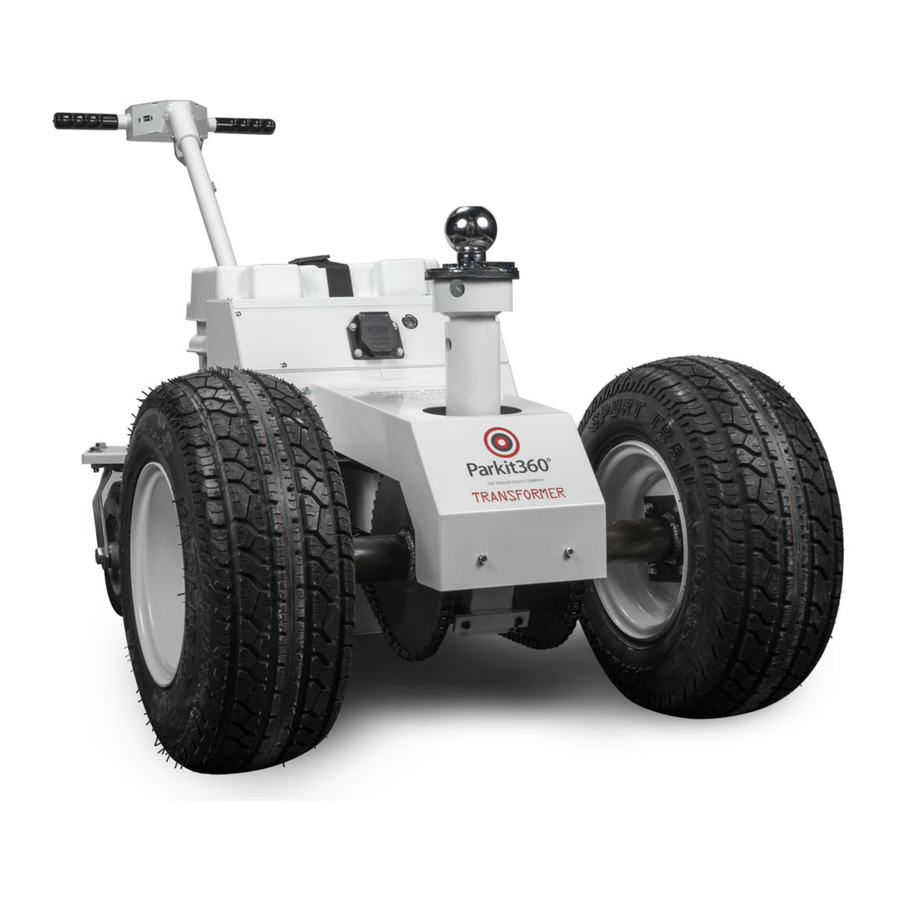

TRANSFORMER 15K
V E R S I O N 3 . 4
I N S T R U C T I O N M A N U A L / U S E R G U I D E
CALL TOLL-FREE:
1-888-926-5517
Ext. 1 - Sales
Ext. 2 - Administration
Ext. 4 - Technical Support
P A R K I T 3 6 0 °
OFFICE HOURS (WEEKDAYS)
8AM-6PM EST
sales@parkit360.com
admin@parkit360.com
support@parkit360.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRANSFORMER 15K and is the answer not in the manual?

Questions and answers

Related Manuals for PARKIT360 TRANSFORMER 15K

Summary of Contents for PARKIT360 TRANSFORMER 15K

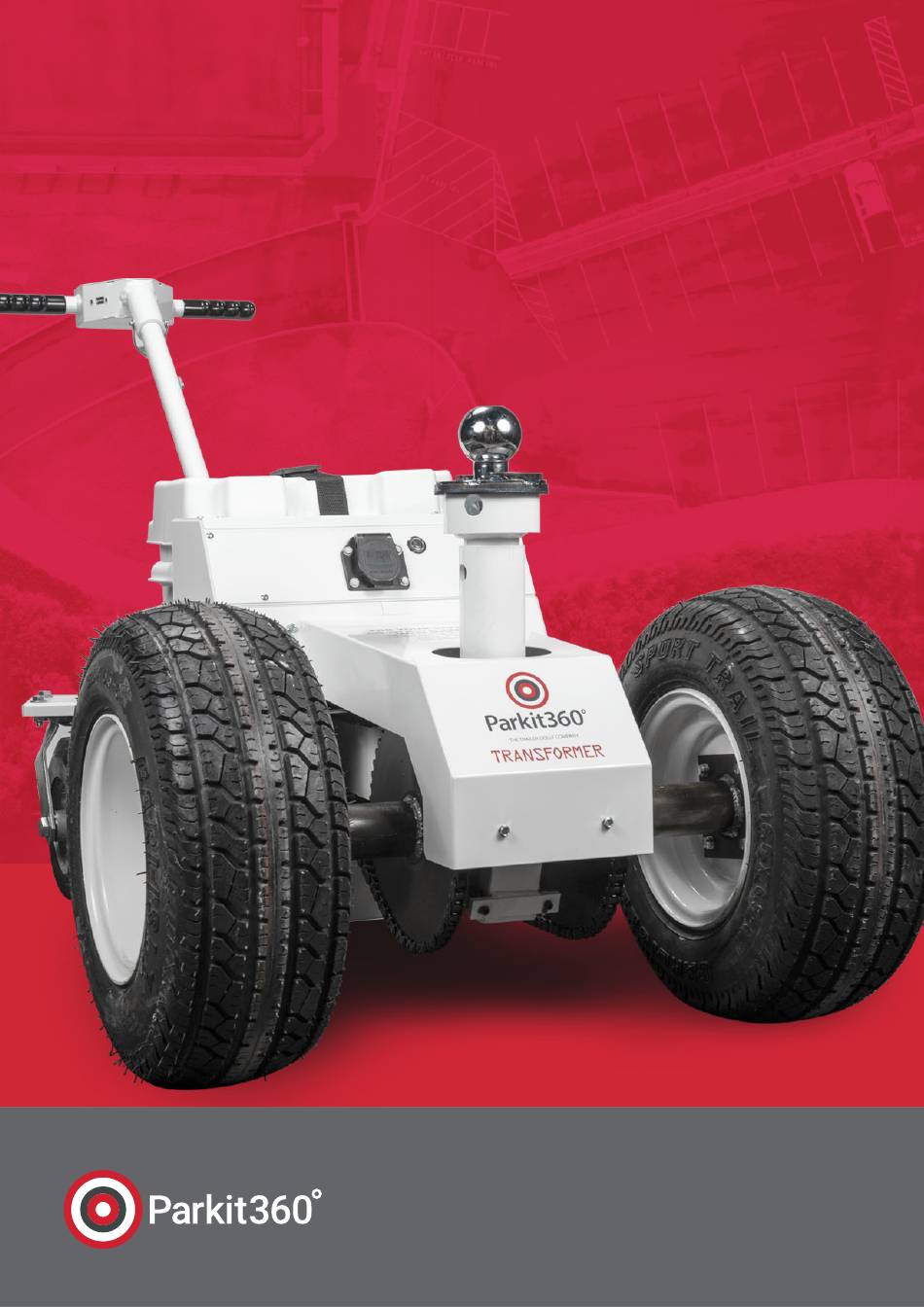

  • Page 1 V E R S I O N 3 . 4 P A R K I T 3 6 0 ° TRANSFORMER 15K I N S T R U C T I O N M A N U A L / U S E R G U I D E...
  • Page 2 P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L IN THE BOX ALL TRANSFORMER PACKAGES INCLUDE: Transformer Unit Body Two 6.5”...

  • Page 3: Parts List

    P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L PARTS LIST TR A NS F OR M E R F RA M E MO T OR (1 .5 H P) C H AI N S HI E L D MO T OR COV ER...
  • Page 4 P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L ASSEMBLY PLEASE FOLLOW THESE STEPS TO ASSEMBLE YOUR PARKIT360 TRANSFORMER. Install both 6.5” Wide Tires using the supplied 1/2” bolts. If you have a torque wrench, set it to 80 ft-lbf.
  • Page 5 P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L ASSEMBLY CONT’D: WIRELESS CONTROLLER SETUP CONNECT CONTROLLER WIRES & FULLY CHARGE BEFORE FIRST USE. DUE TO SHIPPING REGULATIONS, THE BATTERY INSIDE OF THE CONTROLLER IS NOT CONNECTED.

  • Page 6: Operation

    P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L OPERATION YOUR TRANSFORMER HAS 2 MOTORS. LEFT EACH MOTOR HAS TWO DRIVE MODES: RIGHT FREEWHEEL MODE SWITCHING GEAR...

  • Page 7: Wireless Controller

    REVERSE FORWARD user’s point of view from behind the unit. (TOWARDS USER) (BACK UP TRAILER) The Parkit360 Transformer wheels are controlled individually using two, three-position switches. For both switches, the middle rocker position is off, or neutral. The switches may be operated individually, or together.

  • Page 8: Electronics Module

    P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L OPERATION CONT’D: ELECTRONICS MODULE FRONT PLATE RESET / MOTOR L POWER ON/OFF MOTOR R CIRCUITS / TRAILER BRAKES...

  • Page 9: Safety Instructions

    P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L QUICK SET-UP GUIDE Switch both motors into Freewheel Mode and move the POSITION Transformer to the trailer.
  • Page 10 P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L CONNECTING TO YOUR TRAILER: BALL MOUNT ADAPTER BALL MOUNT TUTORIAL VIDEO: HTTPS://YOUTU.BE/NZ-_WKINBZS Thread the desired Hitch Ball into the Ball Mount.
  • Page 11 Turn the Ball Mount Counter Clockwise until the gap between the Ball Mount Collar and Trailer Tongue closes. The top edge of the Ball Mount and the Trailer Tongue should be flush, with no gap. PROPER CONNECTION: The connection should be tight FLUSH, FLAT, NO GAP without any ball pivot.
  • Page 12 P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L ADAPTER INSTALLATION: KINGPIN: WITH STABILIZER BARS KINGPIN TUTORIAL VIDEO: HTTPS://YOUTU.BE/OOSCCLZJMMA Attach the Kingpin Adapter to the trailers’...
  • Page 13 With the 1 ½ inch bolt, flat washer and lock washer, thread the Coupling Nut into the outer portion of the Kingpin Box. You may have to remove one of the existing bolts from your Kingpin Box. Tighten the Coupling Nut as much as possible for a secure connection.
  • Page 14 P A R K I T 3 6 0 ° / T R A N S F O R M E R 1 5 K M A N U A L CONNECTING TO YOUR TRAILER: ALTERNATE METHODS THRUST WASHER - FOR BALL MOUNT ADAPTER Place the Thrust Washer on top of the Ball Mount Collar, with the open section facing your trailer.

  • Page 15: Safety Features

    TORSION LOOP Slide the Torsion Loop onto the SAFETY STRAP CONNECTOR Unit’s Receiver Tube with the small FOR THE TRANSFORMER 15K loop facing up. Point this towards the center of your trailer. REINFORCES BALL MOUNT Install the Ball Mount to the Trailer AND PREVENTS KICK BACK.
  • Page 16 WHAT DOES A PROPER CONNECTION LOOK LIKE? Please see Part 3 of the Ball Mount section on Page 10. CONTACT US PARKIT360 INC. 1-888-926-5517 OFFICE HOURS 130 Industrial Ave - Unit 600 Ext. 1 - Sales Weekdays: 8am - 6pm EST Carleton Place, Ontario Ext.

  • Page 17: Warranty

    30 DAY RETURN POLICY If a material defect is found or if the Parkit360 has failed to perform to your expectations, return it within 30 days of the date of sale for a refund, less shipping expenses and 20% restocking fee, provided that: •...
  • Page 18 Warranty Claims. If a P360 Product fails to perform during the Warranty Period, Reseller must notify PARKIT360 in writing with full details of the defect or fault encountered with the P360 Product. PARKIT360 will provide technical assistance to Reseller to see if the issue can be resolved remotely.
