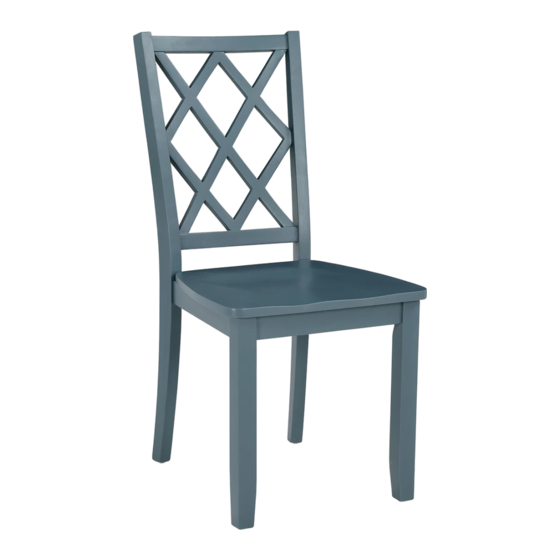

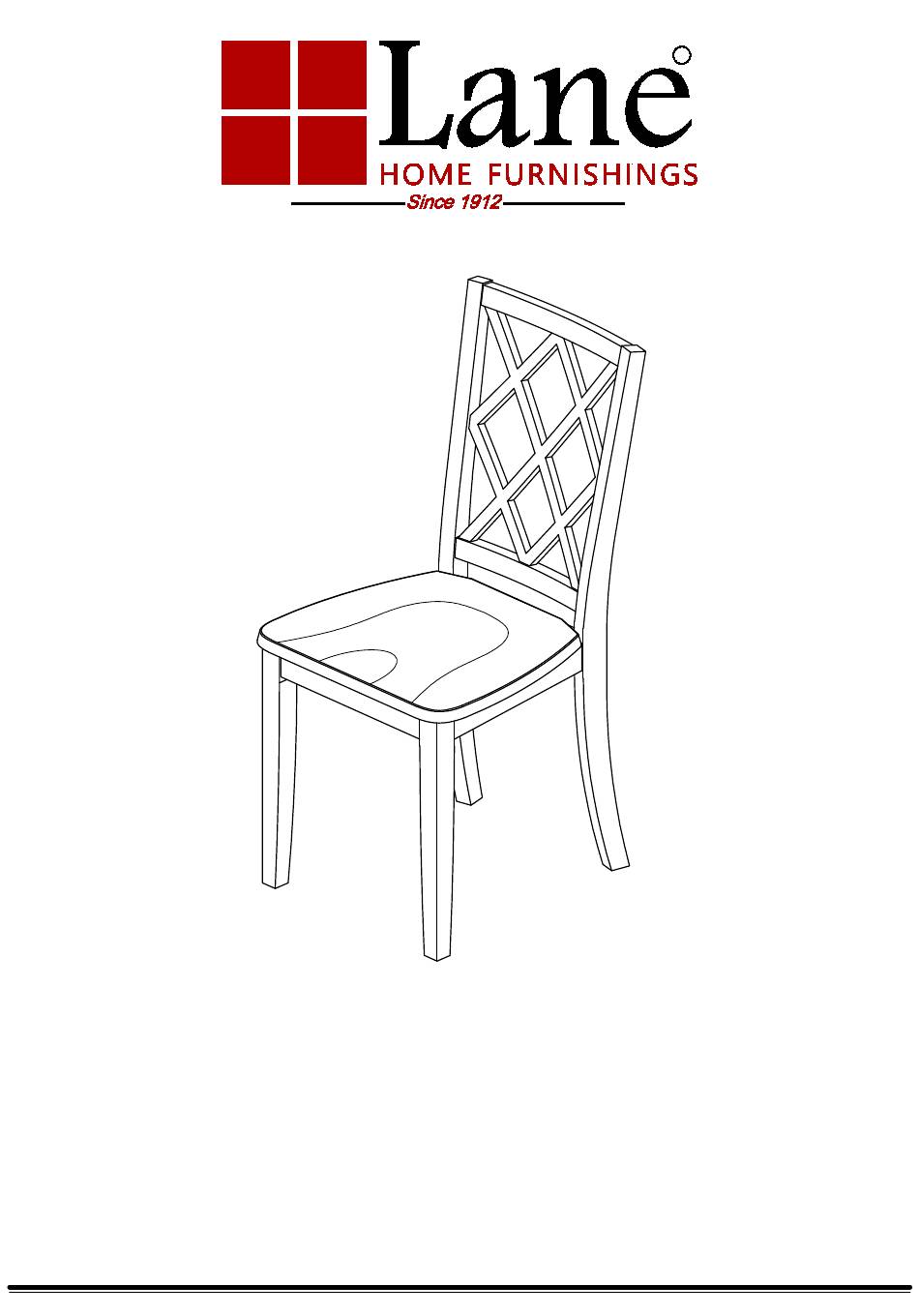

- Page 1 ASSEMBLY INSTRUCTIONS ITEM # : 60581-69-01 KONA DINING CHAIR WHITE 1/CTN ITEM # : 60581-69-03 KONA DINING CHAIR GRYSTNE 1/CTN ITEM # : 60581-69-05 KONA DINING CHAIR GRPHITE 1/CTN ITEM # : 60581-69-06 KONA DINING CHAIR MINT 1/CTN Page 1 of 4...
- Page 2 ITEM # 60581-69 KONA DINING CHAIR 60581-69 PARTS & HARDWARE LIST CHAIR BACK x 1 SEAT x 1 FRONT LEG x 2 SHORT BOLT x 2 MEDIUM BOLT x 4 LONG BOLT x 4 (Ø5/16'' *38mm) (Ø5/16'' *50mm) (Ø5/16'' *75mm) SPRING WASHER x 10 FLAT WASHER x 10 ALLEN KEY x 1...
- Page 3 ITEM # 60581-69 KONA DINING CHAIR H ARDWARE BLISTER PACK IS STORED ON THE TOP OF THE CHAIR BACK. HARDWARE PACK Page 3 of 4 MADE IN VIETNAM...
- Page 4 ITEM # 60581-69 KONA DINING CHAIR STEP 1 (x1) STEP 2 (x1) CHAIR ASSEMBLY COMPLETED Page 4 of 4 MADE IN VIETNAM...
