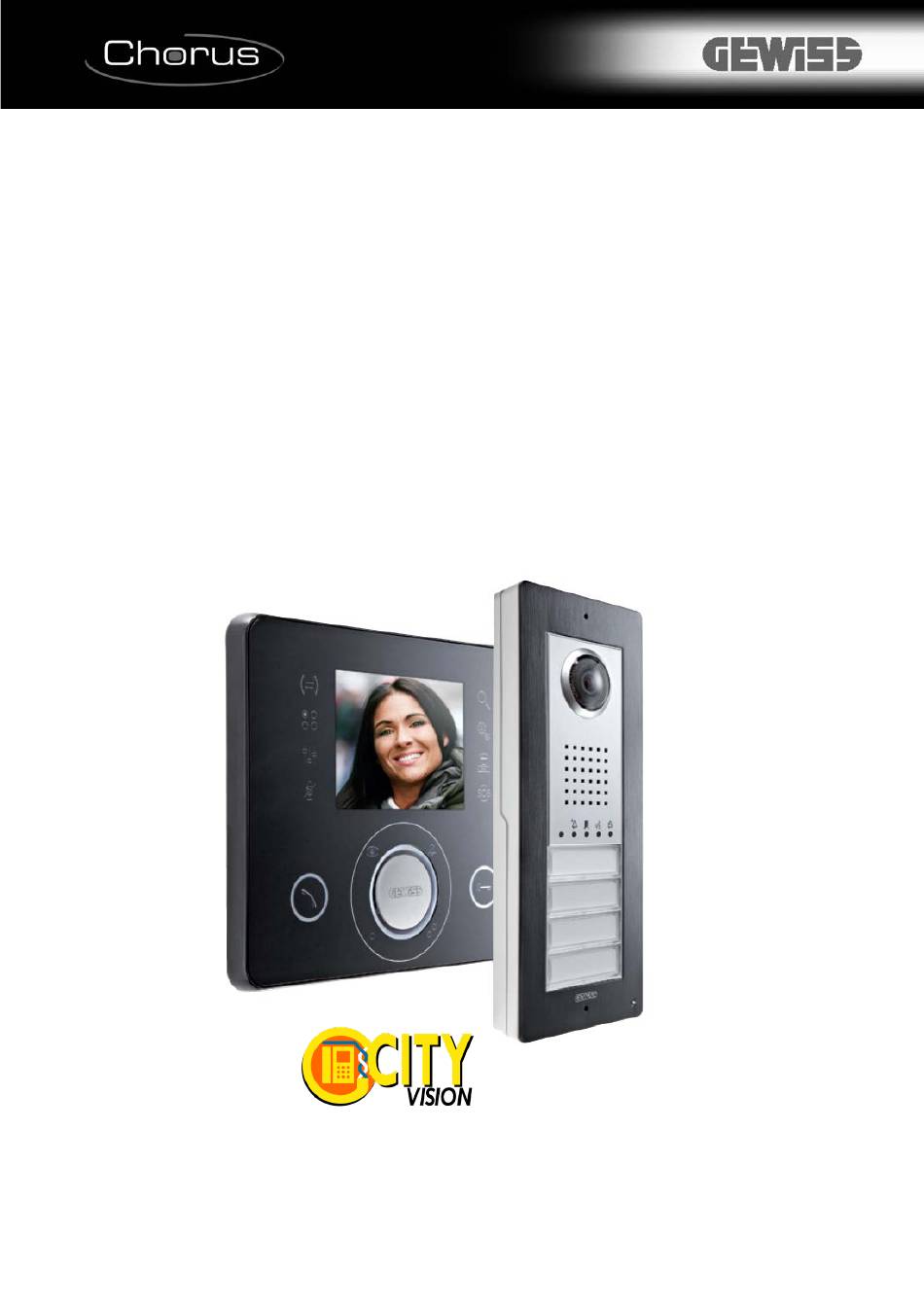

- Page 1 City Vision range CITY VISION - 2-WIRE VIDEO ENTRYPHONE SYSTEM WITH IP/LAN EXTENSION Video Entryphone System Technical Manual Chorus City Vision - Technical System Manual Page 1...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ____________________________________________________________________ 4 THE SYSTEM _______________________________________________________________________ 5 2-WIRE SYSTEMS WITH 1 LEVEL BACKBONE ___________________________________________________ 7 2-WIRE SYSTEMS WITH 2 LEVEL BACKBONE ___________________________________________________ 8 2-WIRE SYSTEMS WITH IP/LAN EXTENSION __________________________________________________ 10 PRODUCT SHEETS _________________________________________________________________ 12 ADDITIONAL POWER SUPPLIES: supply only power (no signals) __________________________________ 12 SYSTEM POWER SUPPLIES: supply BUS and power ____________________________________________ 13 GW19301: for 2-wire systems _____________________________________________________________________ 13 GW19351: for IP extension system _________________________________________________________________ 14... - Page 3 ABSORPTION _____________________________________________________________________ 35 Current supplied by City Vision power supplies _______________________________________________ 35 Current absorbed in a 2-wire upright _______________________________________________________ 35 Current absorbed in the backbone for 2-wire system devices ___________________________________ 36 Current absorbed in the backbone for IP extension system devices ______________________________ 37 EXAMPLES _______________________________________________________________________ 38 Standard type of system: single family with AESIS outdoor position - Kit GW19401WH/BK ___________ 38 Standard type of system: single family with KARALIS outdoor position - Kit GW19410WH/BK _________ 39...
-
Page 4: Introduction
INTRODUCTION The purpose of this manual is to provide the GEWISS sales force with basic technical knowledge about the City Vision video entryphone system. The system manual is structured as follows: • The first part describing the system and devices •... -
Page 5: The System
THE SYSTEM The system is based on three basic elements: the indoor positions, the power supplies/enclosures and the outdoor positions. It uses 2-wire technology with the option of extending the system using IP technology, which makes it possible to use dedicated LAN infrastructures or LAN infrastructures shared with other systems. - Page 6 Main functions of the system: Privacy Landing call function from an indoor position Door opener from an indoor position Door opener from an outdoor position Video control Auxiliary commands Intercom: o between indoor positions in the same apartment o between indoor positions in different apartments Video answering machine Call notice during an intercom conversation Call transfer...
-
Page 7: 2-Wire Systems With 1 Level Backbone
2-WIRE SYSTEMS WITH 1 LEVEL BACKBONE This type of system makes it possible to implement video entryphone systems for small sized systems: • Applications: single-family homes or small sized buildings, with a single building or block, the building can also have multiple indoor staircases (uprights). •... -
Page 8: 2-Wire Systems With 2 Level Backbone
Up to 8 videocameras per video control Intercom inside the same apartment or between apartments Up to 2 porter's desks (with GW19202 WH/BK in the Gewiss 2014 catalogue) Up to 4 videocameras for video control, visible in the single building ... - Page 9 The following figure shows an example with 5 blocks, each with a single staircase. Main connections: in yellow, the connection of the 2-wire uprights in red the second level backbone connections have 4 wires in violet the first level backbone connections have 8 wires ...
-
Page 10: 2-Wire Systems With Ip/Lan Extension
2-WIRE SYSTEMS WITH IP/LAN EXTENSION This type of system makes it possible to implement video entryphone systems large and very extended systems: • Applications: o large sized systems for residential complexes with multiple buildings or blocks where the connection between buildings is via the LAN network; o Small sized systems (small number of residential units), but where the distances are considerable, e.g.: individual family residences where there is a large distance between the entry gate and the home. - Page 11 The following figure shows the same example as the previous paragraph, with 5 blocks and a staircase for each block. But in this case, the individual blocks are connected together via IP/LAN; one of the advantages in comparison to the previous example is that the use of LAN makes it possible to reach large distances: 100 metres with cable (extendable with switches and similar devices) and kilometres with optic fibre.
-
Page 12: Product Sheets
PRODUCT SHEETS The purpose of this chapter is to clarify the basic information about the main products. ADDITIONAL POWER SUPPLIES: supply only power (no signals) GW19302: 18Vdc - 0.5A in continuous operation and 1A max for one minute No. DIN modules: 4 GW19303: 17.5Vdc - 1.7A in continuous operation No. -
Page 13: System Power Supplies: Supply Bus And Power
SYSTEM POWER SUPPLIES: supply BUS and power GW19301: for 2-wire systems GW19301 - System power supply for 2-wire systems Central unit that manages the operation of the video entryphone upright, to which the indoor positions (upright) and the outdoor positions (point-point) are connected, the unit not only supplies power for the devices, it also sorts the audio and video signal. -
Page 14: Gw19351: For Ip Extension System
GW19351: for IP extension system GW19351 - System power supply for IP extension systems Central unit that manages the operation of the video entryphone upright, to which the indoor positions (upright) and the outdoor positions (point-point) are connected, the unit not only supplies power for the devices, it also sorts the audio and video signal. -
Page 15: Outdoor Positions
OUTDOOR POSITIONS AESIS GW19001 - Two-wire outdoor video entryphone position GW19006 - Two-wire outdoor entryphone position Outdoor positions with grey technopolymer body and stainless steel finish, available only for 2-wire systems. The outdoor position can be audio/video or audio only and can house from 1 to 4 call push-buttons with blue button key backlighting. - Page 16 GW19101: Flush-mounting box GW19102: Flush-mounting frame GW19103: Rainproof roof (not suitable for flush-mounting assembly) GW19131: single push-button (makes 1 call) GW19132: Dual-height push- button (makes 1 call) GW19133: Double push-button (makes 2 calls) Chorus City Vision - Technical System Manual Page 16...
-
Page 17: Karalis
KARALIS GW19011TG - Two-wire outdoor video entryphone position - grey GW19011ME - Two-wire outdoor video entryphone position - metallic GW19016TG - Two-wire outdoor entryphone position - grey GW19016ME -Two-wire outdoor entryphone position - metallic GW19051TG - IP extension outdoor video entryphone position - grey GW19051ME - IP extension outdoor video entryphone position - metallic... - Page 18 820mA maximum IP extension system for entryphone version: 100mA in stand by 600mA maximum IP extension system for audio/video version: 100mA in stand by 700mA maximum Absorption from the backbone line per additional push-button panel module: ...
- Page 19 GW19113: Rainproof roof (not suitable for flush-mounting assembly) GW19091: additional outdoor push-button panel (installation: max 10) GW19131: single push-button (makes 1 call) GW19132: dual-height push- button (makes 1 call) GW19133: double push-button (makes 2 calls) GW19134TG: single grey cap GW19134ME: single metallic cap GW19135TG: dual-height grey GW19135ME: dual-height metallic cap...
- Page 20 GW19136: information module (with name card) GW19141: RFID reader for access control GW19137TG: grey keyboard for access control GW19137ME: metallic keyboard for access control GW19142: transponder card for access control GW19143: transponder key for access control Chorus City Vision - Technical System Manual Page 20...
-
Page 21: Antas
ANTAS GW19061 - Outdoor video entryphone position with electronic index Outdoor position equipped with LCD graphic display, 4 button keys for navigation, alphanumerical keyboard, integrated RFID reader module for proximity keys. The outdoor position is equipped with volume adjustment for the microphone and speaker, electro-lock activation time, output for the electro-lock and for activation of the outdoor telecameras. - Page 22 GW19161: flush-mounting box GW19162: surface-mounting box with roof GW19163: rainproof roof (not suitable for surface-mounting assembly) GW19142: transponder card for access control GW19143: transponder key for access control Chorus City Vision - Technical System Manual Page 22...
-
Page 23: Indoor Positions
INDOOR POSITIONS: NORA GW19236 - 2-wire indoor entryphone position with handset Indoor positions equipped with push-buttons for door opening and one auxiliary function. Surface-mounting installation only. To fix it, use flush-mounting boxes - round ø 60mm (e.g.: GW24232), square (e.g: GW24231), rectangular (e.g: GW24403) or fix directly on the wall with the aid of wall plugs. -
Page 24: Velia
VELIA GW19211WH – 2-wire indoor video entryphone position with speakerphone GW19211BK - 2-wire indoor video entryphone position with speakerphone GW19216WH – 2-wire indoor entryphone position with speakerphone GW19216BK - 2-wire indoor entryphone position with speakerphone Indoor positions equipped with push-buttons with blue LED backlighting for activating/deactivating the communication. Surface-mounting installation only. -
Page 25: Sena
SENA GW19221WH – 2-wire indoor video entryphone position with speakerphone GW19221BK - 2-wire indoor video entryphone position with speakerphone Indoor positions equipped with touch push-buttons with blue LED backlighting for activating/deactivating the communication Surface-mounting installation with support GW19223WH/BK or flush-mounting installation with box GW19224. HARACTERISTICS AND FUNCTIONS Auxiliary functions 9 of which 2 with direct soft-touch commands and 7 commands from the OSD menu. -
Page 26: Naxos
1 and 2, door opener command. The KNX only functions include: ON/OFF commands, roller shutters, dimmer, temperature adjustment commands, timed thermostat function (in combination with a KNX temperature sensor), scenes, timers, logics, load control and Gewiss burglar alarm system management. OMPATIBILITY 2-wire system... -
Page 27: Master Ice
MASTER ICE GW12015CB - 15’’ KNX panel with video entryphone functions with speakerphone GW12015CN - 15’’ KNX panel with video entryphone functions with speakerphone GW12010CB - 10’’ KNX panel with video entryphone functions with speakerphone GW12010CN - 10’’ KNX panel with video entryphone functions with speakerphone Colour TFT touch screen control panel in 4:3 format used for KNX supervision and includes the functions of the City Vision indoor video entryphone position in a IP/LAN system, with VoIP server GW19357. -
Page 28: System Devices: To Be Connected With 2-Wire Uprights On The Bus Branches
SYSTEM DEVICES: to be connected with 2-wire uprights on the BUS branches GW19306: 2-wire signal distributor GW19306 - Video distributor Device used in the upright for distributing signals in the various apartments and a maximum of 10 can be installed in cascade, to not lose more than 26db, after that the signal must be amplified with a GW19311;... -
Page 29: Gw19307: 2-Wire Amplified Signal Distributor
GW19307: 2-wire amplified signal distributor GW19307 - Video amplifier Device used to divert a 2-wire upright into 2 or more distinct uprights to serve 2 or more residential blocks. OMPATIBILITY 2-wire system IP ext. system Not supported IP/LAN ext. system Not supported ECHNICAL DATA Dimensions no. -
Page 30: Devices For Accessory Functions: To Be Connected On 2-Wire Bus Branches
DEVICES FOR ACCESSORY FUNCTIONS: to be connected on 2-wire BUS branches GW19308: intercom module GW19308 - Intercom module Device that makes it possible to implement the intercom function between the indoor positions connected downstream of it. HARACTERISTICS AND FUNCTIONS Max indoor positions in intercom communication at the same time Max indoor positions calling... -
Page 31: Devices For Accessory Functions: To Be Connected On The 2-Wire Backbones
DEVICES FOR ACCESSORY FUNCTIONS: to be connected on the 2-wire backbones GW19309: cyclic TVCC selector to connect to GW19301 GW19309 - Cyclic TVCC selector Device for connecting supplementary PAL/NTSC videocameras to the system. Equipped with 4 inputs for the video signal from the B/W or colour telecameras (PAL/NTSC standard); each telecamera. must be powered autonomously. -
Page 32: Devices For Accessory Functions To Be Connected On The Ip Extension Backbone
DEVICES FOR ACCESSORY FUNCTIONS to be connected on the IP extension backbone GW19359: cyclic TVCC selector to connect to GW19351 GW19359 - Cyclic TVCC selector Device for connecting supplementary PAL/NTSC videocameras to the system. Equipped with 4 inputs for the video signal from the B/W or colour telecameras (PAL/NTSC standard); each telecamera. must be powered autonomously. -
Page 33: Devices For Extending The System On Ip/Lan
DEVICES FOR EXTENDING THE SYSTEM ON IP/LAN: GW19356: LAN network interface GW19356 - LAN network interface Device that permits extending the video entryphone system to 2-wires on the LAN network. Equipped with 2 Ethernet ports 10/100 Mb, 1 connector for connecting to the power supply GW19351 and one input for managing a max of 1 outdoor position. -
Page 34: Cables
GW19396: 500 m of three 0.28 mm2 twisted duplex cable and two 1.5 mm2 section wires SOFTWARE: GW19373: USB key containing programming software for Windows 8 systems COST ESTIMATE SOFTWARE: can be downloaded free of charge from the Gewiss site Chorus City Vision - Technical System Manual Page 34... -
Page 35: Absorption
ABSORPTION This chapter summarises the device absorption with a backbone and an upright connection. Current supplied by City Vision power supplies The following table shows the current supplied by different power supplies in the catalogue. Current supplied Article Rated current Peak current 0.6A - in the backbone 1.1A - in the backbone for 15’’... -
Page 36: Current Absorbed In The Backbone For 2-Wire System Devices
Current absorbed in the backbone for 2-wire system devices The following table shows the current absorbed by different devices in the catalogue. Absorbed current 2-wire item Stand-by During a call In electro-lock cmd GW19016 - Karalis audio 130mA 130mA 630mA GW19011 - Karalis video 130mA 320mA... -
Page 37: Current Absorbed In The Backbone For Ip Extension System Devices
Current absorbed in the backbone for IP extension system devices The following table shows the current absorbed by different devices in the catalogue. Absorbed current IP extension item Stand-by During a call In electro-lock cmd GW19056 - Karalis audio 100mA 100mA 600mA GW19051 - Karalis video... -
Page 38: Examples
EXAMPLES Examples are provided below, and 3 of them show systems that can be implemented using available kits. Standard type of system: single family with AESIS outdoor position - Kit GW19401WH/BK The Kit GW19401WH/BK is composed of: 1 VELIA indoor position GW19211WH/BK 1 AESIS outdoor video position GW19001 1 dual-height push-button GW19132 1 power supply GW19302... -
Page 39: Standard Type Of System: Single Family With Karalis Outdoor Position - Kit Gw19410Wh/Bk
Expandability and limits: It is possible to summarises the following limits for a home that can be extended up to a four- family home by adding indoor positions and push-buttons: Max distance of 60 m between the OP and power supply GW19302 (with 2x2.5mm2 wire) Max distance of 100 m between the OP and the last receiver Max 500 m of cable extended between outdoor positions and VELIA indoor positions... - Page 40 Connection diagram: Expandability and limits: It is possible to summarise the following limits for a building that can be extended to up to 108 apartments with the addition of indoor positions and power supplies, additional push- button panels, push-buttons, video distributors and signal repeaters: Max distance of 60 m between the OP and power supply GW19303 (with 2x2.5mm2 wire) Max distance of 100 m between the OP and the last receiver...
-
Page 41: Standard Type Of System: Building With Power Supply Gw19301 And Karalis Flush-Mounting Outdoor Position - Kit Evo Gw19411/Gw19412Wh/Bk
Standard type of system: building with power supply GW19301 and KARALIS flush-mounting outdoor position - Kit EVO GW19411/GW19412WH/BK To implement the 2-wire system for a building, it is possible to use one of the two kits GW19411 or GW19412; these kits also include one indoor position and the difference between the two kits consists in the indoor position: VELIA for GW19411 and SENA for the GW19412. - Page 42 Connection example with 8 apartments (1 indoor position per apartment) : Chorus City Vision - Technical System Manual Page 42...
- Page 43 Expandability and limits: To be able to extend the 2-wire upright line generated by GW19301 as much as possible, the signal must be regenerated via the GW19304, and a maximum of 2 can be added; as a result, three lines are created for a maximum of 108 apartments. It is possible to summarise the following limits using the enclosure GW19301 with two power supply repeaters GW19304 and KARALIS outdoor positions: First line:...
-
Page 44: Standard Type Of System: Building With Power Supply Gw19301, Karalis Outdoor Entryphone Position And Video Selector For An Outdoor Telecamera
• 1 Master and 7 Slaves • 2 Masters and 6 Slaves • 3 Masters and 5 Slaves o For SENA indoor positions (powered by the BUS): Max. of 8 indoor positions per apartment: • 2 Masters and 6 Slaves •... - Page 45 PAL telecamera Externally powered Chorus City Vision - Technical System Manual Page 45...
-
Page 46: Multi-Block Residential System With Karalis Outdoor Positions And Porter's Desk Enclosure
Expandability and limits: To be able to extend the 2-wire upright line generated by GW19301 as much as possible, the signal must be regenerated via the GW19304, and a maximum of 2 can be added; as a result, three lines are created for a maximum of 108 apartments, with the limits shown in the example in the previous paragraph. - Page 47 The wire diagram only shows 3 apartments (1 IP per apartment) + porter NAXOS IP: PORTER'S DESK ENCLOSURE Chorus City Vision - Technical System Manual Page 47...
- Page 48 System expandability and limits of the IP extension backbone: Up to 4 main outdoor positions (KARALIS permits a maximum of 108 calls) Up to 128 secondary outdoor positions Up to 2 porter's desk enclosures for each building (connected on the 2-wire upright of the GW19301) Up to 2 main porter's desk enclosures (connected on the 2-wire upright of the GW19351)
-
Page 49: Multi-Block Residential System With Ip/Lan Extension And Karalis And Antas Outdoor Positions
Multi-block residential system with IP/LAN extension and KARALIS and ANTAS outdoor positions In the IP/LAN extension system, the backbone is implemented via a LAN network, using all the relative advantages. The LAN network interfaces GW19356 are connected to the LAN as well as to the IP extension system power supply GW19351. - Page 50 Multi-wire connection diagram for the IP/LAN extension backbone: Chorus City Vision - Technical System Manual Page 50...
-
Page 51: System With Ip/Lan Extension With Master Ice And Naxos Combi Indoor Positions And Domotics Integration
System with IP/LAN extension with MASTER ICE and NAXOS COMBI indoor positions and domotics integration The use of the Master ICE as the indoor video entryphone position requires a IP/LAN network structure (GW19351+GW19356) and a server (GW19357) to support the City Vision video entryphone functions. - Page 52 Multi-wire connection diagram APARTMENT 1 APARTMENT 2 APARTMENT 3 Chorus City Vision - Technical System Manual Page 52...
-
Page 53: Summary Table - Characteristics And Functions
SUMMARY TABLE - CHARACTERISTICS AND FUNCTIONS The following table summarises the technical characteristics and functions both of the available systems as well as of the main devices (indoor and outdoor positions). Table key: *: 3 MASTER ICE are supported for each VoIP server GW19357; the max. number of MASTER ICE per apartment is always 8 indoor positions ***: the 10 push-buttons can be programmed for intercom functions or auxiliary commands ****: available only in the NAXOS Combi version... - Page 54 • NO on LAN • • • Access control functionality Integration with KNX and KNX Easy domotics • • • Integration with Gewiss burglar alarm • • • Integration with TVCC NO on LAN • • Simultaneous call • •...
-
Page 55: Faq
Frequently asked questions, divided by category. GENERAL How many indoor positions can an apartment have? o Max 8 How many indoor video entryphone positions can there be with an in-out connection? o Max 5 With 2-wire uprights, how many video distributors and amplifiers can be added to the first line before regenerating the signal with GW19304? o 30 GW19306 and 2 GW19311 How many call button keys from outdoor positions can be associated to an indoor... -
Page 56: Standard Or Single Block Systems
STANDARD or SINGLE BLOCK SYSTEMS In simple systems, it is possible to avoid using system power supplies GW19301/GW19351? o Yes, in that case an additional power supply GW19302/GW19303 is used and the distribution of the audio/video signal to the indoor positions is managed directly by the outdoor positions. - Page 57 Chorus City Vision - Technical System Manual Page 57...
