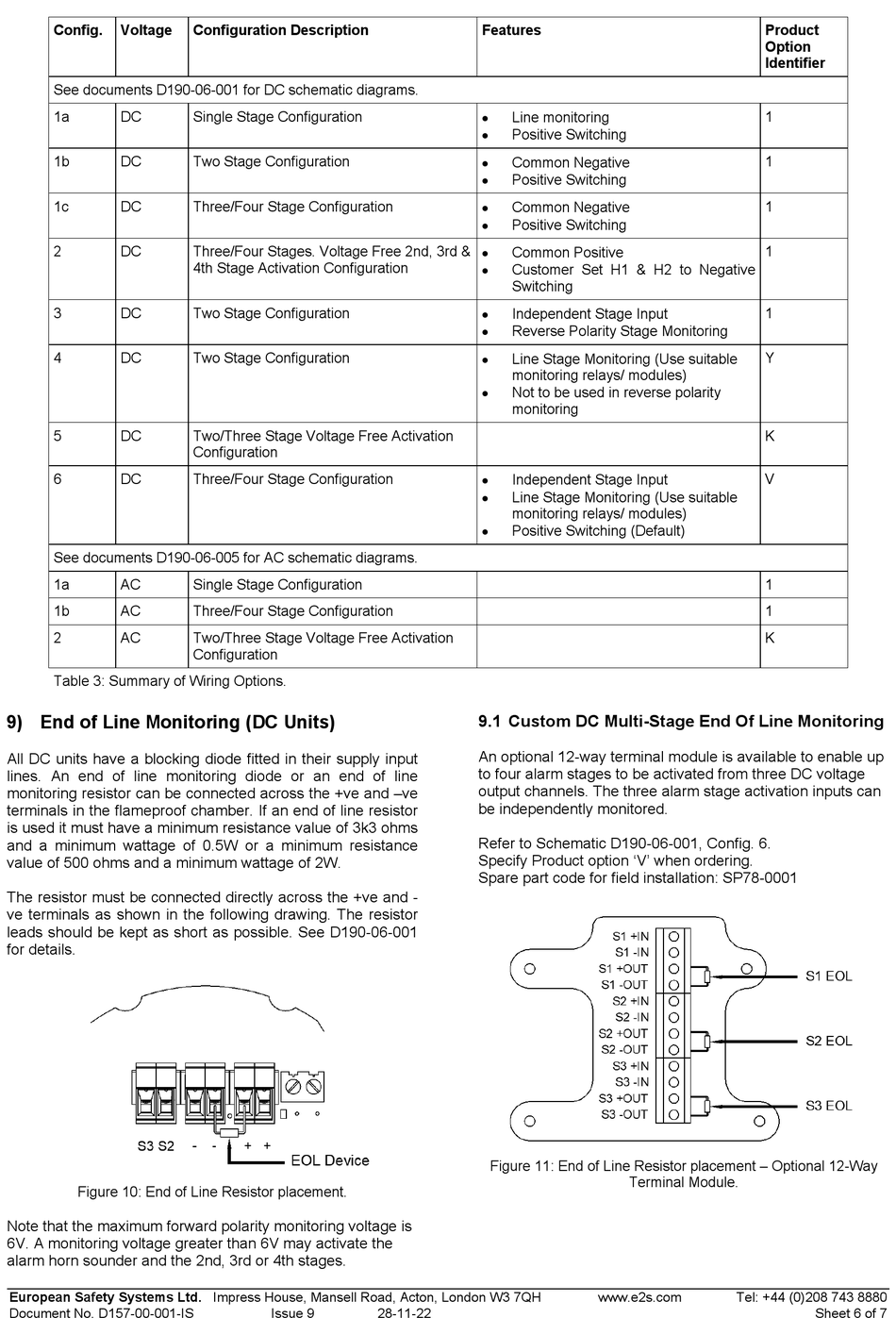

E2S GNExS1 Series Instruction Manual page 6

Config. Voltage
See documents D190-06-001 for DC schematic diagrams.
1a DC
1b DC
1c DC
2 DC
3 DC
4 DC
5 DC
6 DC
See documents D190-06-005 for AC schematic diagrams.
1a AC
1b AC
2 AC
Table 3: Summary of Wiring Options.
9) End of Line Monitoring (DC Units)
All DC units have a blocking diode fitted in their supply input
lines. An end of line monitoring diode or an end of line
monitoring resistor can be connected across the +ve and –ve
terminals in the flameproof chamber. If an end of line resistor
is used it must have a minimum resistance value of 3k3 ohms
and a minimum wattage of 0.5W or a minimum resistance
value of 500 ohms and a minimum wattage of 2W.
The resistor must be connected directly across the +ve and -
ve terminals as shown in the following drawing. The resistor
leads should be kept as short as possible. See D190-06-001
for details.
Figure 10: End of Line Resistor placement.
Note that the maximum forward polarity monitoring voltage is
6V. A monitoring voltage greater than 6V may activate the
alarm horn sounder and the 2nd, 3rd or 4th stages.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D157-00-001-IS
Configuration Description
Single Stage Configuration
Two Stage Configuration
Three/Four Stage Configuration
Three/Four Stages. Voltage Free 2nd, 3rd &
4th Stage Activation Configuration
Two Stage Configuration
Two Stage Configuration
Two/Three Stage Voltage Free Activation
Configuration
Three/Four Stage Configuration
Single Stage Configuration
Three/Four Stage Configuration
Two/Three Stage Voltage Free Activation
Configuration
Issue 9
Features

Line monitoring

Positive Switching

Common Negative

Positive Switching

Common Negative

Positive Switching

Common Positive

Customer Set H1 & H2 to Negative
Switching

Independent Stage Input

Reverse Polarity Stage Monitoring

Line Stage Monitoring (Use suitable
monitoring relays/ modules)

Not to be used in reverse polarity
monitoring

Independent Stage Input

Line Stage Monitoring (Use suitable
monitoring relays/ modules)

Positive Switching (Default)
9.1 Custom DC Multi-Stage End Of Line Monitoring
An optional 12-way terminal module is available to enable up
to four alarm stages to be activated from three DC voltage
output channels. The three alarm stage activation inputs can
be independently monitored.
Refer to Schematic D190-06-001, Config. 6.
Specify Product option 'V' when ordering.
Spare part code for field installation: SP78-0001
Figure 11: End of Line Resistor placement – Optional 12-Way
28-11-22
Product
Option
Identifier
1
1
1
1
1
Y
K
V
1
1
K
Terminal Module.
www.e2s.com Tel: +44 (0)208 743 8880
Sheet 6 of 7
