INSTRUCTION MANUAL (ATEX / IECEx)

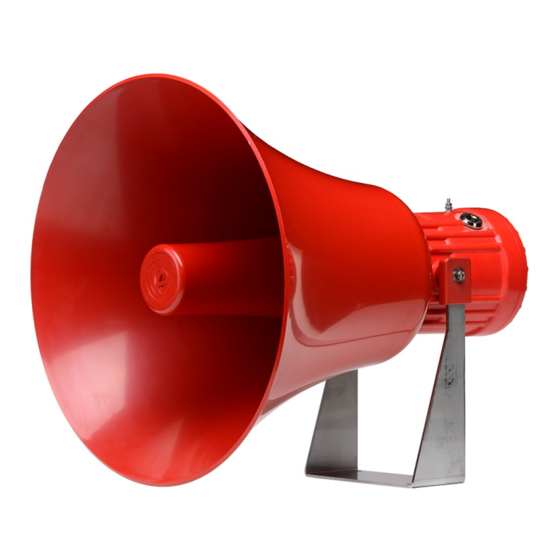

GNExS2
Alarm Horn Sounder
For use in Flammable Gas Atmospheres
1) Product Table
Unit Type Code
Input Voltage
GNExS2FDC024
GNExS2FDC048
GNExS2FAC230
GNExS2HDC024
GNExS2HDC048
GNExS2HAC230
*Max = Tone 4
†
Nom. = Tone 44
The table shows the input current taken by the various sounders.
Supply voltage variation of +/-10% outside the voltage range is permissible.
The current levels shown above are for the 440Hz Continuous tone @ nominal input voltage at P2 and P3 power setting.
Nominal current at nominal voltage.
Max rated current at worst case supply voltage.
Table 1: Electrical Ratings.
Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable size,
length and quantity of beacons on each circuit.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D157-00-101-IS
GNExS2F
Nominal
Voltage Range
12Vdc
10-30Vdc
24Vdc
48Vdc
38-60Vdc
115Vac
100-260Vac 50/60Hz
230ac
12Vdc
10-30Vdc
24Vdc
48Vdc
38-60Vdc
115Vac
100-260Vac 50/60Hz
230Vac
Issue 1
GNExS2H
Nominal
Input Current
P2
P3
289mA
356mA
324mA 740mA
324mA
740mA
324mA 740mA
195mA
391mA
125mA
282mA
138mA 325mA
78mA
167mA
289mA
356mA
324mA 740mA
324mA
740mA
324mA 740mA
195mA
391mA
125mA
282mA
138mA 325mA
78mA
167mA
02-11-21
Sound
Max.
Pressure Level
Current
P2, dB(A)
P2
P3
Max*
Nom
120
120
120
124
124
124
www.e2s.com
Tel: +44 (0)208 743 8880
Sound
Pressure Level
P3, dB(A)
.†
.†
Max*
Nom
115
123
118
115
123
118
115
123
118
119
127
122
119
127
122
119
127
122
Sheet 1 of 7
